Before us is a robust Universal barometer for the use of mariners, agriculturists and horticulturists, made in England around 1900. Its exact manufacturing attribution is of particular interest: the barometer itself bears no factory maker’s mark, yet this type has long been associated in specialist literature with the London firm Dollond. The dial is signed A. Franks Ltd., Opticians, Manchester**, and the available evidence suggests that this well-known Manchester optical firm should primarily be regarded as the of the instrument rather than its maker. This explains why the name A. Franks Ltd. occupies such a prominent position on the dial, while the actual origin of the barometer has to be reconstructed through comparison with surviving examples, the construction of its movement, and specialist sources.
n/a
aneroid capsule tensioned on a C-spring
brass, cast iron, glass, porcelain, steel
There are no logos, factory stamps or other direct indications of the maker on the dial or elsewhere on the instrument. Nevertheless, several specialist sources attribute barometers of this type to Dollond. The earliest printed source used here is Edwin Banfield’s Barometers: Aneroid and Barographs (Trowbridge: Baros Books, 1985); the same attribution later appears in Philip R. Collins, Aneroid Barometers and Their Restoration (Trowbridge: Baros Books, 1998).
Particularly valuable comparative material is provided by surviving instruments documented in detail by the highly professional and technically informative resource Vavasseur Antiques. Several closely related barometers associated with Dollond are recorded there: The Royal Standard, dated to about 1880; two versions of The Life-Buoy, dating to about 1885; and , dated to about 1890. Especially relevant are and . It is important to note, however, that the instruments shown there, like the present example, do not themselves carry a direct indication of Dollond as maker; in the case of , Vavasseur Antiques explicitly bases the attribution on the information given by Edwin Banfield.
Banfield also draws attention to one unusual feature of the dial of The Universal: instead of the extremely common English aneroid weather term Change or Changeable, the upper part of the scale uses the word Unsettled. This is indeed a comparatively uncommon wording on British barometers, although it is not unique. An interesting parallel example is present in the barometers.info collection on another Victorian aneroid with a porcelain dial. The similarity of certain elements of the scale and dial layout is noteworthy, although it is not in itself evidence of a common maker.
Vavasseur Antiques proposes a broader interpretation of these instruments, according to which Dollond deliberately created a group of “novelty barometers” — thematic or unusually presented barometers intended as a commercial counterpart to the extremely successful instruments supplied for the Shipwrecked Mariners Society. This group includes The Royal Standard, The Life-Buoy and The Universal. The hypothesis is entirely plausible and accords well with the physical characteristics of the surviving examples. It should nevertheless be treated with some caution: no accessible Dollond catalogue, advertisement, price list, account book, patent or other document from the 1880s–1890s has yet been found in which Dollond itself groups these three models together as a formal series or explicitly describes them in such terms. The existence of a closely related group of instruments is therefore supported by surviving objects, while the interpretation of that group as a deliberately conceived Dollond marketing series remains a well-argued but as yet undocumented reconstruction.
The structural relationship between the known examples is nevertheless clear. They share the same fundamental architecture: a heavy drum-form cast-iron case, two integral mounting lugs for fixing to a bulkhead or wall, similar dimensions, comparable dial layouts, barometric scales in inches of mercury, and characteristic explanatory forecasting inscriptions. The principal differences lie in the decoration of the dials and in the movements.
It is precisely in this respect that the present barometer is especially interesting. Its movement, unlike those of the examples documented by Vavasseur Antiques, was without doubt made by Short & Mason. This does not, however, contradict a possible association with Dollond. In the British scientific-instrument trade of the late nineteenth century, it was perfectly normal for prominent opticians and retail houses to order movements from specialist manufacturers, install them in cases, and sell the completed instruments under their own names or without any explicit indication of the actual movement maker. Short & Mason could certainly have supplied movements to Dollond, and this appears to be the most likely arrangement here. Moreover, among the instruments documented by Vavasseur Antiques and associated with Dollond are movements whose construction suggests other specialist makers, including F. Darton and possibly . The presence of a Short & Mason movement in this example therefore does not invalidate the Dollond attribution of the type; rather, it suggests that production of these barometers may have relied on mechanisms supplied by several specialist manufacturers.
The wider context of Dollond’s activities makes such an attribution still more plausible. The association of Dollond & Co. with the large-scale supply of aneroid barometers to Britain’s maritime community is well documented. The official history of the Shipwrecked Fishermen and Mariners’ Royal Benevolent Society records that in 1882 the Society received , intended either as awards or for temporary loan to fishermen and fishing stations. Almost simultaneously, Dollond participated in another major programme. A primary source — journal of 1 August 1882 — reports that the National Life-Boat Institution selected two firms, and , initially ordering fifty from each. These instruments were intended for the owners and skippers of decked fishing vessels and were offered at the subsidised price of .
Thus, by 1882 Dollond was simultaneously involved in at least two separate schemes supplying barometers to the British maritime community — through the Shipwrecked Fishermen and Mariners’ Royal Benevolent Society and through the National Life-Boat Institution, later the RNLI. The firm’s connection with maritime rescue infrastructure was in fact older still. The literature of the International Exhibition of 1862 mentions a lifeboat telescope made by Dollond, alongside discussion of the barometers with which the National Lifeboat Institution supplied its stations. The 1882 text itself notes that the Institution had already been supplying its stations with barometers for more than twenty years.
Taken together, these facts support a cautious but fairly strong conclusion. The Universal Barometer does indeed belong to a small group of closely related late-Victorian aneroids that specialist literature and collecting tradition associate with Dollond. In the case of the present instrument, however, it is necessary to distinguish between the , the , and the . The type and overall construction link the instrument convincingly with the Dollond group, while the movement itself was made by , and the dial bears the name of the retailer . The most accurate attribution at present is therefore: . In the absence of direct factory documentation, the precise role of each firm — design of the model, manufacture of the movement, assembly of the complete instrument, and final retail sale — cannot yet be established with certainty.

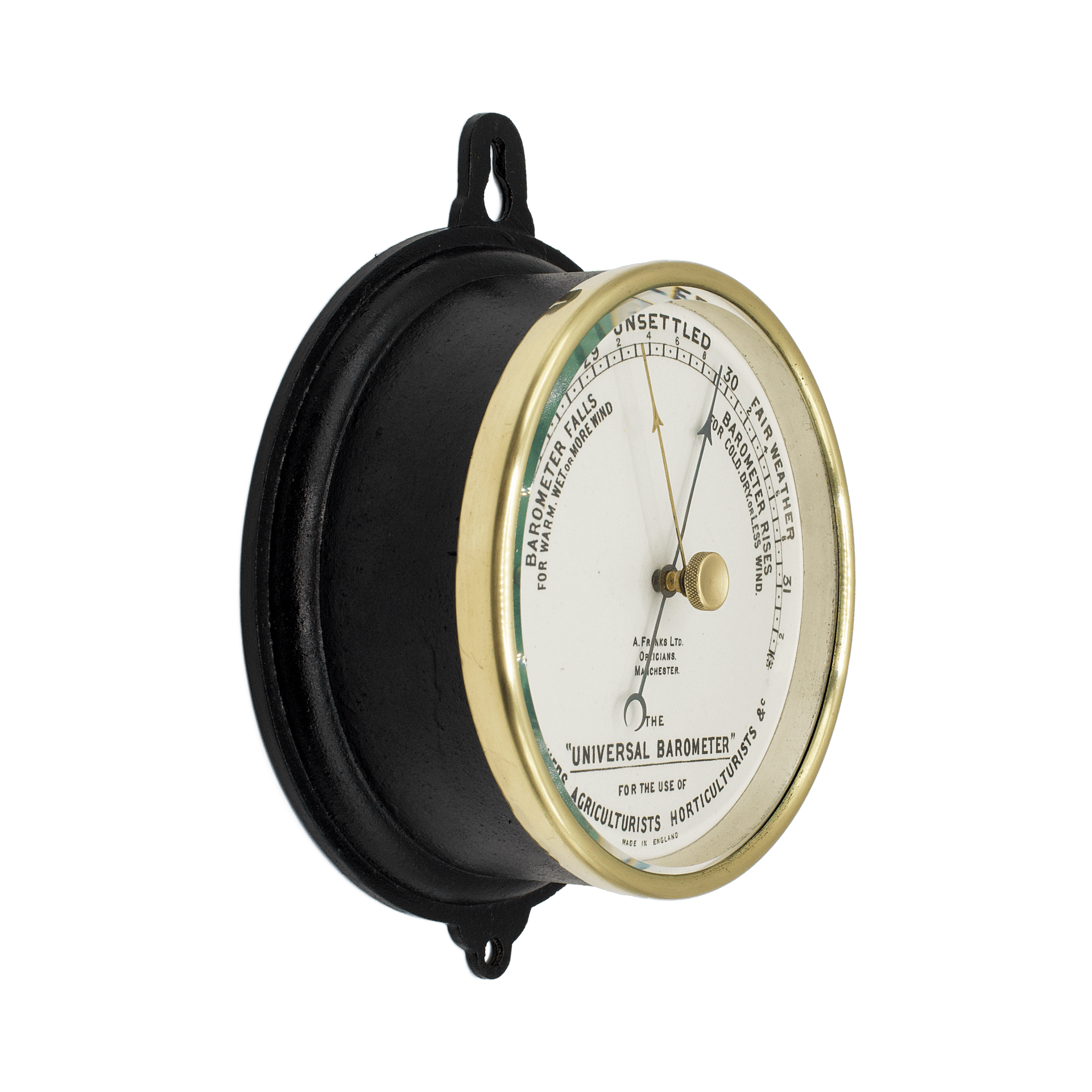

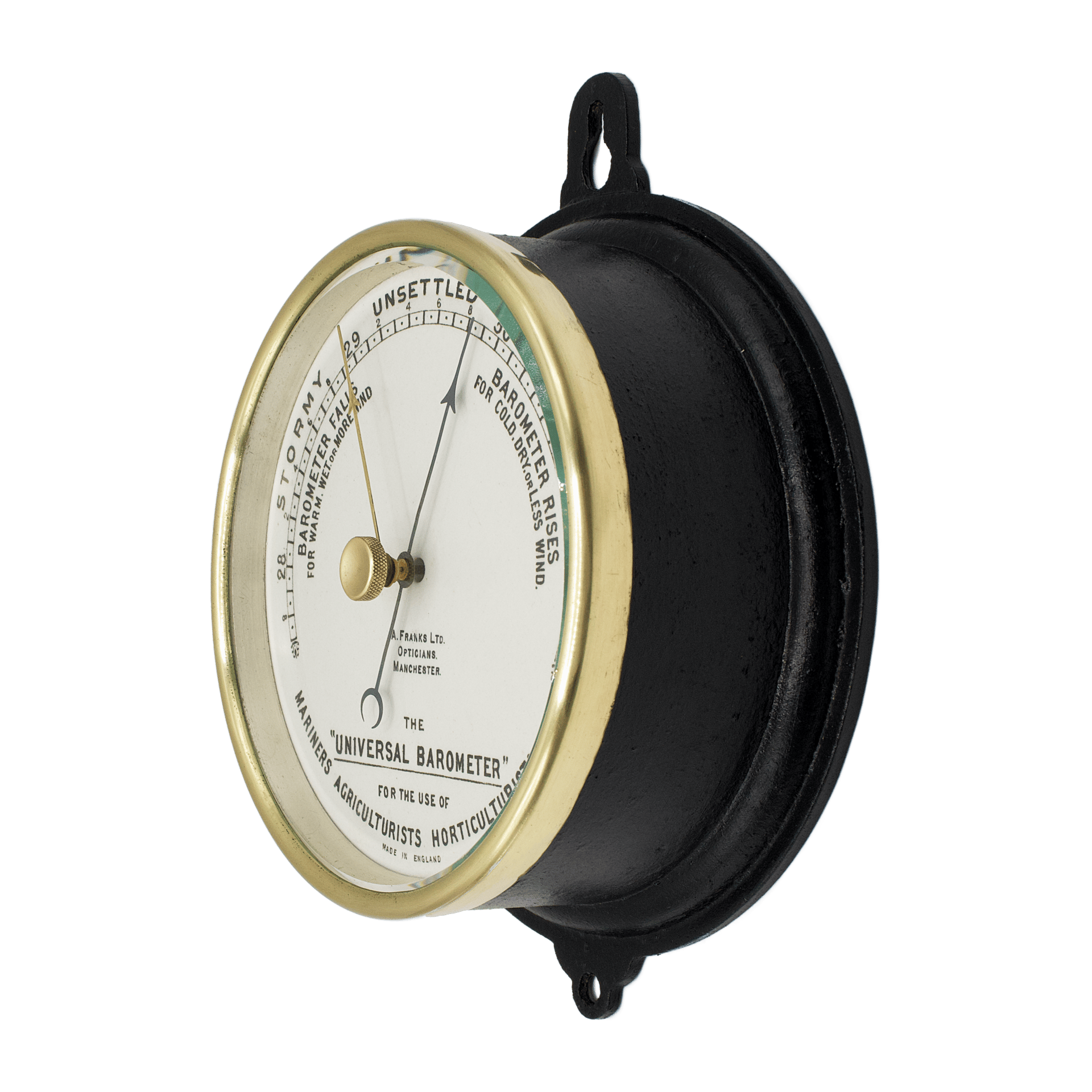

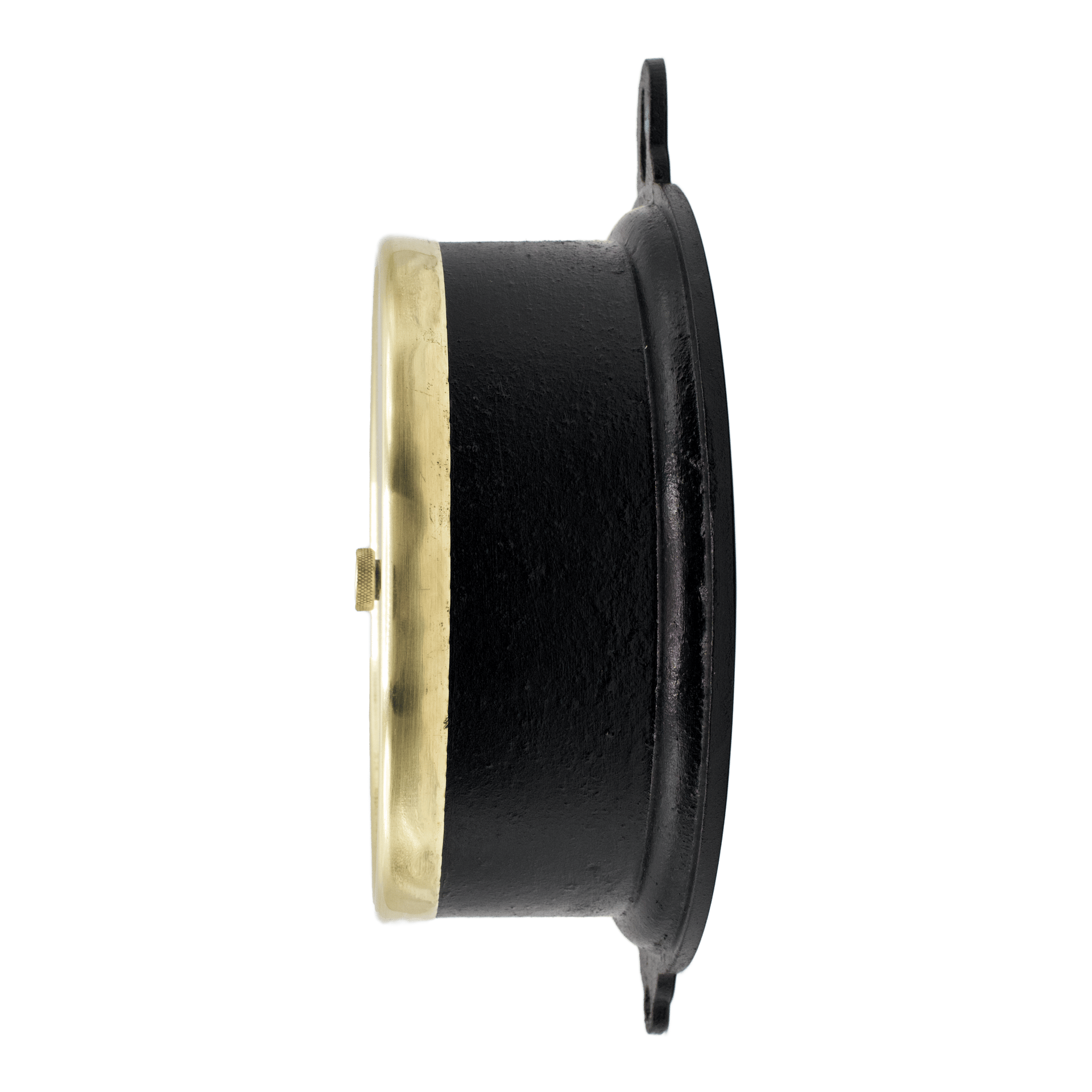

The barometer is housed in an exceptionally robust cylindrical, or drum-form, cast-iron case, entirely governed by the practical purpose of the instrument. Unlike the many domestic aneroids of the late nineteenth century housed in carved wooden or decorative metal cases, this example is devoid of ornament: the massive black case takes the form of a deep cylinder with an enlarged rear flange.
Two mounting lugs are cast integrally into the upper and lower parts of the flange, exactly at the 12 and 6 o’clock positions. The upper lug has a characteristic elongated keyhole-shaped opening, allowing the instrument to be hung on a screw or stud, while the lower lug has a circular hole for additional fixing. This arrangement allowed the barometer to be secured firmly to a vertical surface and was particularly well suited to use aboard a vessel, in an agricultural building, workshop or other environment where the instrument might be exposed to vibration or accidental knocks.

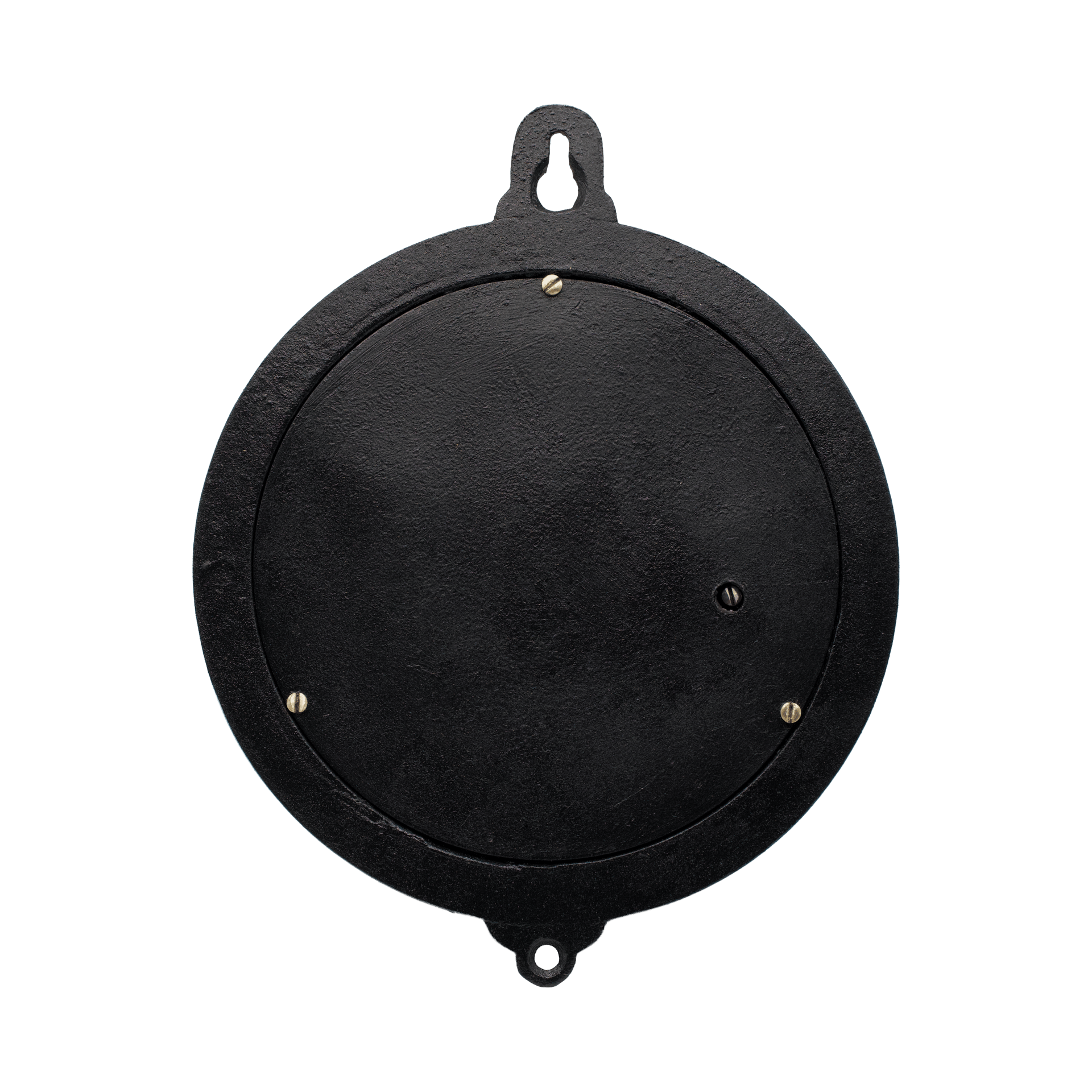

The rear is closed by a circular metal cover recessed into the body and secured by screws. A separate small opening provides access to the movement adjustment without the need to dismantle the entire instrument.
At the front, the case carries a broad polished brass bezel. Its relatively simple profile emphasises the utilitarian character of the barometer while providing the only strong decorative contrast with the black cast-iron body. The bezel retains a thick flat mineral-glass crystal with a bevelled edge, beneath which lies the porcelain dial.
The spindle of the manually adjustable trend indicator passes through the centre of the glass. Externally, it terminates in a fairly large knurled brass knob, allowing the auxiliary pointer to be set easily even with wet or roughened fingers. By turning this knob, the user could align the slender brass pointer with the current reading of the main hand and, after a period of time, determine at a glance whether the pressure was rising or falling. Thus, despite its outward simplicity, the instrument allowed observation not only of absolute atmospheric pressure but also of its trend, often of greater practical importance for weather forecasting than the instantaneous reading itself.

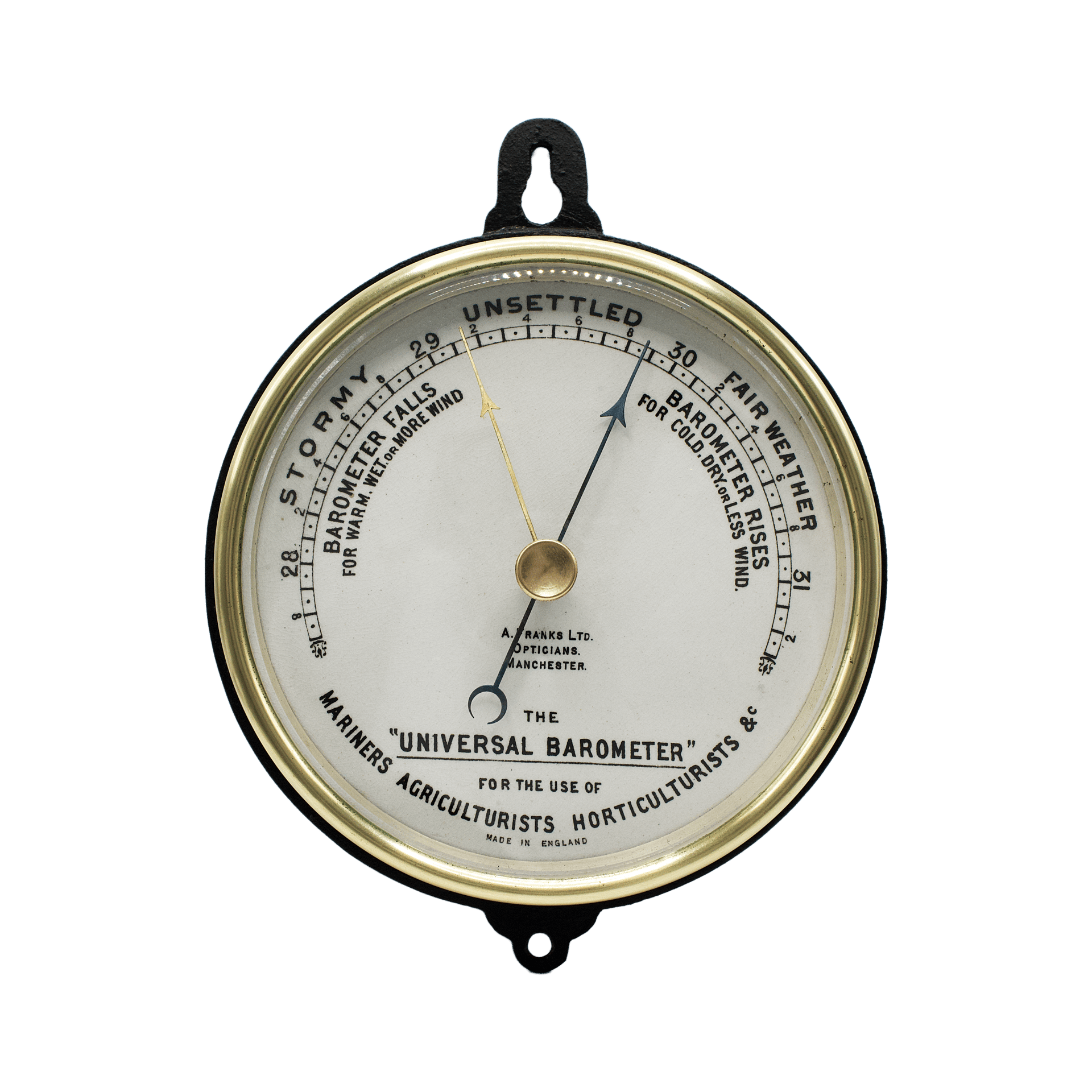

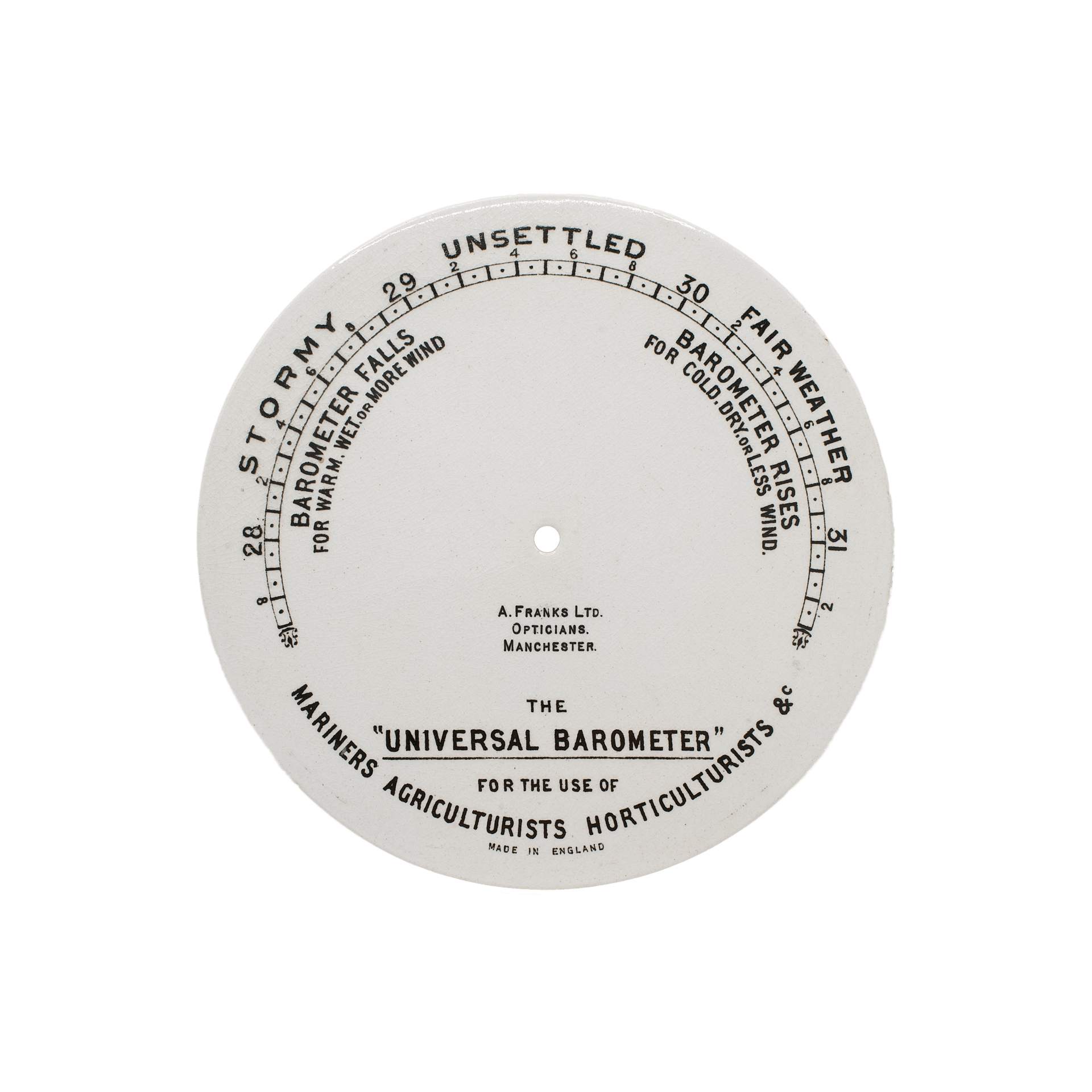

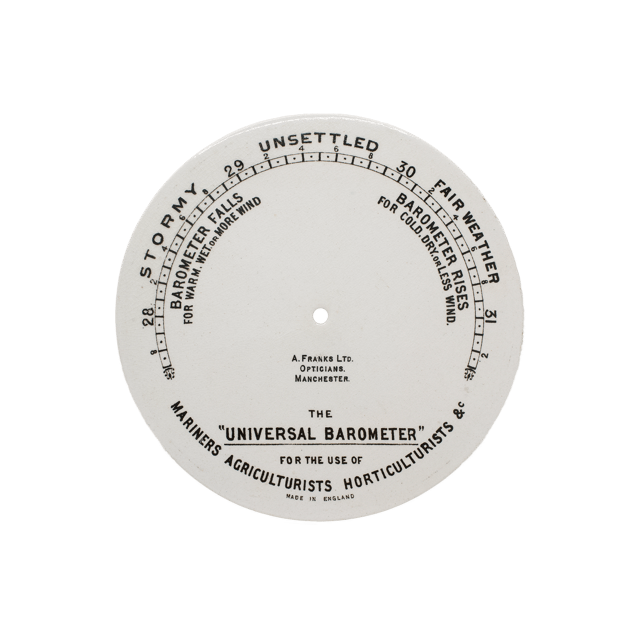

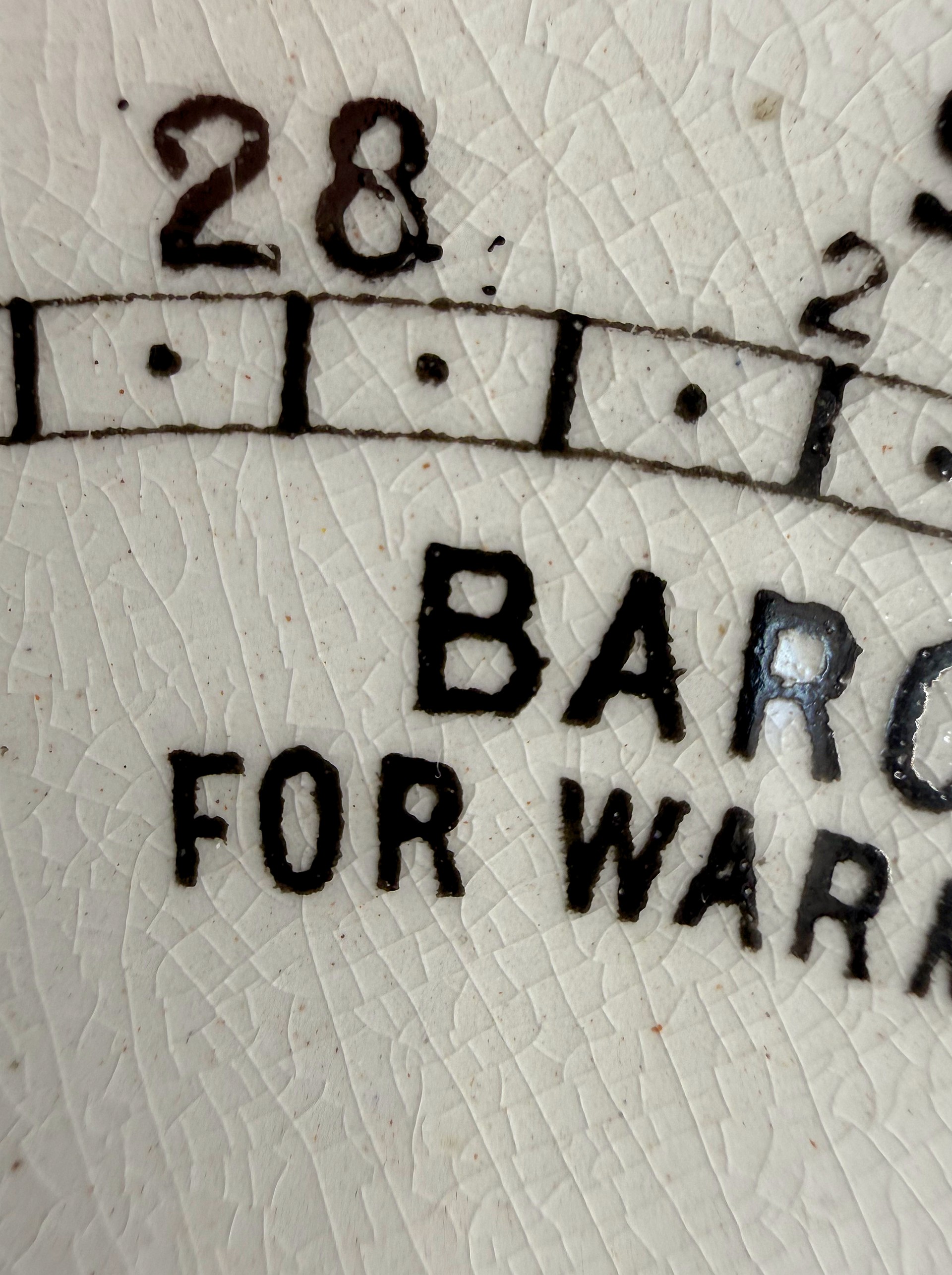

The dial is made of white glazed porcelain. Its surface retains characteristic age-related craquelure — a fine network of hairline cracks in the glaze that has developed naturally over more than a century. The black transfer-printed markings remain clearly legible and form an exceptionally functional, almost graphic composition.
The principal barometric scale is arranged in a broad arc across the upper half of the dial. It is graduated in inches of mercury and covers a range from 28 to 31 inHg. Each inch is divided into twentieths, giving a smallest division of 0.05 inch of mercury.
Along the outer edge of the scale are only three verbal weather indications: STORMY, UNSETTLED and FAIR WEATHER. Along the inner side of the scale are the much more informative forecasting rules in the tradition of Admiral Robert FitzRoy, referring respectively to a falling and rising barometer. Such wording reflects one of the central principles of FitzRoy’s practical meteorology: a barometer should not be read as a simplistic “rain–fine” indicator, but rather through observation of the direction and character of pressure change in conjunction with wind, temperature and prevailing weather conditions.
In the lower central part of the dial, the retailer’s name appears in small lettering:
A. FRANKS LTD.
OPTICIANS.
MANCHESTER.
Below this is the principal designation of the instrument, occupying almost the entire lower arc of the dial:
THE
“UNIVERSAL BAROMETER”
FOR THE USE OF
MARINERS AGRICULTURISTS HORTICULTURISTS &c
The wording neatly conveys the commercial concept behind the model. The instrument was presented not merely as a domestic barometer, but as a universal practical meteorological instrument intended for occupational groups whose activities depended directly on weather conditions and their changes: mariners, agriculturists and horticulturists.
At the very bottom is the concise inscription MADE IN ENGLAND.
The principal indicating hand is made of heat-blued steel. Its deep blue-black tone contrasts sharply with the white porcelain dial and the golden brass trend pointer. The hand has a long slender body, a stylised arrow-shaped tip, and an open crescent-shaped counterweight on the opposite side of the arbor.

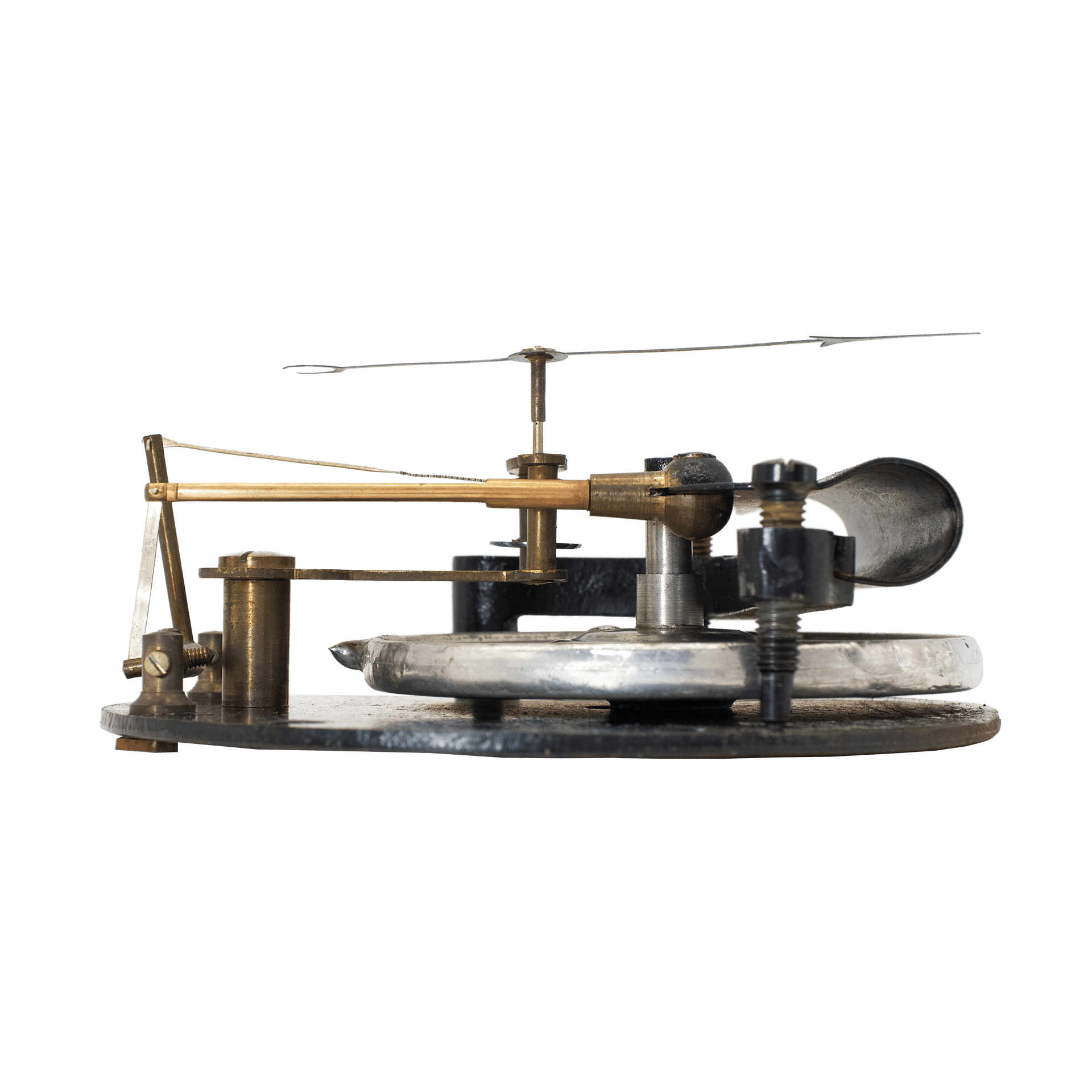

The barometer is driven by a conventional aneroid movement made by Short & Mason, constructed according to a classic arrangement.

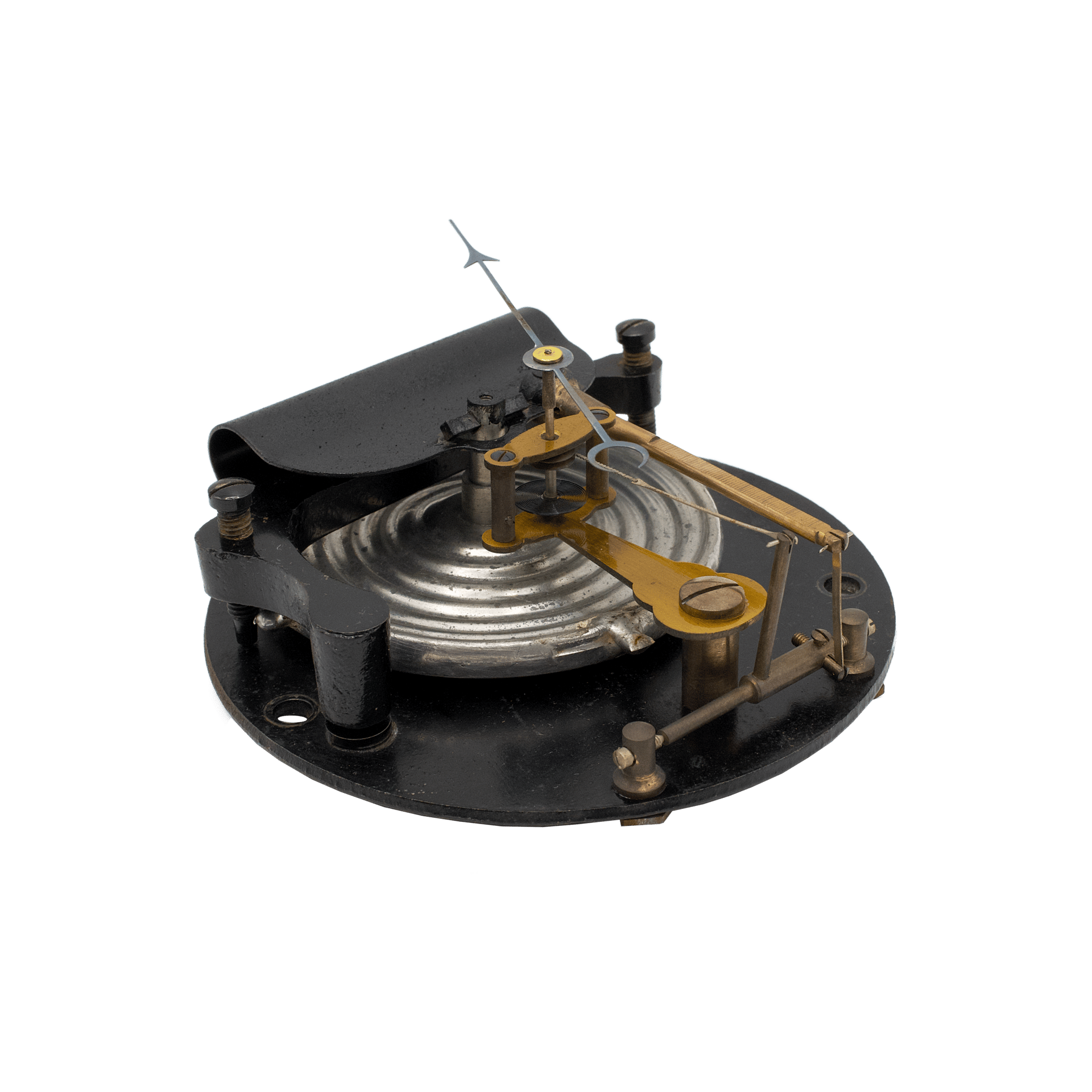

The sensitive element is a large circular corrugated aneroid capsule, from which the air was evacuated during manufacture. Changes in atmospheric pressure cause extremely small vertical movements of its elastic diaphragms: as pressure rises the capsule is compressed, and as pressure falls it expands. These movements are far too small to move the hand directly over a large dial, so the transmitting leverwork acts as a system of successive mechanical amplification.

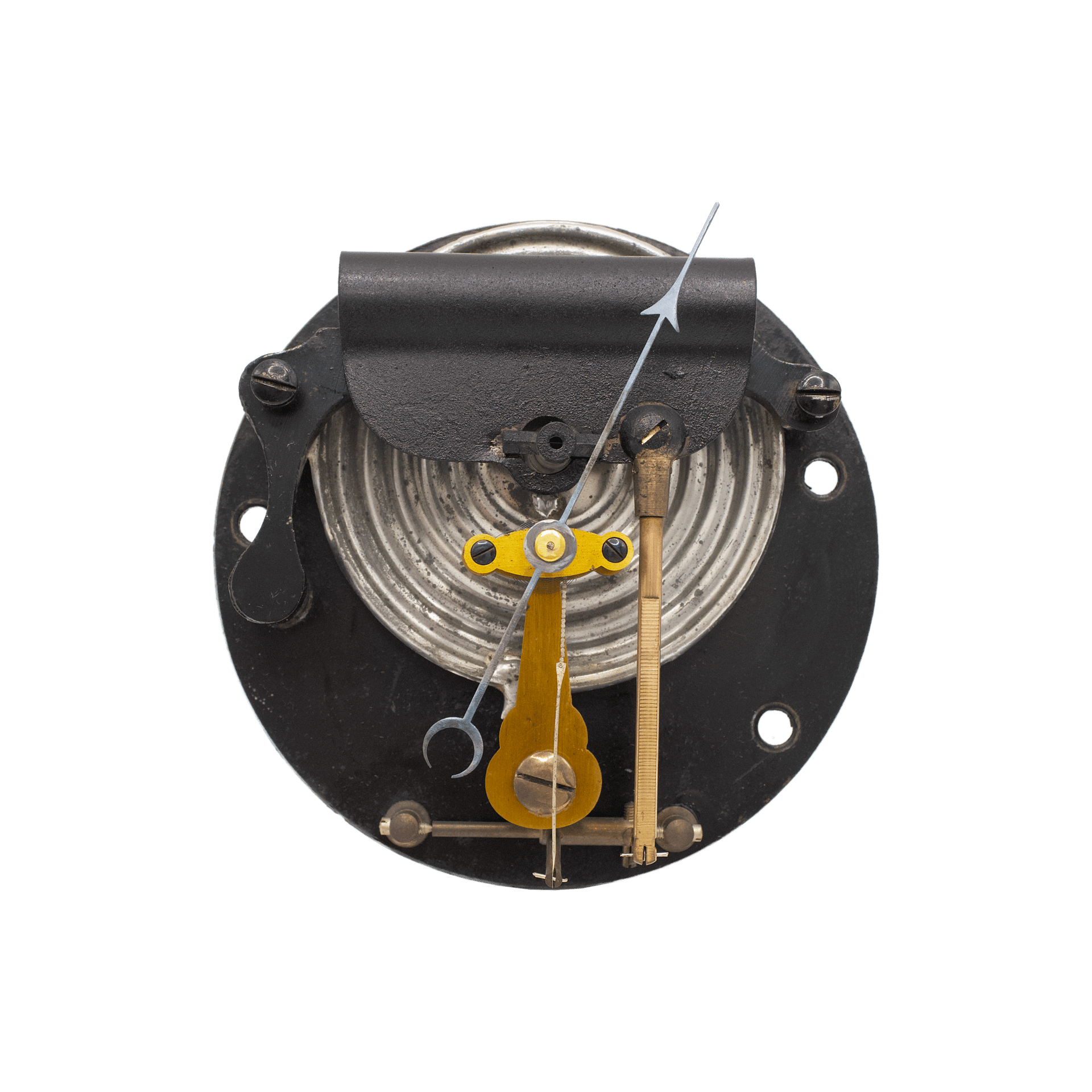

The upper diaphragm of the capsule is loaded by a powerful flat steel C-spring. The lower end of this spring is secured to a massive cast-iron crosspiece positioned above the capsule, while its opposite end interacts with the transmission system. The spring provides the necessary preload on the sensitive element, counterbalancing the approximately one-hundred-kilometre column of atmosphere above it, while at the same time converting the minute movement of the capsule into motion of the main lever.
From the upper end of the spring extends a long brass main lever. Through a fine vertical connecting rod, it is pivotally linked to the angular lever of the main shaft, which turns in trunnion bearings. In this way, the almost imperceptible linear movement of the diaphragm and C-spring is first converted into the rocking motion of the long lever and then into rotation of the intermediate shaft.
From the vertical arm of the angular lever, a fine fusee chain runs to the pointer arbor. It passes around a small drum on the hand spindle and converts the further movement of the mechanism into rotation of the arbor. Thanks to the considerable mechanical ratio of the system, the minute change in the height of the aneroid capsule ultimately produces a clearly visible movement of the main hand across the dial.
The return force is provided by a fine spiral spring, which maintains constant tension in the chain and eliminates backlash in the kinematic train. The arrangement is comparatively simple, reliable, readily adjustable, and sufficiently sensitive for meteorological observation.
The entire movement is mounted on a heavy circular cast-iron plate, which is screwed to the rear cover of the instrument case.
This Universal Barometer is a particularly interesting example of the way in which, towards the end of the Victorian era, the simple aneroid evolved from a domestic weather indicator into an explicitly practical professional instrument. Its heavy cast-iron case, rigid mounting system, large and easily readable porcelain dial and complete absence of decorative embellishment all demonstrate that visual effect was subordinated here to function.
At the same time, it is the design of the dial that gives the model far more character than an ordinary industrial aneroid. The title “The Universal Barometer”, the direct appeal to Mariners, Agriculturists and Horticulturists, the concise three-part weather scale, and the forecasting maxims in the FitzRoy tradition together turn the instrument into a kind of compact guide to practical meteorology, permanently displayed before its owner.
No less interesting is the history of its origin. The type has traditionally been associated with Dollond, one of the most important British optical and scientific-instrument firms, while this particular example was retailed by the Manchester company A. Franks Ltd. and fitted with a movement by Short & Mason. This combination is an excellent illustration of the structure of the British scientific-instrument trade around the turn of the twentieth century, when the design of a model, the manufacture of its movement, the assembly of the complete instrument, and its retail sale could all be undertaken by different firms.
Thus, this is not simply a rare barometer of around 1900, but an object in which several strands of British scientific-instrument history converge: the Vidié aneroid tradition, the specialist manufacture of Short & Mason, the retail network of A. Franks, and, probably, one of the unusual thematic models distributed by Dollond. It is precisely this combination of technical simplicity, functional design, maritime and agricultural purpose, and a manufacturing history that is still not fully resolved that makes The Universal Barometer one of the more intriguing British aneroids of its period.
