This Marine Aneroid Barometer, manufactured circa 1960 by the renowned Japanese company Yanagi Keiki Co., Ltd., Tokyo, is a fine example of a high-quality marine meteorological instrument from the post-war golden age of Japanese precision engineering. By this period, Japanese industry had already attained an exceptionally high standard of mechanical craftsmanship, and Yanagi Keiki instruments were widely employed aboard merchant ships, fishing vessels, and scientific research ships, owing to their reliability, durability, and remarkable measuring accuracy.

The barometer is housed in a massive circular brass case designed specifically for operation in harsh marine environments. The entire construction reflects an exceptionally high standard of workmanship: every component has been manufactured with great precision, while all visible surfaces have been carefully machined and neatly finished. Even those parts that remain concealed after assembly exhibit the same high quality of mechanical finishing, demonstrating the traditional philosophy behind professional marine instruments, where structural integrity and long-term reliability were considered far more important than economy of materials or manufacturing effort.

Particular attention should be paid to the mounting system. The case is fitted with three substantial mounting lugs incorporating screw holes, allowing the instrument to be securely fastened to a ship’s bulkhead. Such an arrangement prevents any movement of the barometer under continuous vibration, rolling, pitching, and impact loads inevitably encountered at sea.

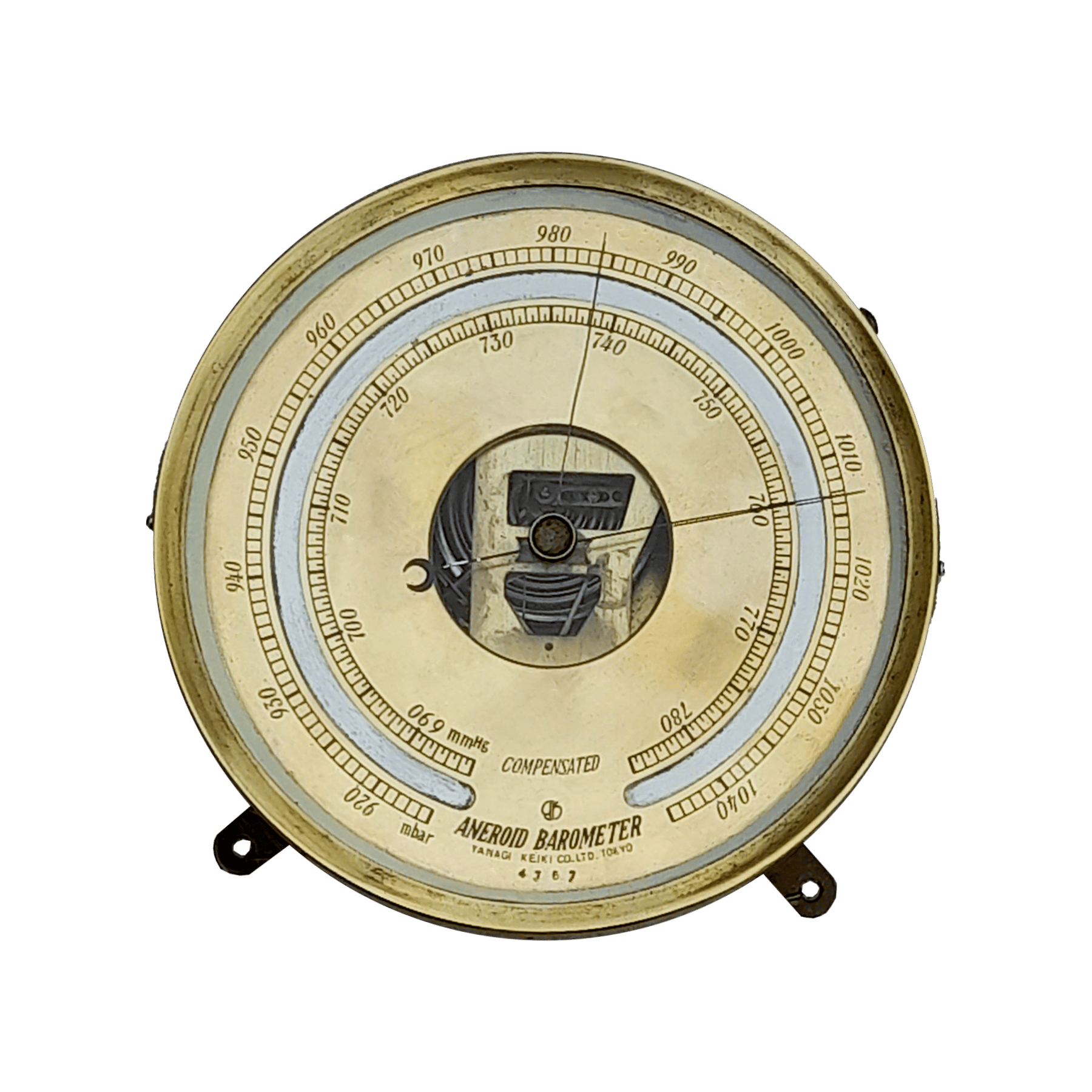

The open metal dial features the clean, functional layout typical of professional navigational instruments. The outer scale is graduated in millibars, covering a range from 920 to 1040 mbar, while the inner scale is graduated in millimetres of mercury, spanning 690 to 780 mmHg. Between the two scales lies a broad mirrored reflector ring designed to eliminate parallax error. By aligning the reflection of the pointer with the pointer itself, the observer automatically assumes the correct viewing position, ensuring the highest possible reading accuracy regardless of the viewing angle.

The central portion of the dial has been deliberately left open, exposing a substantial part of the movement—an arrangement that serves both practical and aesthetic purposes. Through this circular aperture, one can observe the operation of the transmission mechanism and the movement of its components as atmospheric pressure changes, transforming the instrument into not only a precision measuring device but also an elegant demonstration of fine mechanical engineering.

The entire movement is mounted inside the case at three points using specially designed spring retainers, which both secure the mechanism firmly in position and protect it from internal stresses caused by temperature fluctuations and vibration. This mounting arrangement allows the instrument to retain its calibration even after prolonged operation under demanding conditions.

The sensing element consists of two evacuated aneroid capsules manufactured from nickel silver and joined together into a single assembly. Employing a pair of interconnected capsules increases the effective movement of the sensing element and improves measurement accuracy compared with instruments using a single aneroid capsule.

The capsule assembly is connected to the principal operating lever, which carries an adjustable sliding weight acting as a counterbalance. This balancing arrangement reduces the influence of the moving parts’ own weight upon the sensitive element, lowers the system’s inertia, and promotes a more stable transmission of even the smallest pressure variations.

As atmospheric pressure changes, the aneroid capsules expand or contract accordingly. Their motion is transmitted via a connecting rod to a series of progressively acting levers, which amplify the extremely small displacement of the capsules many times over. The movement is then conveyed to a rack-and-pinion transmission, where a toothed rack drives a pinion gear, converting the linear displacement into the smooth rotary motion of the pointer spindle, thereby providing an accurate indication of atmospheric pressure on the dial.

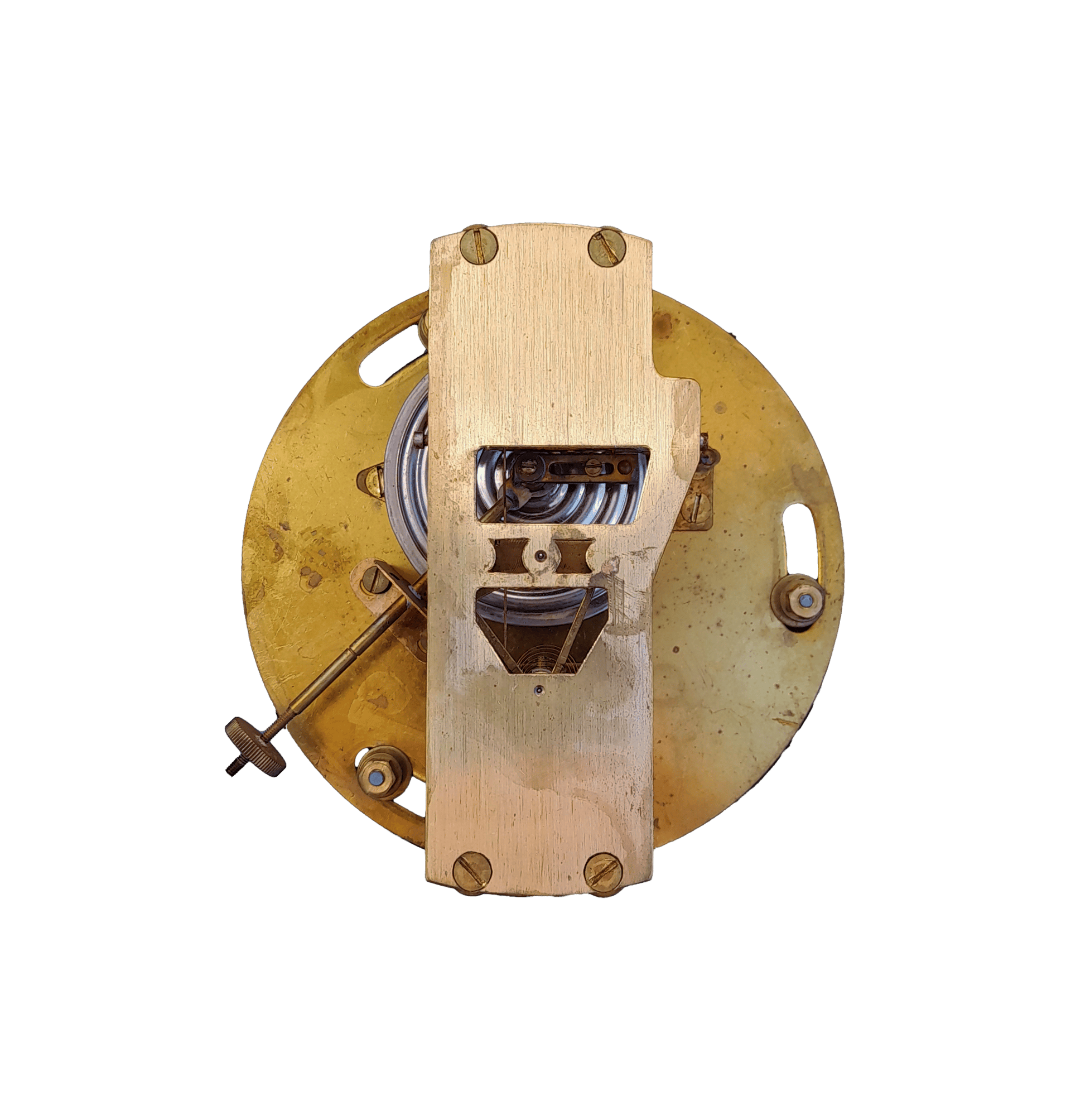

Calibration of the barometer is accomplished in an unusual manner—by rotating the entire measuring movement relative to the case. For this purpose, the rear of the instrument is provided with a triangular service aperture giving access to a toothed adjustment ring. By rotating this ring with a special tool, the entire movement, together with the dial, can be turned relative to the stationary pointer, allowing precise calibration against a reference barometer without disturbing the internal measuring mechanism itself.

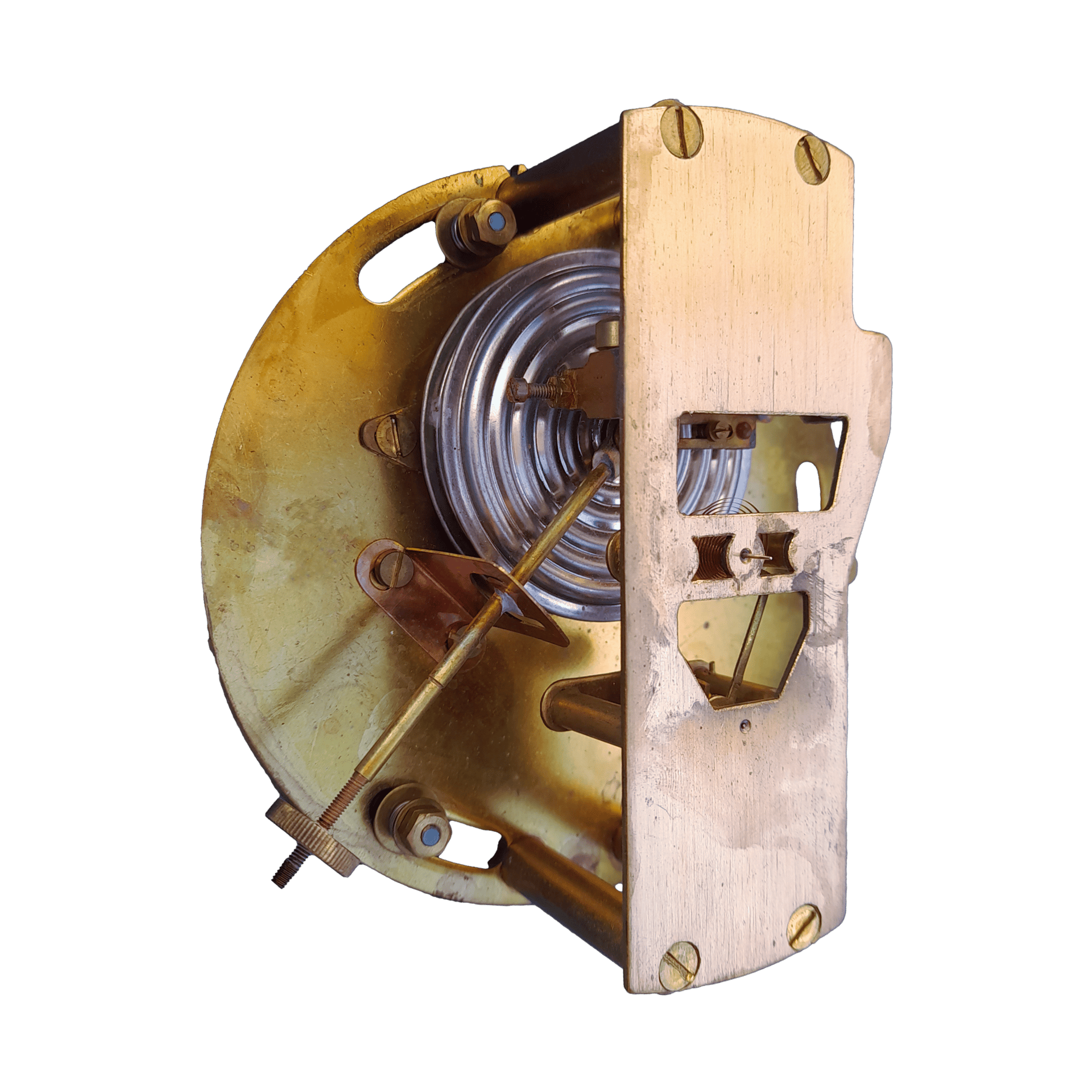

One particularly intriguing feature of the movement is a long rigid brass rod attached to the upper diaphragm of the aneroid capsule assembly. At its outer end is a heavy knurled brass weight that can be moved along the threaded portion of the rod. Structurally, this arrangement closely resembles a balancing lever: by shifting the weight along the rod, the centre of gravity of the assembly changes, thereby altering the moment acting about its pivot. Such a system could compensate for the weight of the moving components, reduce the influence of gravity on the sensitive mechanism, and maintain uniform sensitivity regardless of the instrument’s orientation.

This would be especially advantageous aboard a ship, where the barometer is continuously subjected to pitching, rolling, engine vibration, and sudden accelerations caused by waves. Proper adjustment of the balancing weight could significantly reduce the influence of these dynamic forces on the measuring mechanism.

Another possible interpretation is that this assembly functions as a gravity compensator. The instrument is designed to operate in a perfectly vertical position, yet even a slight inclination of only two or three degrees introduces errors caused by the weight of the moving parts. By repositioning the sliding weight along the lever, it may be possible to compensate almost entirely for these gravitational effects, thereby preserving the instrument’s accuracy despite small installation errors or changes in the vessel’s attitude.

This barometer is an outstanding example of Japanese professional marine instrument manufacture from the mid-twentieth century, combining functionality, durability, and thoughtful engineering with impeccable workmanship. Its massive construction, carefully executed mechanism, effective temperature compensation, sophisticated calibration system, and highly refined transmission mechanism make it not only a reliable navigational instrument but also a remarkable testament to the level of technical excellence achieved by the Japanese precision instrument industry in the field of marine meteorological equipment.
