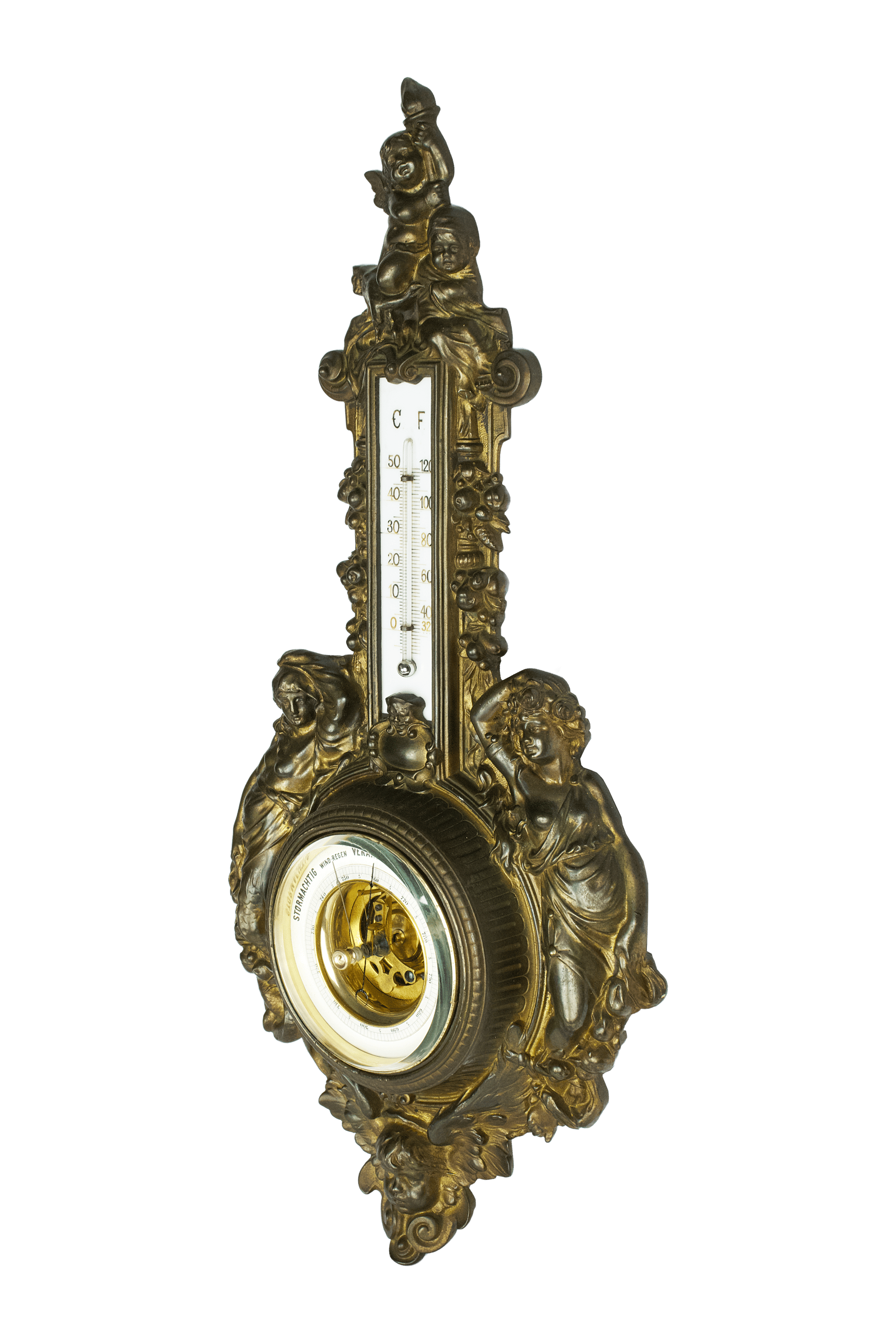

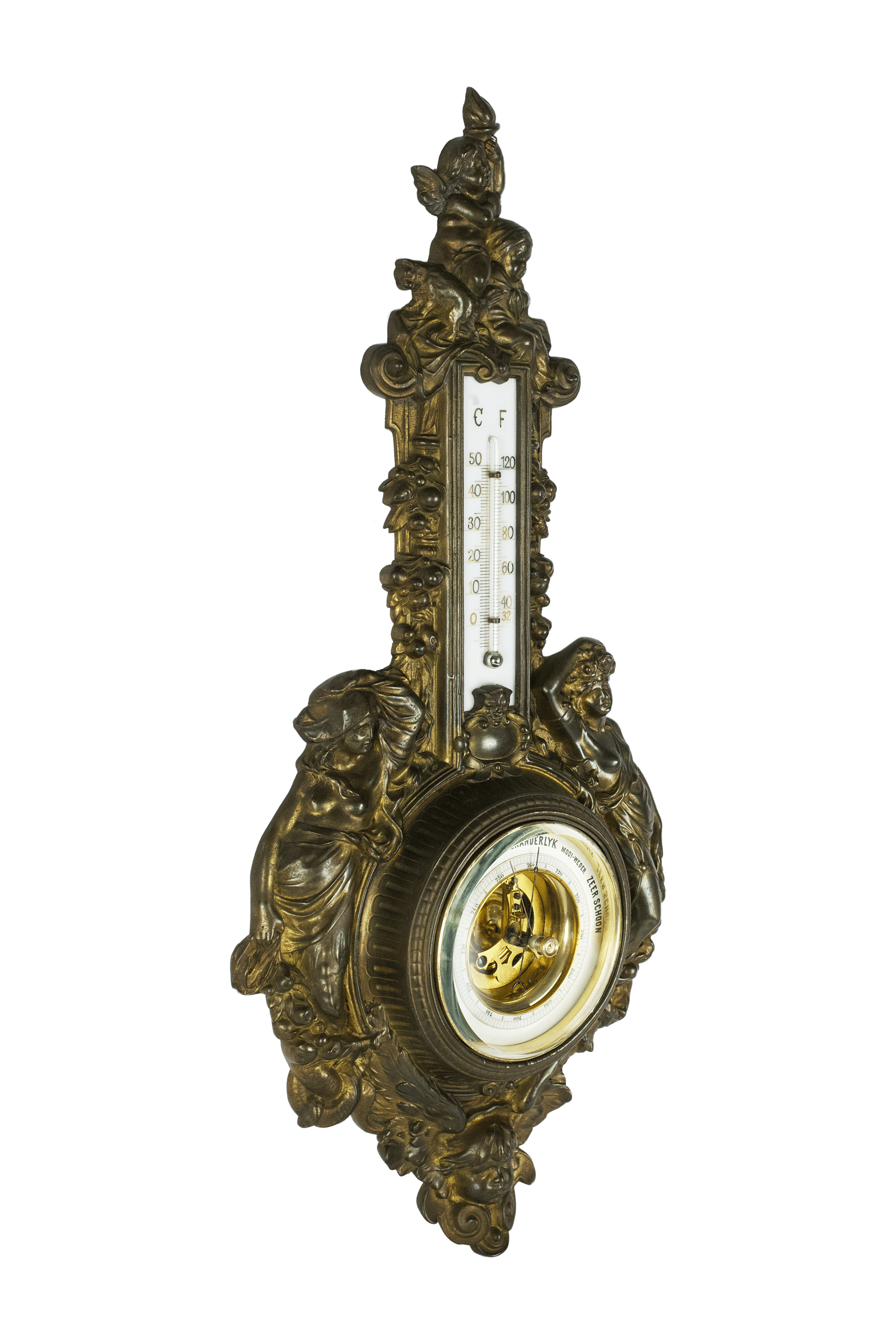

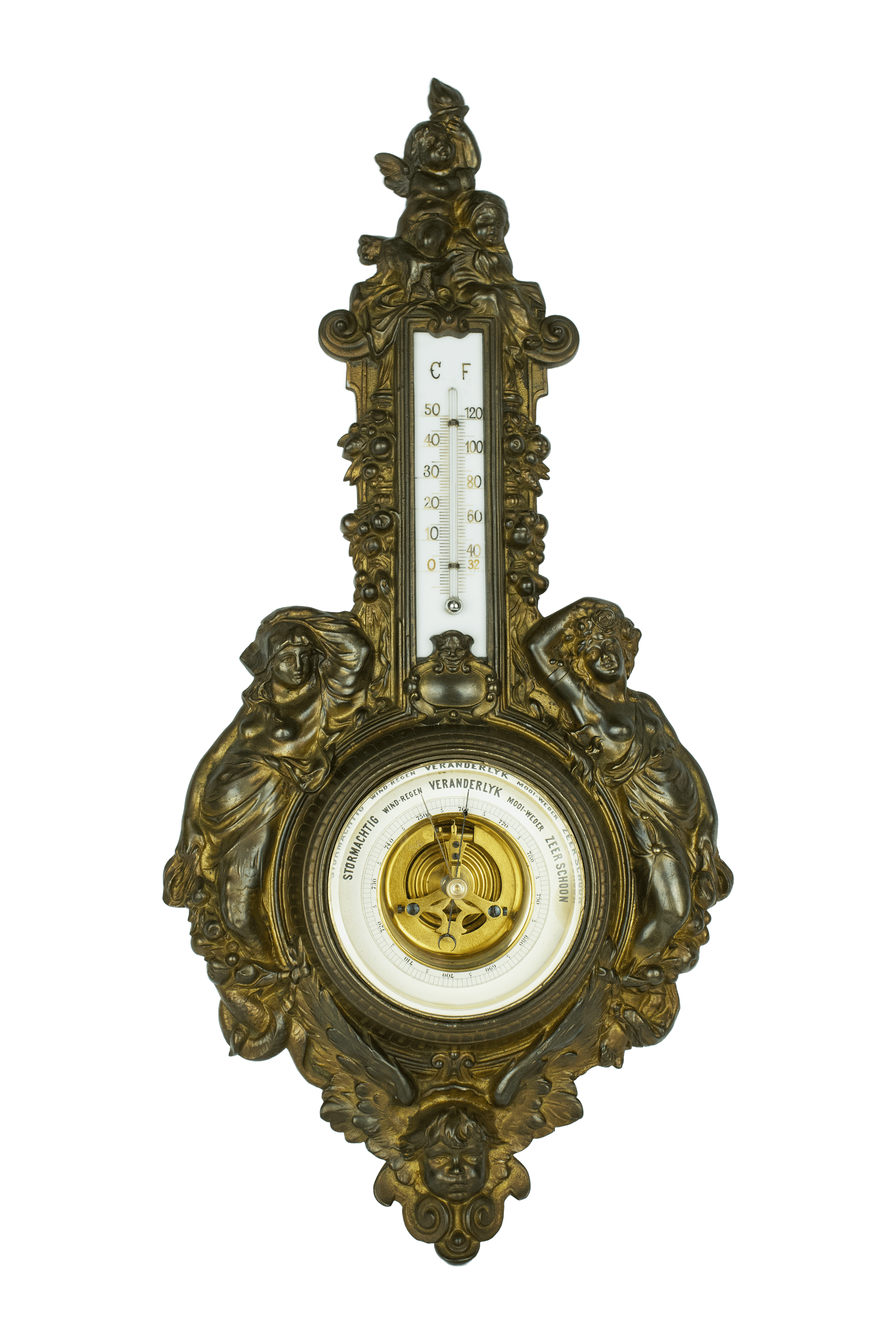

This Allegorical Bronze Barometer, circa 1880, is an extraordinarily unusual wall-mounted aneroid barometer from the late German Gründerzeit period, created by the Hamburg manufacturer of precision and optical instruments D. Brauckmann together with the Hanau founder (bronze caster), August Offterdinger. Unlike the more severe Neo-Gothic or heraldic compositions of the same era, this instrument represents a complex Neo-Baroque allegorical scene in which weather, temperature, fertility, playfulness, feminine beauty, nature, and childhood are united around a scientific measuring instrument. Here, the barometer ceases to be merely a technical object and instead becomes a decorative bronze miniature with an almost theatrical symbolic programme.

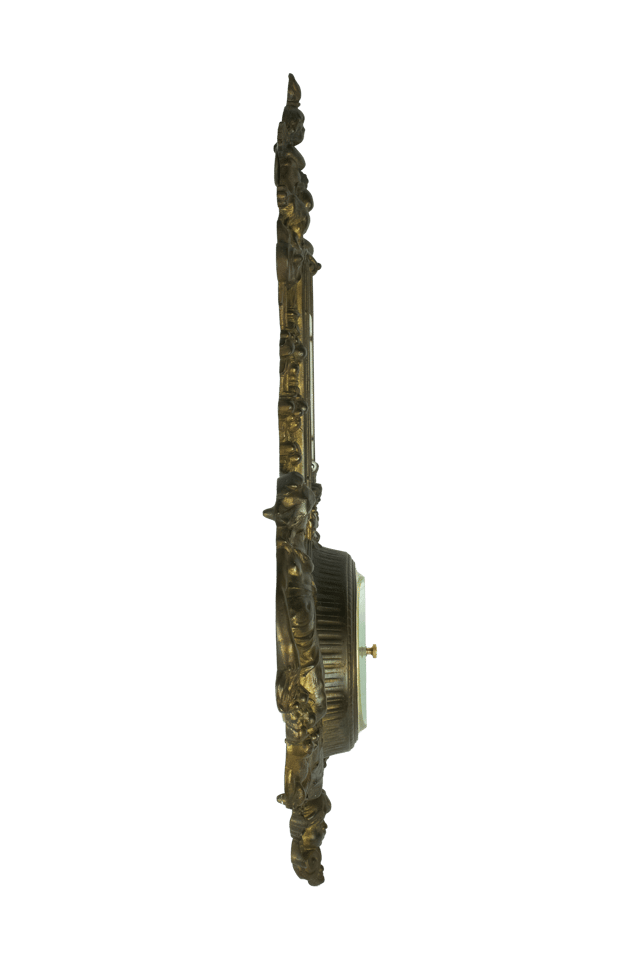

The case is executed in cast bronze with subsequent artistic surface finishing, chasing, patination, and hand refinement of individual details. Over more than a century, the bronze has developed a deep dark olive and brownish patina, particularly expressive within the recesses of the relief and between the decorative elements. At the same time, the warm golden colour of the metal itself still emerges across the raised surfaces. This creates an exceptionally rich play of light and texture: light seems to glide across the figures, folds of drapery, leaves, and faces, while the recesses remain deeply shadowed. It is precisely this natural patina that today emphasises the sculptural depth of the case and gives the impression of an old cabinet bronze of museum quality.

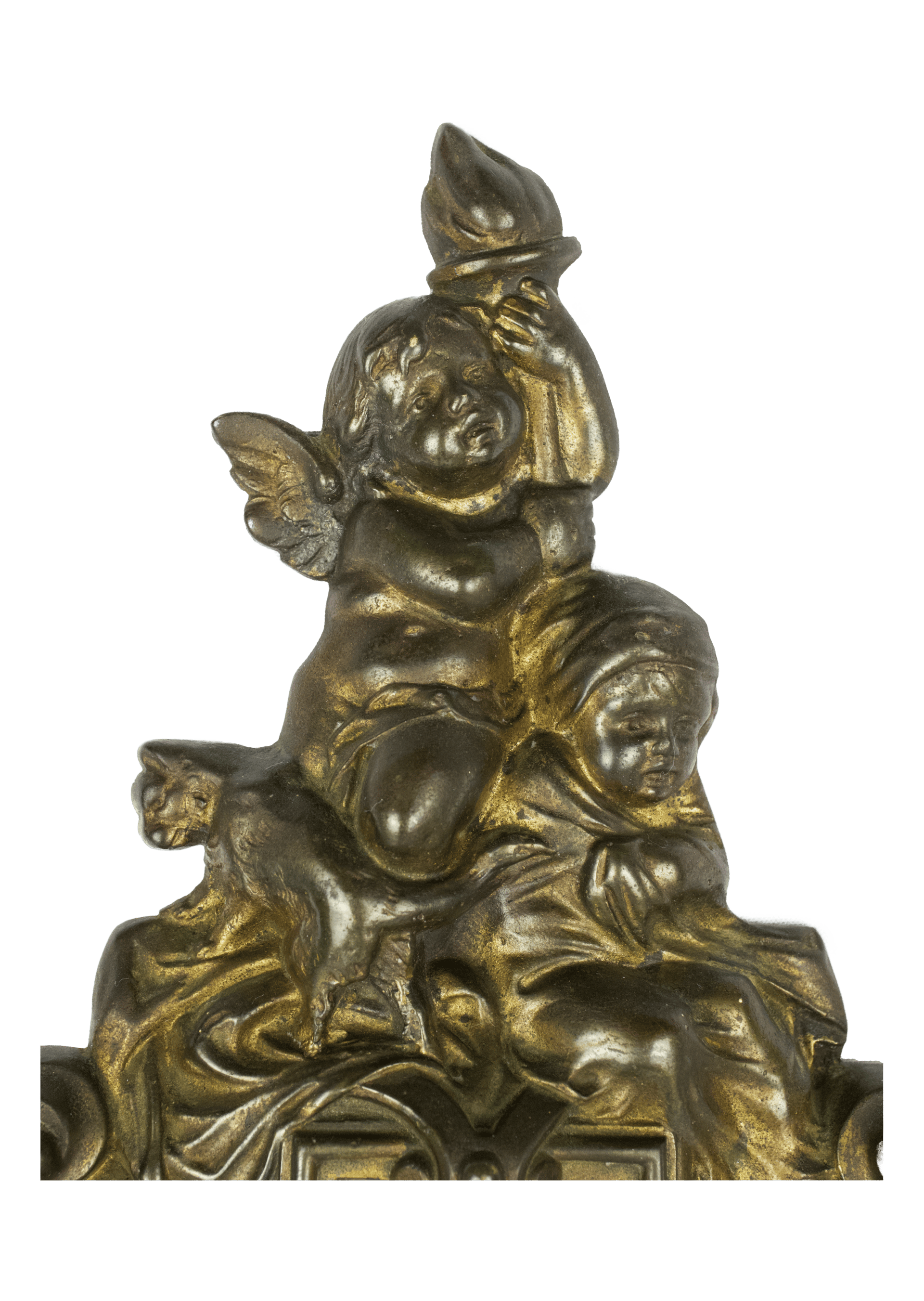

The upper part of the case forms a complete genre scene. At the summit are two putti seated upon heavy drapery above the thermometer. One of them — a winged, plump child — raises a small torch upwards. Within nineteenth-century decorative symbolism, such a motif could represent light, warmth, vital energy, or even the element of fire itself. In the context of a weather instrument, the image is particularly fitting, directly echoing the thermometer located beneath it — the measurement of heat and cold. The mercury thermometer itself, mounted on an opaline glass backing, was evidently replaced at a later date, while the original thermometer most likely had a brass backing plate. The second child appears calmer and more contemplative, as though quietly observing the scene. To the left of the children stands a small cat — an exceptionally rare and surprisingly domestic detail for a scientific instrument of the nineteenth century. It softens the overly academic character of the composition and shifts it into a more intimate interior context. Rather than a strict allegory, the viewer encounters an almost living decorative scene combining playfulness, domestic comfort, and observation of nature.

Along the sides of the thermometer extend relief branches with leaves and rounded berries or fruits. These form vertical garlands linking the upper scene with the central body of the instrument. Such vegetal motifs traditionally symbolised fertility, seasonal cycles, growth, and vitality. In the case of a barometer, the symbolism is especially appropriate: the instrument is directly connected with atmosphere, climate, rainfall, and the conditions upon which harvests and everyday life historically depended.

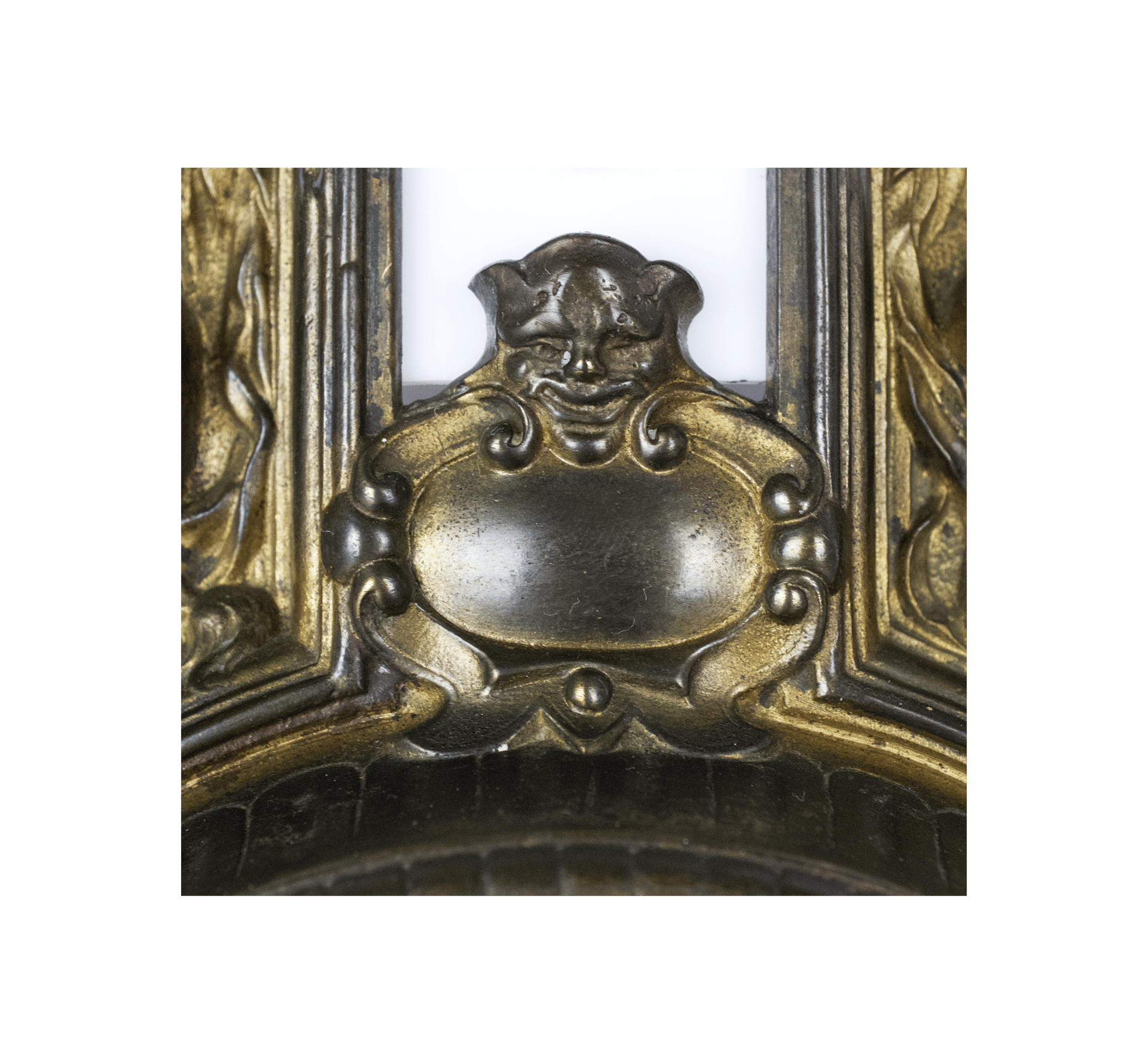

At the base of the thermometer appears a small mascaron — a grotesque rounded face with soft, almost satirical features. Decorative heads of this kind were highly characteristic of Neo-Baroque and Neo-Renaissance art during the second half of the nineteenth century. Here, the mascaron serves not merely as ornament but also as a visual transition between the vertical axis of the thermometer and the circular body of the barometer itself. It almost “animates” the case, transforming the bronze construction into a fantastical creature or architectural fragment.

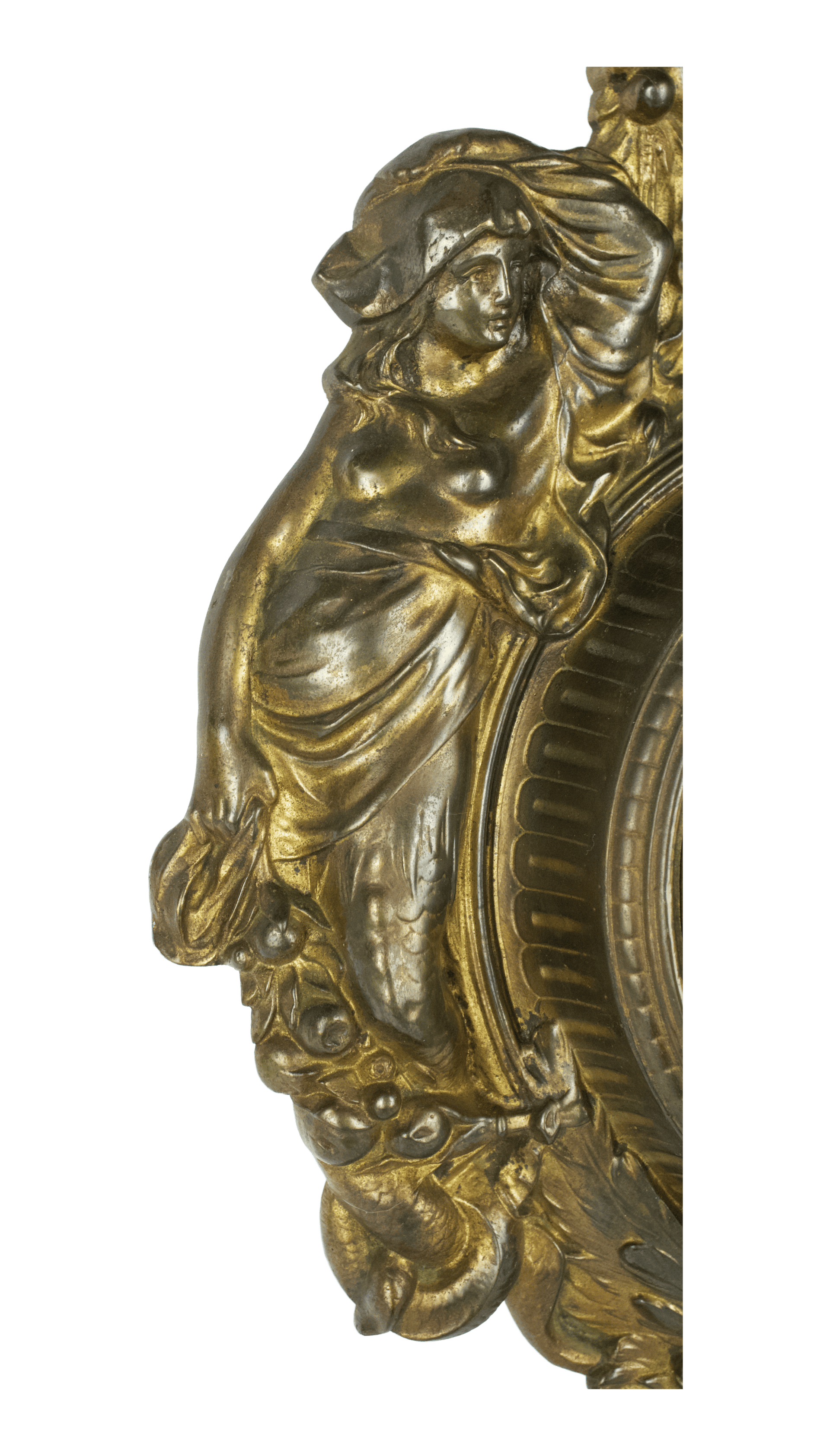

On either side of the barometer are two allegorical female figures intentionally contrasted with one another. The left-hand figure appears more closed and tense. Her head is partially covered with fabric or a veil, which she seems to hold in place with one hand as though shielding herself from wind or rain. Her posture evokes coolness, moisture, and inclement weather. Particularly intriguing is the fact that the left side of the barometric dial corresponds precisely to bad weather, storms, and rain — thus allowing the figure to interact directly with the functional aspect of the instrument.

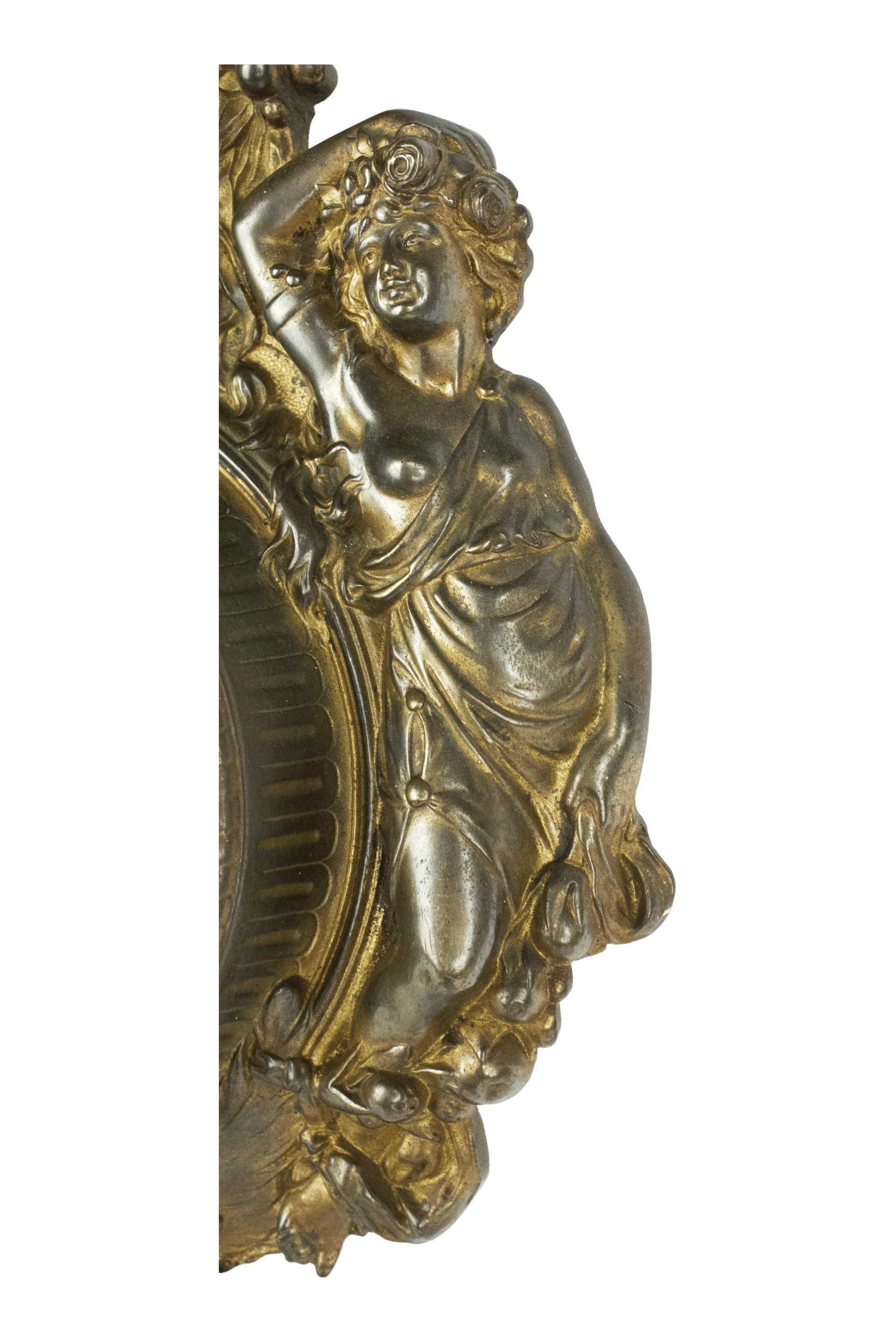

The right-hand female figure, by contrast, appears open and almost sunlit. Her head is adorned with flowers, her hair flows freely, and her body seems exposed to warmth and light. The raised arm and open posture create an impression of enjoyment in clear weather and sunlight. It is precisely the right side of the barometric scale that corresponds to fair weather, stable pressure, and clear skies. Both women hold branches with the same fruits and leaves that run along the sides of the thermometer, reinforcing their belonging to a unified natural system. The entire composition thus becomes a kind of allegory of atmospheric variability — from rain and wind to warmth and clarity.

At the centre of the entire bronze composition stands the barometer itself — the conceptual core of the entire allegorical system. It is set within a massive bronze frame with deep fluting and powerful sculptural modelling. Here, the measurement of atmospheric pressure becomes the centre of the artistic narrative: around the scientific instrument unfolds an entire world of nature, seasons, air, light, and human sensation.

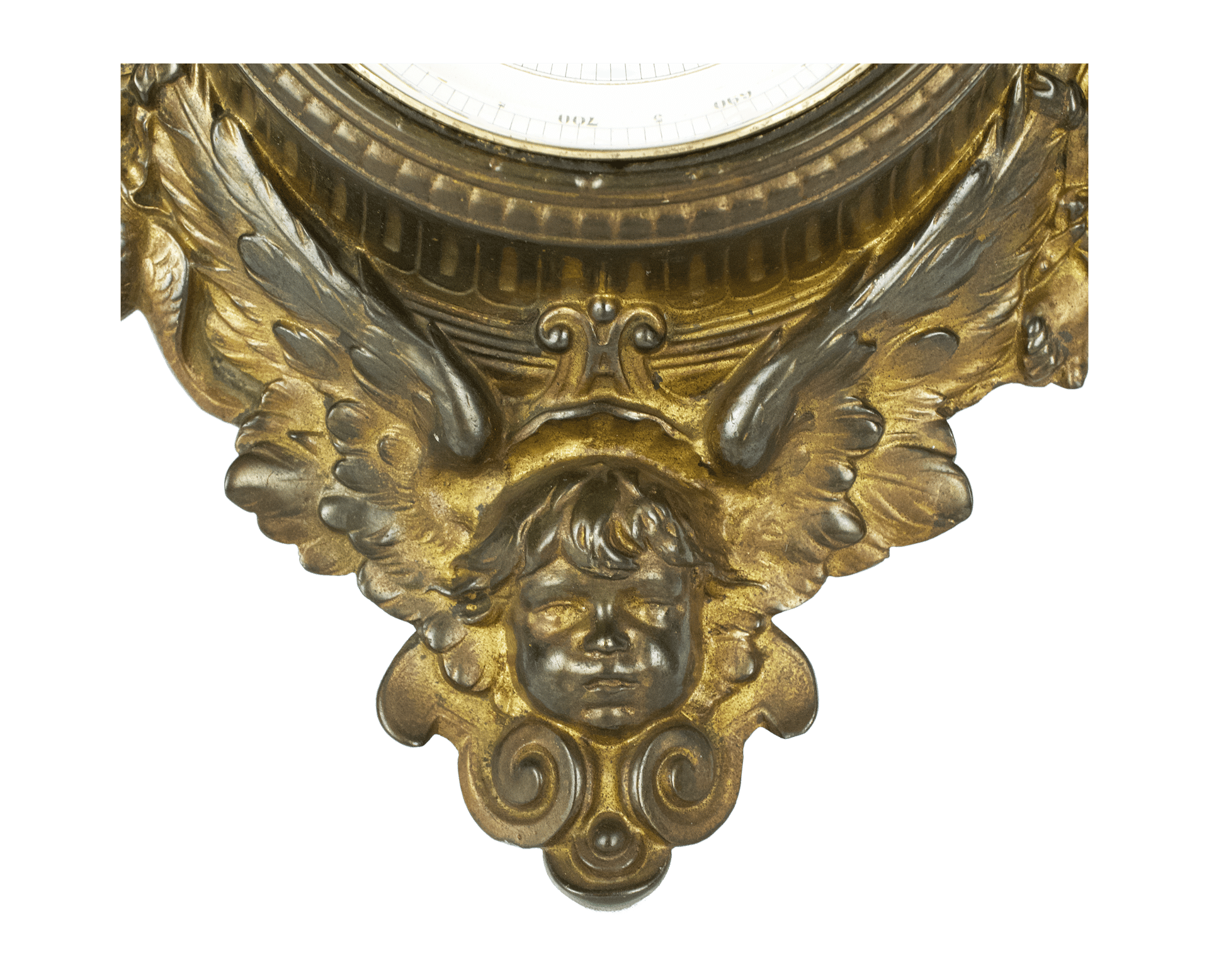

The lower section of the case terminates in a large winged cherub’s head. Its massive wings extend upward and appear to support the entire barometric body. In European decorative art, such winged heads were often associated with air, celestial forces, and invisible powers. In the context of a barometer, the symbolism is especially fitting: it is precisely air and atmospheric pressure that effectively “support” and animate the instrument itself.

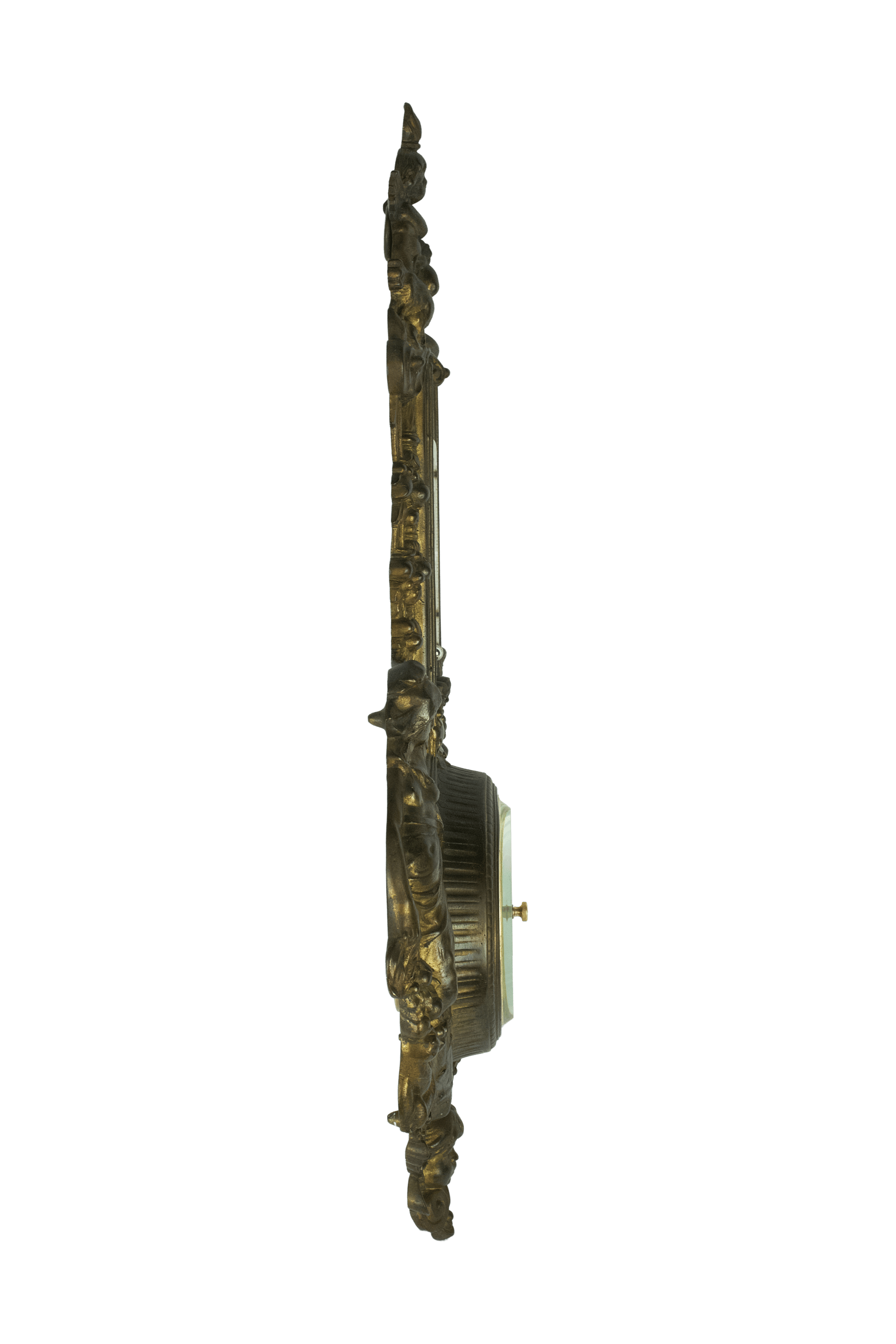

The barometric mechanism is housed within a cylindrical brass casing recessed into the bronze composition. As a result, the ordinary brass bezel holding the thick mineral glass with its pronounced faceted edge is almost entirely concealed behind the bronze framework of the case. This solution produces an extraordinarily unusual visual effect, as though the mechanism were embedded directly into the sculptural bronze mass itself.

The dial is made of cardboard and has an open structure, allowing the Brauckmann mechanism itself to be clearly visible through the central aperture — one of the most recognisable and visually striking types of German aneroid mechanisms of its period. It impresses through its depth, architectural quality, and mechanical transparency. The concentric barometric scale is calibrated in millimetres of mercury and features weather indications in Dutch along the outer edge of the scale.

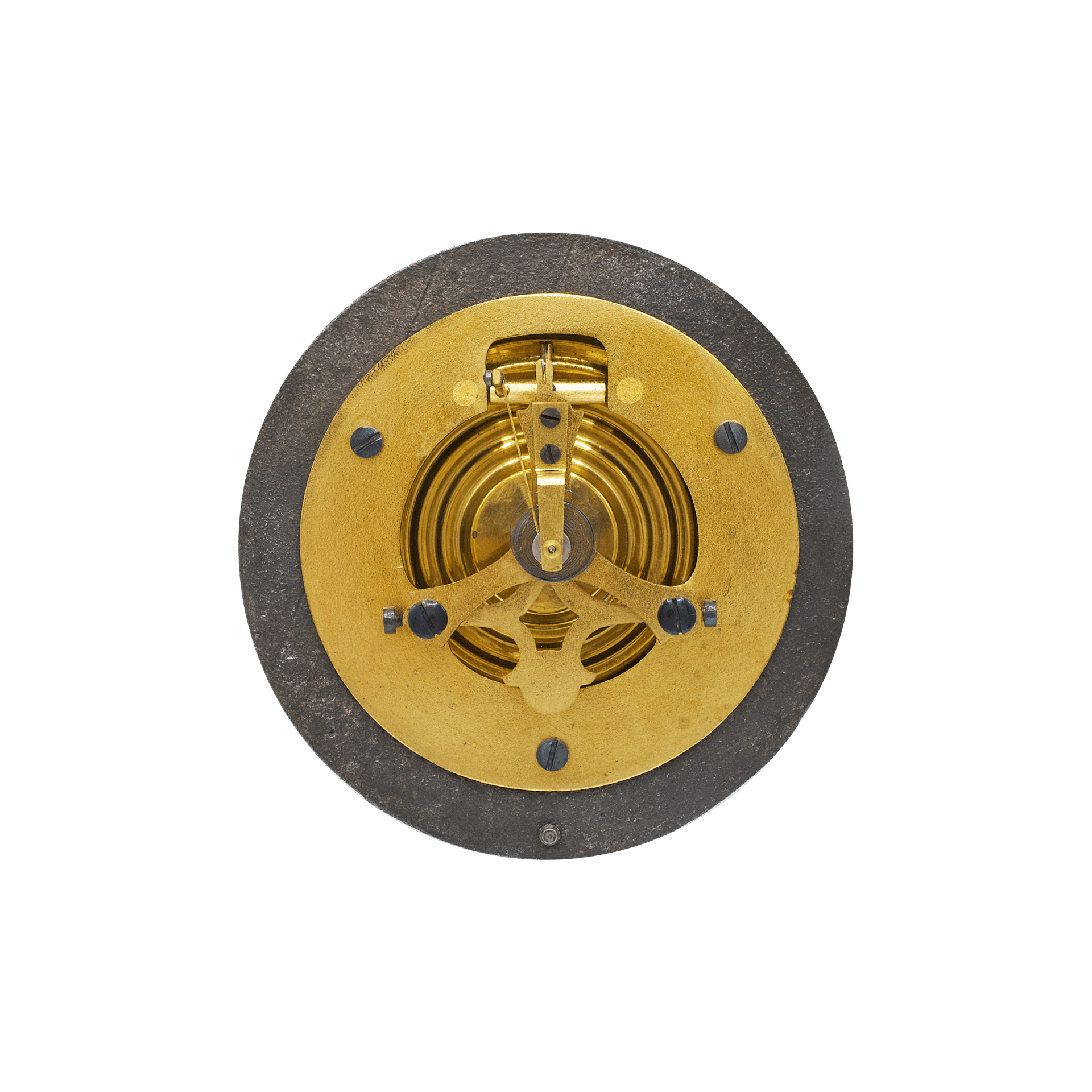

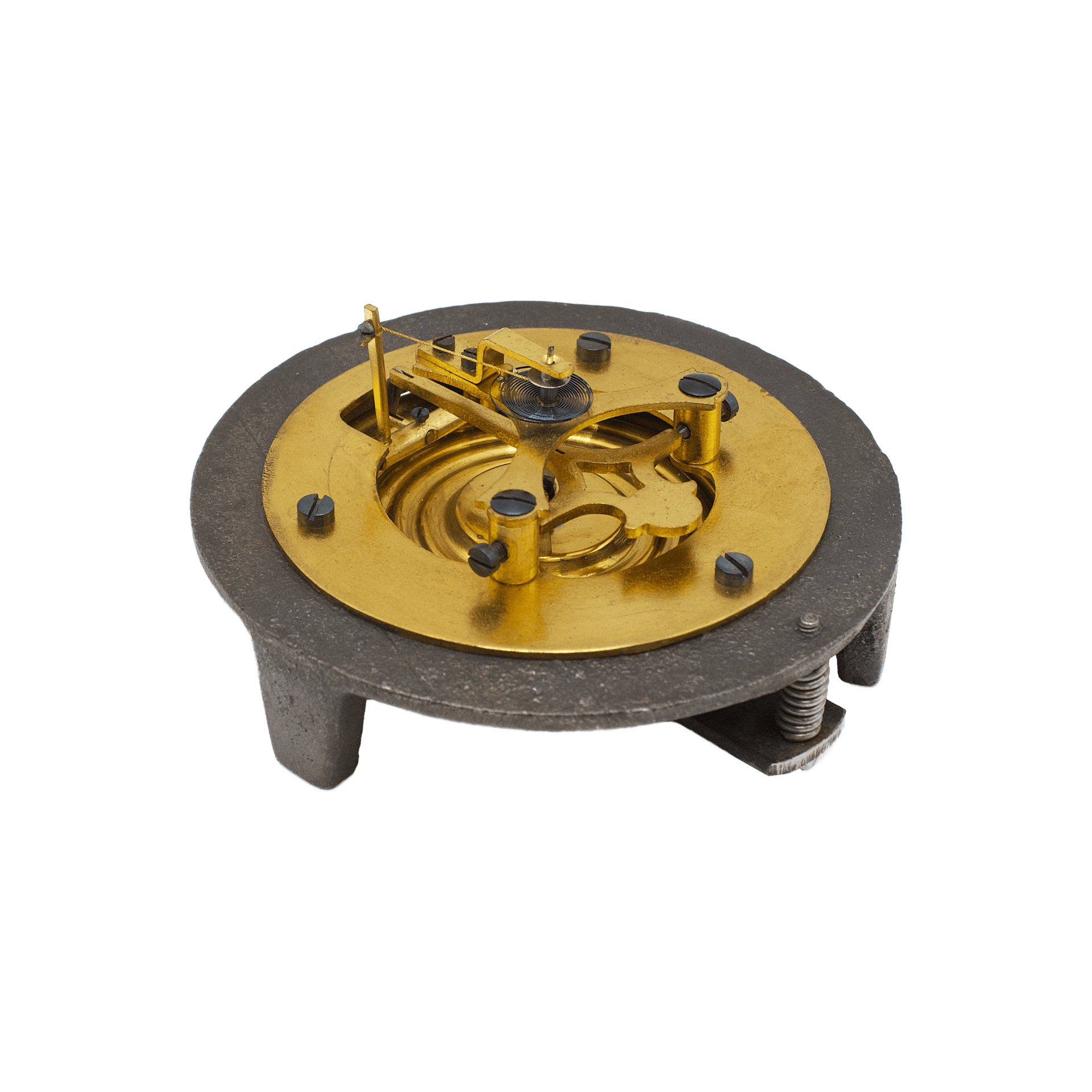

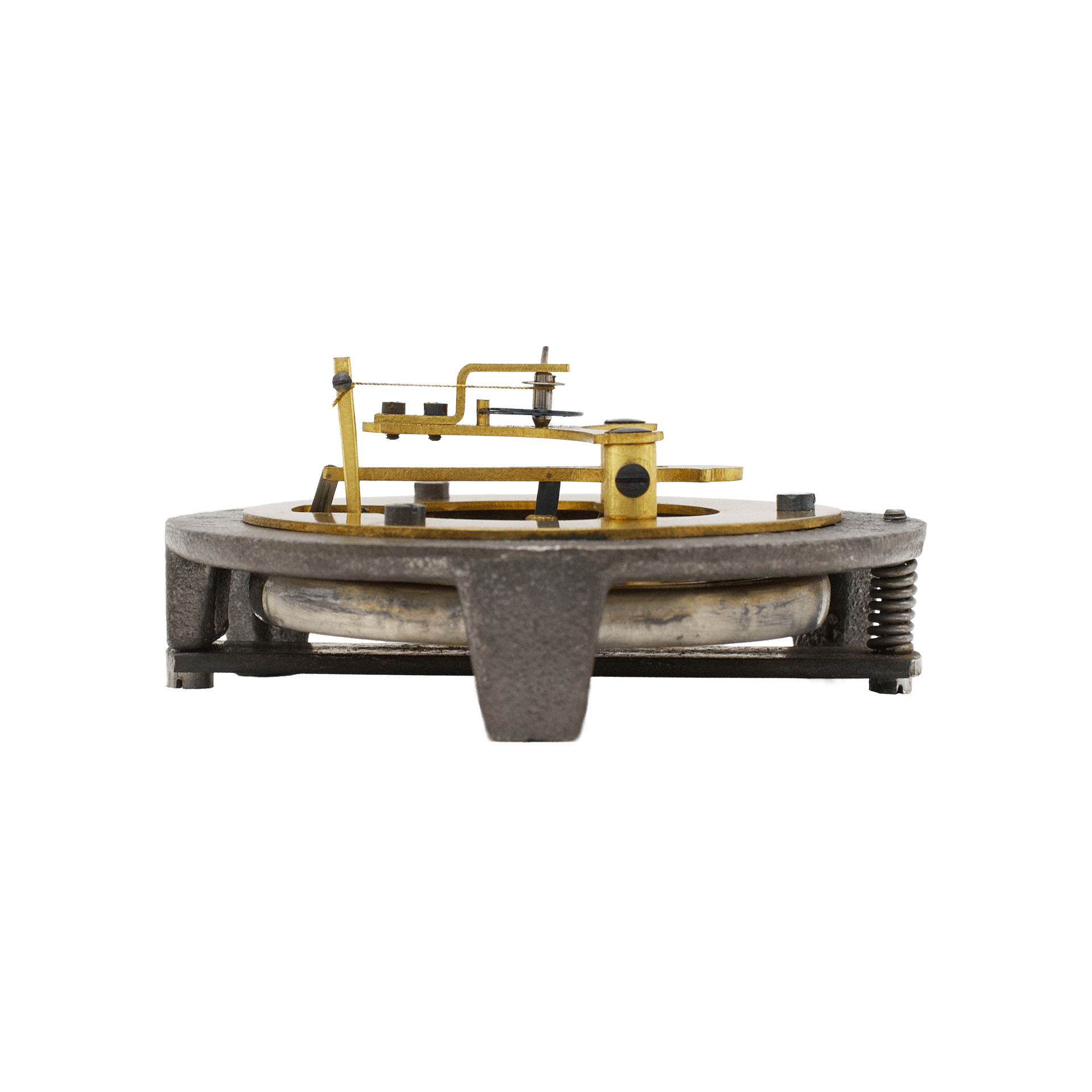

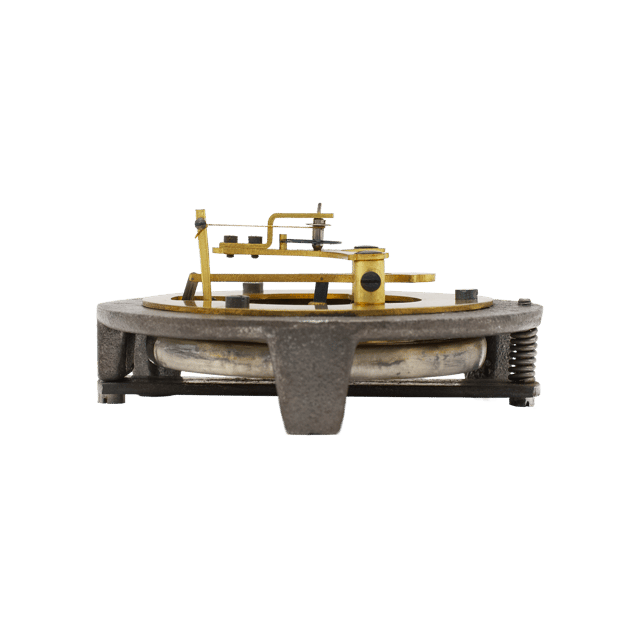

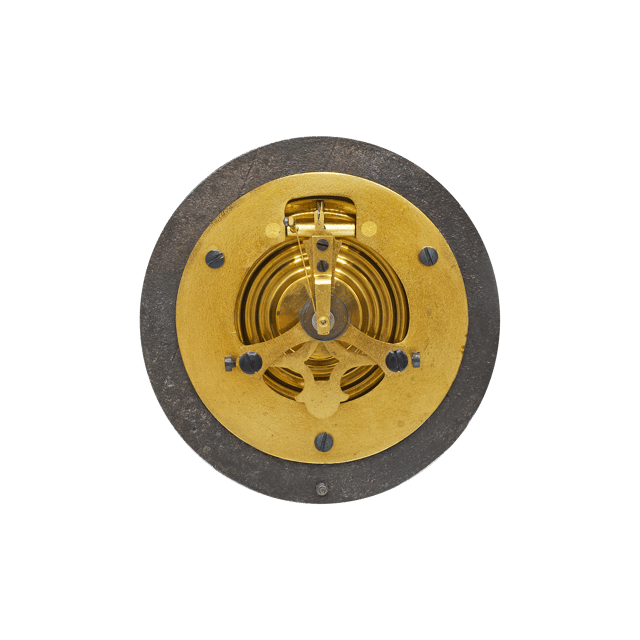

The operation of the instrument is provided by a characteristic Brauckmann movement mounted upon a circular iron frame. At the heart of the construction lies a lacquered brass aneroid capsule with an internal steel helical spring preventing the membranes from collapsing under atmospheric pressure. The movement of the upper membrane is transmitted through a linkage to a brass lever fitted with an elegant shaped counterweight. The lever itself is supported upon two vertical pillars with miniature bearings.

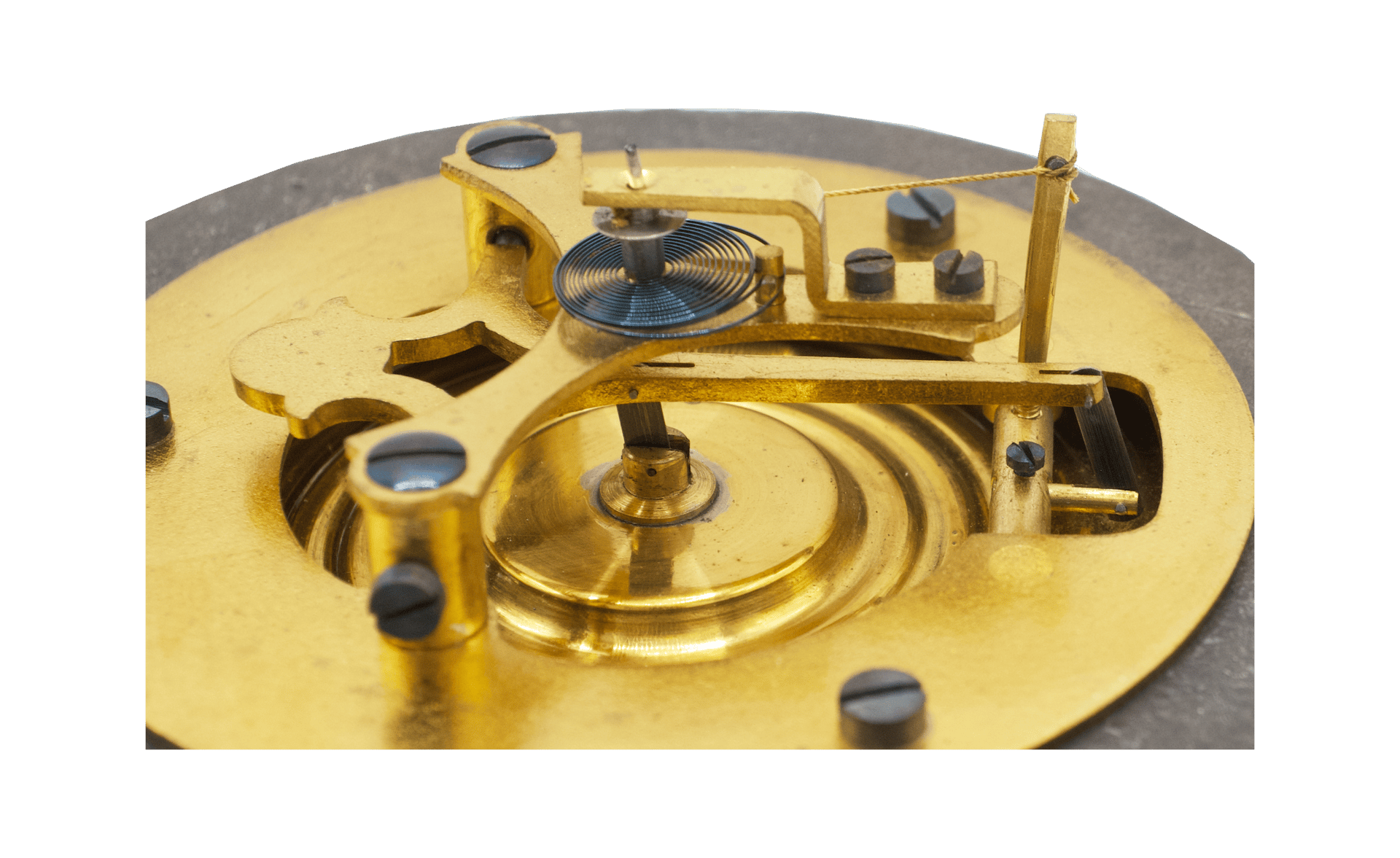

Through a delicate linkage, the principal lever connects to the main shaft, from which motion is transmitted to the pointer shaft by means of a fine thread. Around the pointer shaft is a blued steel spiral spring maintaining constant tension within the system and returning the indicating hand in the opposite direction as pressure changes.

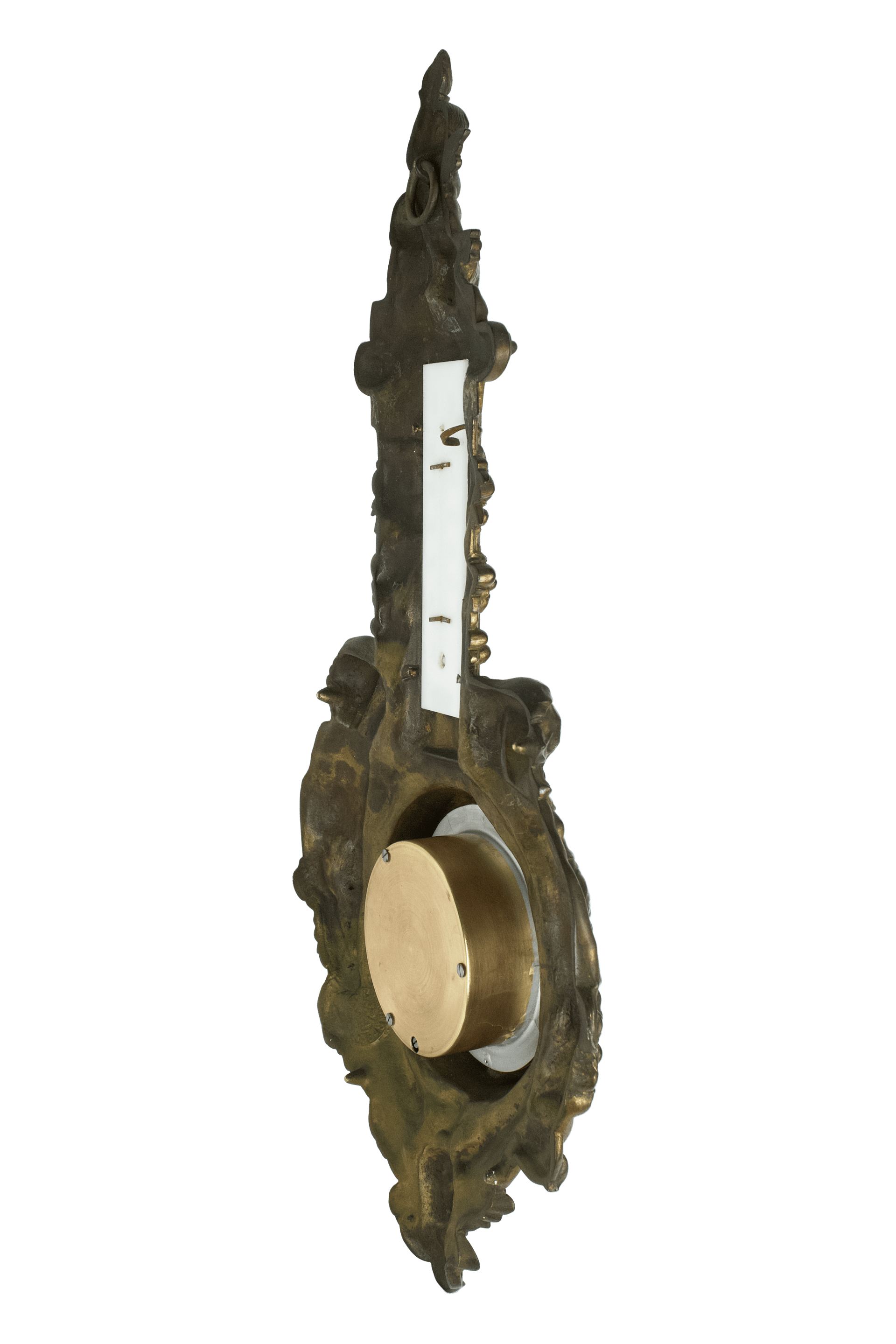

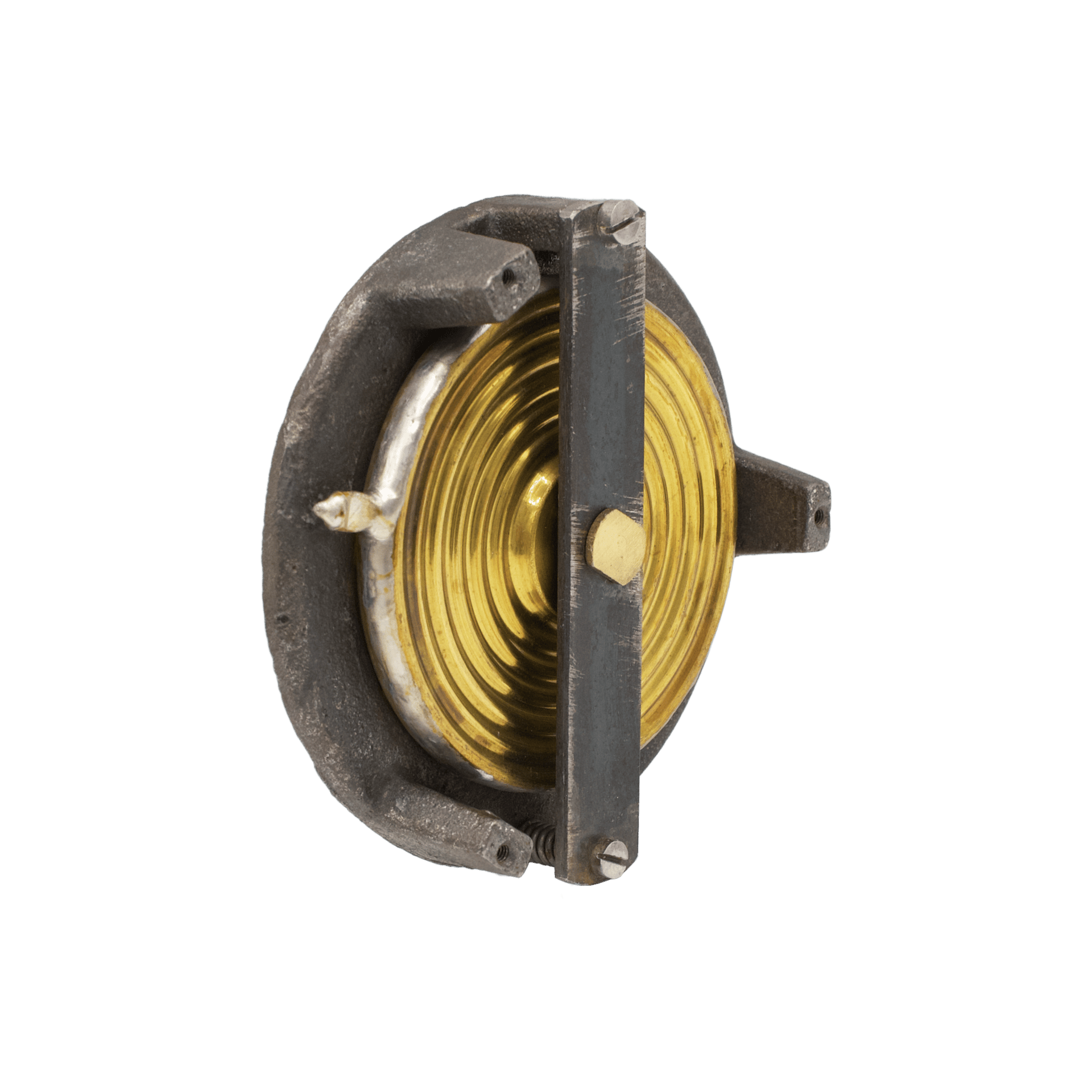

Calibration of the mechanism is performed by means of an adjustment screw located on the reverse side of the iron main frame. Access to this is provided through a dedicated calibration aperture on the rear surface of the instrument.

This barometer represents far more than merely a decorative weather instrument of the late nineteenth century. It is a characteristic artefact of the Gründerzeit era, in which industrial production, artistic bronze casting, and a romantic perception of nature coexisted simultaneously.

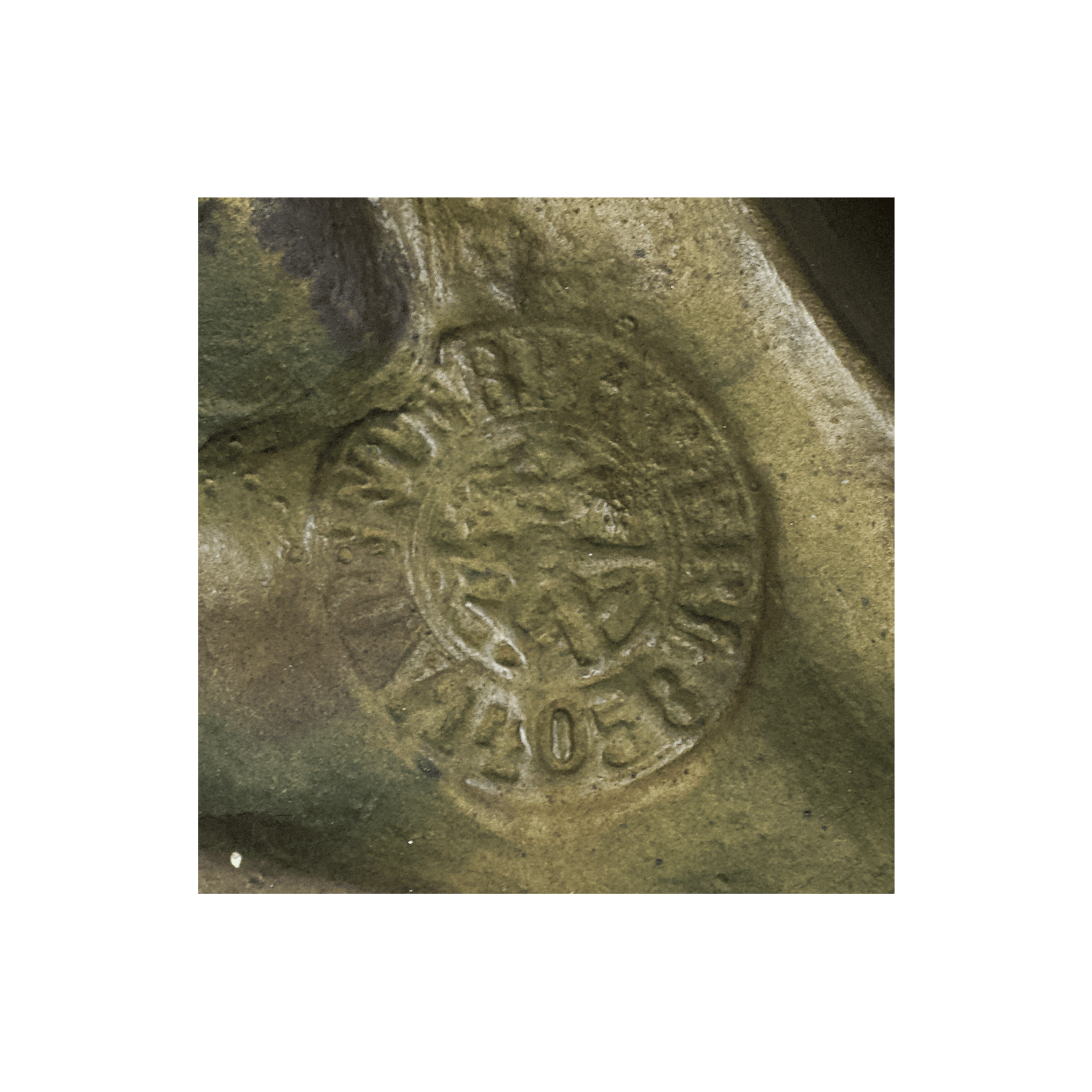

The famous Carpe Diem mark bearing the name of the founder August Offterdinger belongs to the artistic milieu of Hanau. In the second half of the nineteenth century, Hanau was far more than merely a city — it was one of Germany’s principal centers for artistic metalwork, jewelry production, and decorative bronze casting. An entire creative ecosystem existed there: sculptors and model designers, bronze founders, chasers, jewelers, and manufacturers of decorative bronze objects.

August Offterdinger is mentioned in historical sources as an artist, sculptor, designer, and teacher in Hanau. His name is associated with decorative metalwork, silver, artistic casting, and the Jugendstil and Neo-Baroque sculptural traditions of the late nineteenth century.

August Offterdinger effectively transformed a scientific instrument into a small bronze allegory of the atmosphere, where the measurement of pressure became part of an elaborate decorative scene uniting air, warmth, fertility, human emotion, and the variability of weather into a single artistic whole.
