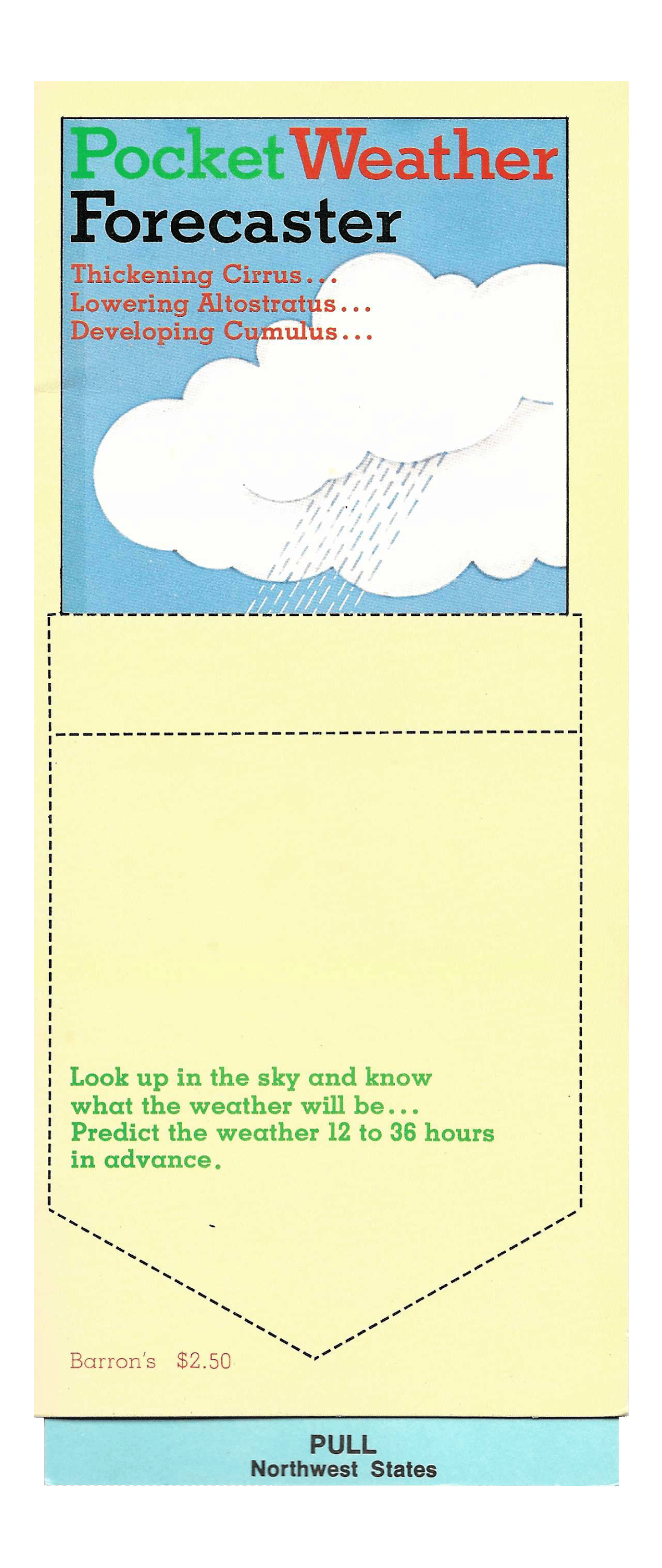

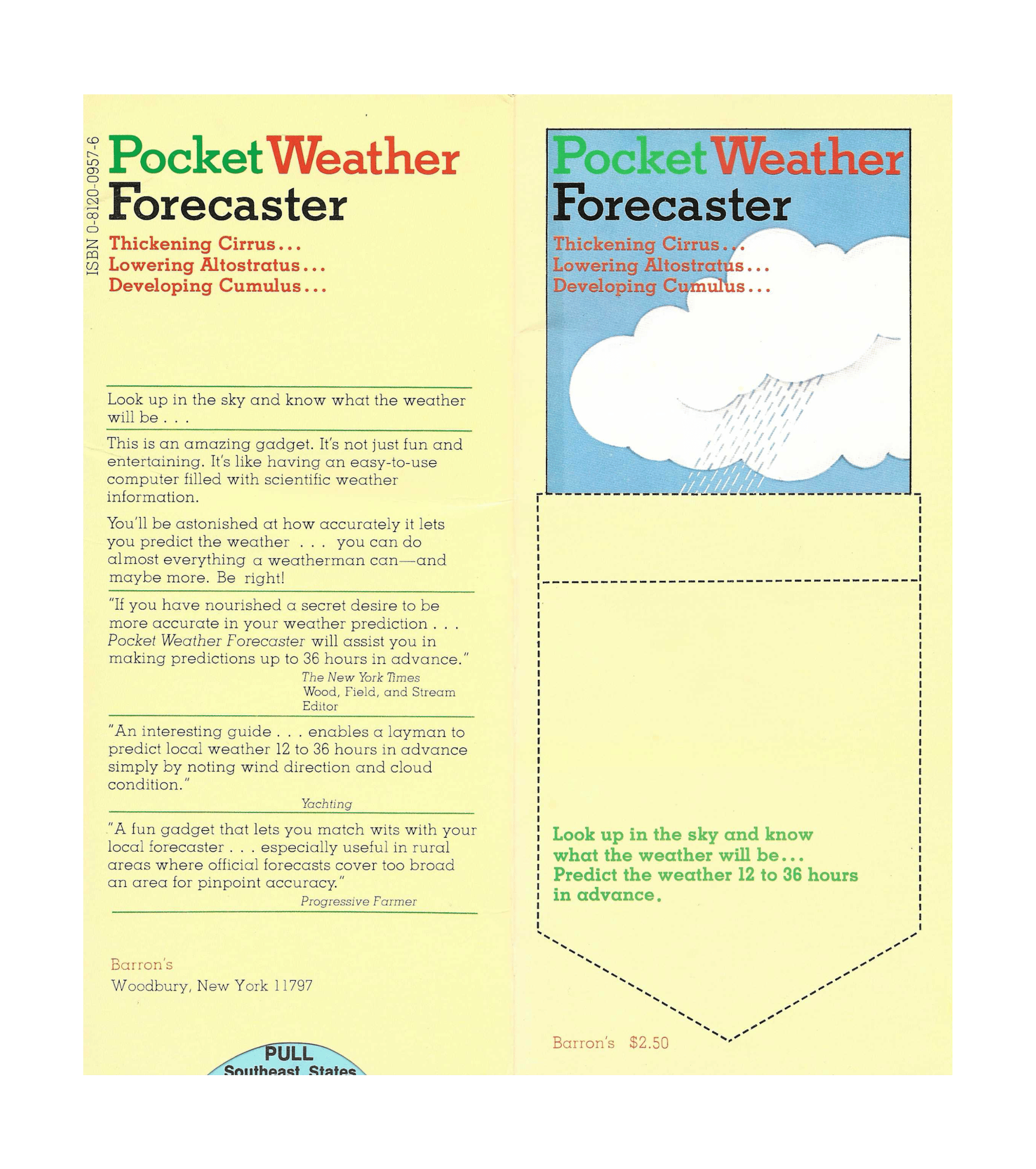

Before us is a compact domestic weather-prediction device, the Pocket Weather Forecaster, produced in the form of a folding cardboard brochure-envelope. The construction of the object is simple and functional: the outer cover forms a stiff cardboard sleeve with a large pocket containing a set of interchangeable insert cards with forecasts for different climatic regions of the United States. The front side carries a colored graphic illustration and the title of the device, while the lower portion forms the pocket from which the user can remove and replace the regional forecast tables.

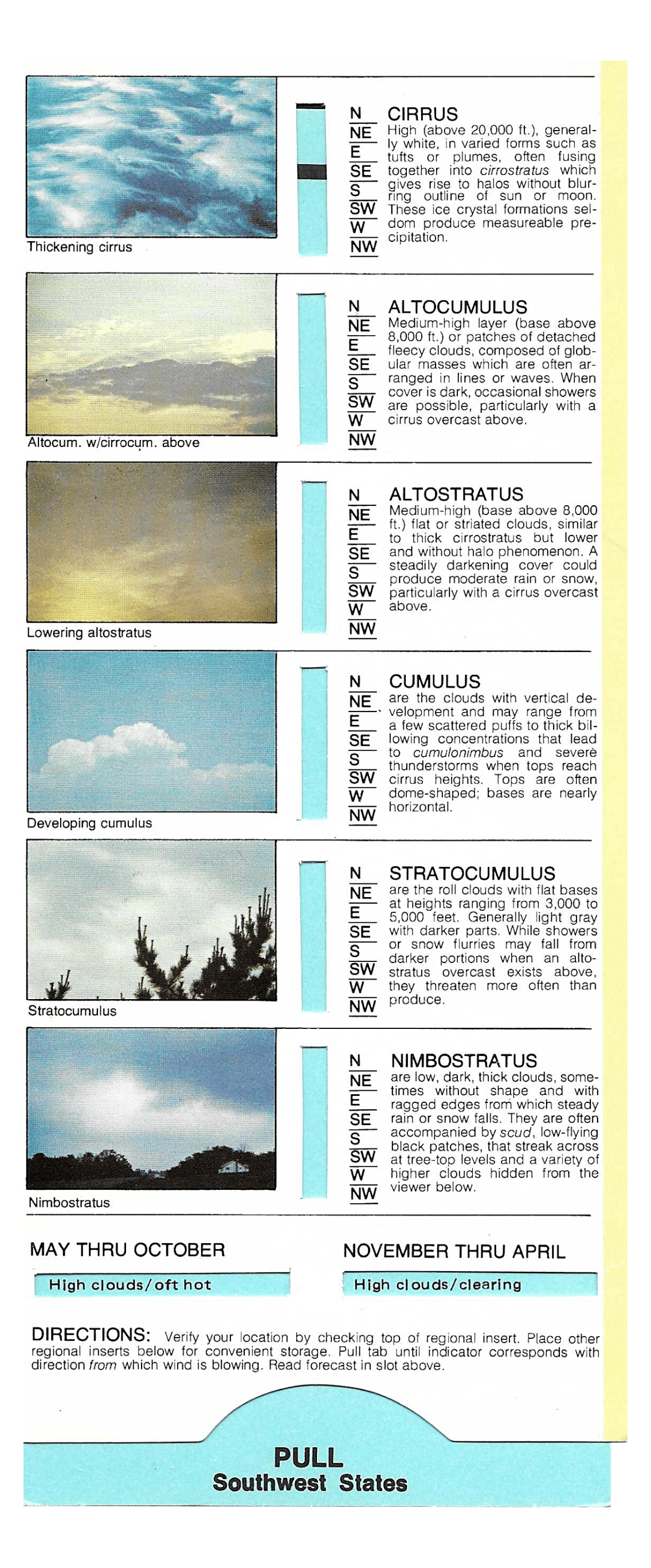

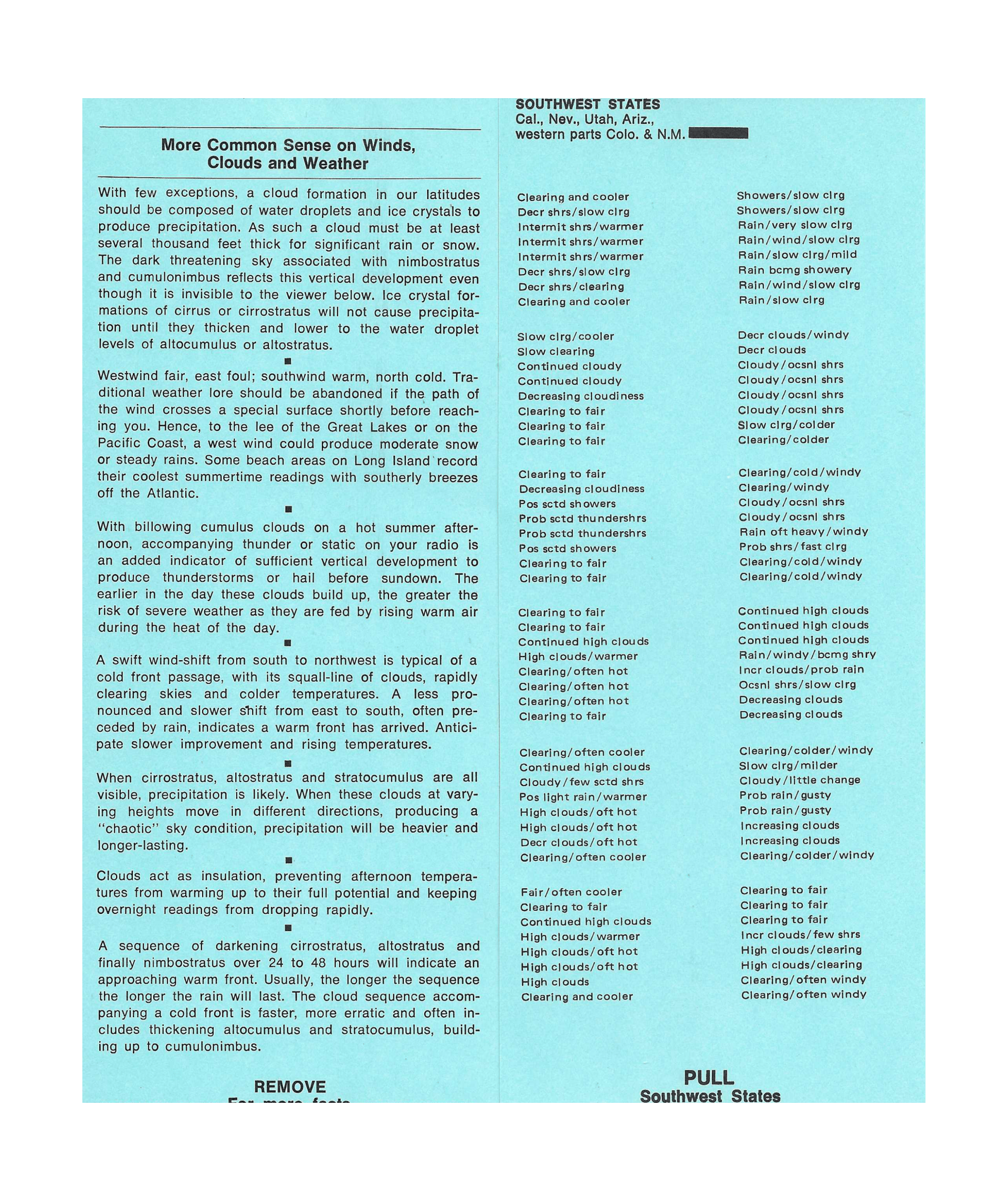

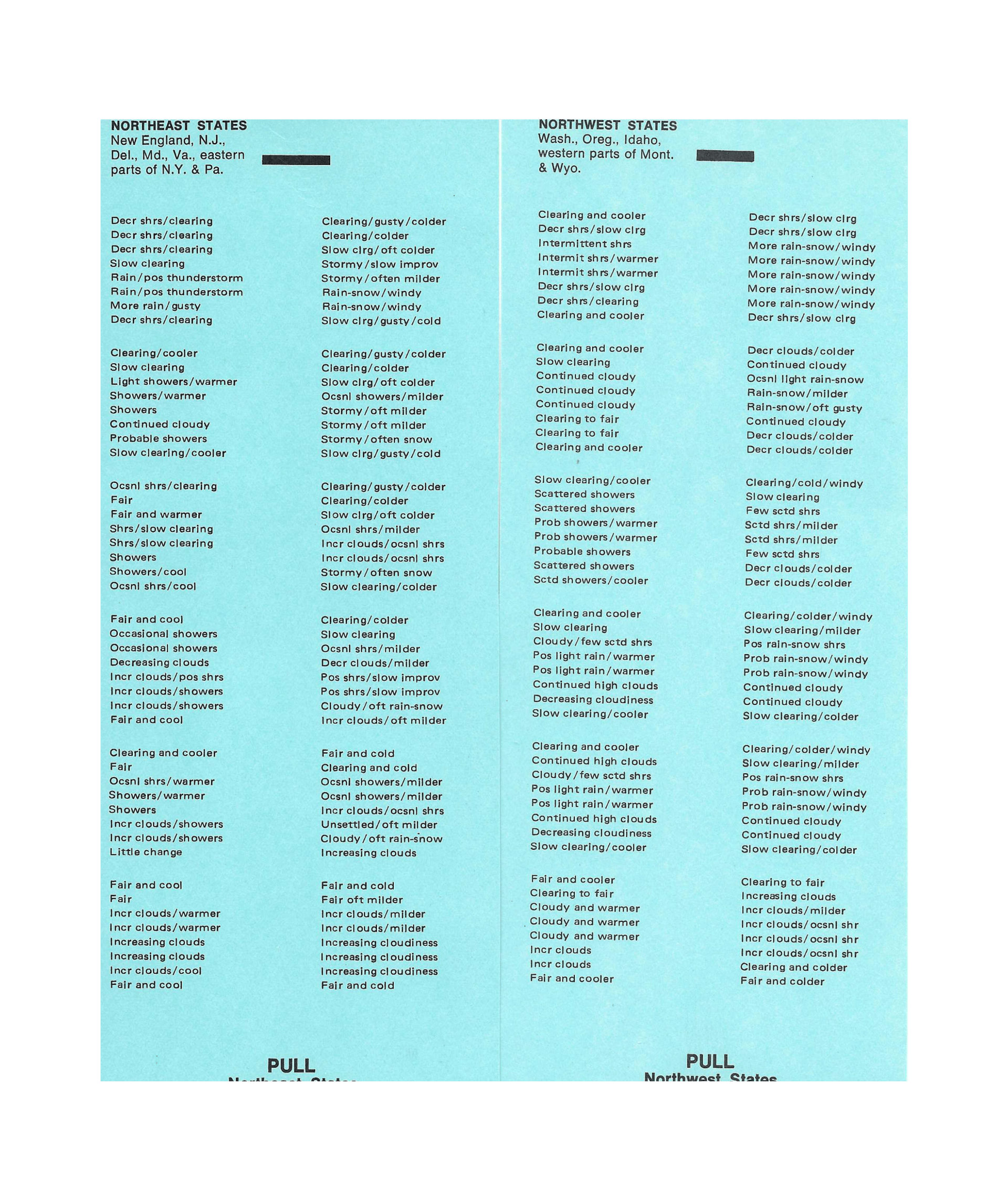

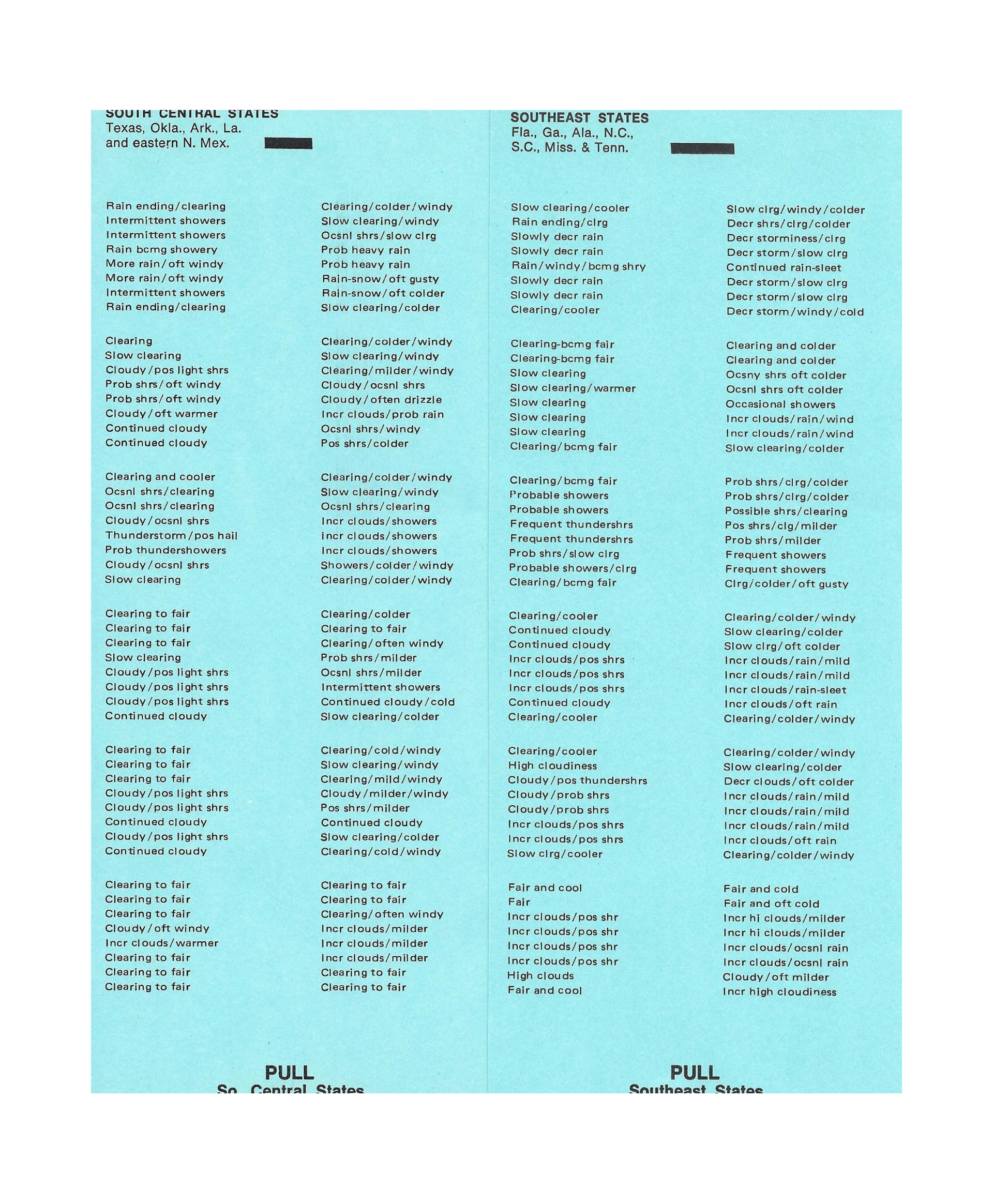

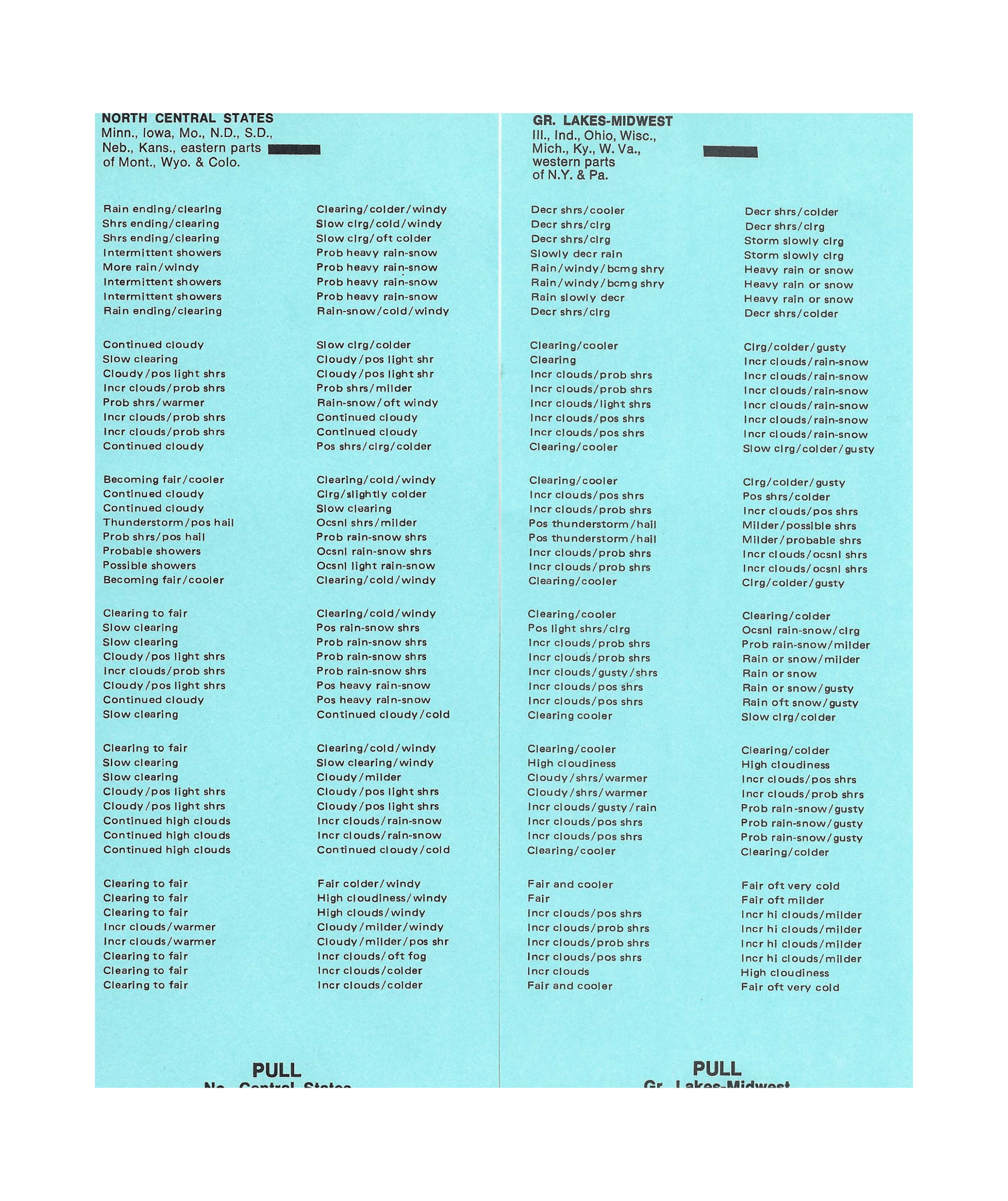

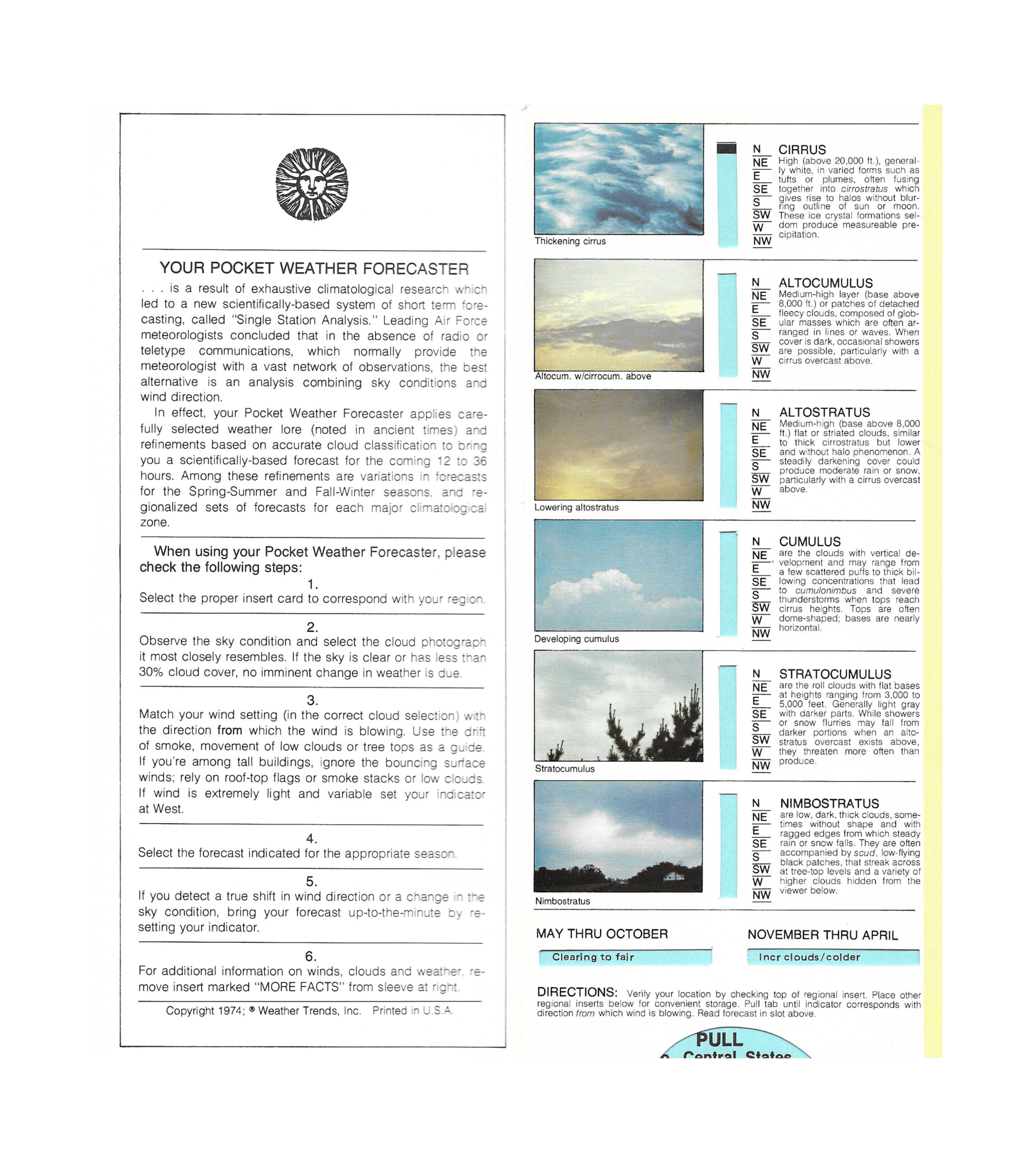

Inside the brochure are printed instructions for use, photographs of typical cloud formations, and tables correlating observed cloud types, wind direction, and the expected development of the weather. One of the pages gives the publication year and copyright notice: © 1974 Weather Trends, Inc., which allows this example to be dated to the mid-1970s. The printing was carried out by the publisher Barron’s, indicated both on the cover and on the inner page with the address Woodbury, New York 11797.
Structurally, the device combines elements of a popular scientific booklet with those of a simple mechanical reference guide. The user first selects the insert card corresponding to his or her region of the United States, then determines the observed cloud form and wind direction. The indicator on the card is then matched with the forecast tables, which makes it possible to obtain a probable weather scenario for the next 12–36 hours. This system is described in the instructions as “Single Station Analysis”—a method based on local observation without the use of telemetric networks or synoptic weather charts.
Such domestic weather predictors have earlier intellectual predecessors. In particular, the American meteorologist Irving P. Krick popularized forecasting methods based on observing clouds and atmospheric signs in his publication Weather Guide (1949). Krick was among the first entrepreneurs in the field of private meteorological services and actively promoted the idea of practical forecasting based on visual atmospheric indicators. The principle underlying the Pocket Weather Forecaster is closely related to this approach: the observation of clouds is treated as the primary indicator of forthcoming changes in weather, since precipitation is almost always preceded by characteristic cloud structures.
The method used by the device relies on the recognition of several principal cloud types. Among them are:
The relationship between these clouds and wind directions allows simple forecasts to be made. For example, thickening cirrus clouds gradually descending to lower levels may indicate probable precipitation within 12–24 hours. The development of towering cumulus clouds on a hot summer afternoon may herald thunderstorms before evening. The presence of several cloud layers moving in different directions is generally interpreted as a sign of an approaching front and deteriorating weather.
Thus, the Pocket Weather Forecaster represents a characteristic product of the mid-twentieth-century era of scientific popularization—a period when complex meteorological knowledge was adapted for a broad audience in the form of compact and inexpensive devices. In this case, scientific principles of atmospheric observation were transformed into a simple pocket instrument that allowed any user to feel like an observer of the weather.
The Pocket Weather Forecaster of 1974 is therefore a typical example of a mass-produced popular scientific device created at the intersection of meteorology, publishing, and the culture of everyday gadgets. Its simple cardboard construction conceals an idea rooted in earlier traditions of cloud observation and empirical forecasting rules. Today such devices are of interest not only as curious accessories, but also as witnesses to the period when the science of weather gradually moved beyond the walls of meteorological stations and became part of everyday life.
