glass, mercury, opal glass, wood
Presented here is a specialized Gunpowder thermometer, manufactured by the Dutch firm Pieterman–Van Baaren circa the mid-20th century, around 1955. This type of instrument belongs to a distinct category of technical thermometers intended not for general domestic or purely scientific observation, but for monitoring a critically important parameter — the temperature of propellant storage in powder magazines, arsenals, and military production facilities.
Since the 18th century, temperature control of gunpowder has been regarded as a key element of both safety and operational effectiveness. Temperature directly affects the ballistic properties of charges, their chemical stability, and the risk of degradation or catastrophic failure. With the development of smokeless nitrocellulose powders in the late 19th and early 20th centuries, the importance of thermometry increased significantly: the concern extended beyond moisture and misfires to include slow chemical decomposition processes capable of leading to disastrous consequences. In this context, long, easily readable thermometers became part of the infrastructure of military discipline — alongside ventilation systems, temperature logs, and chemical testing regimes.
Construction and Appearance

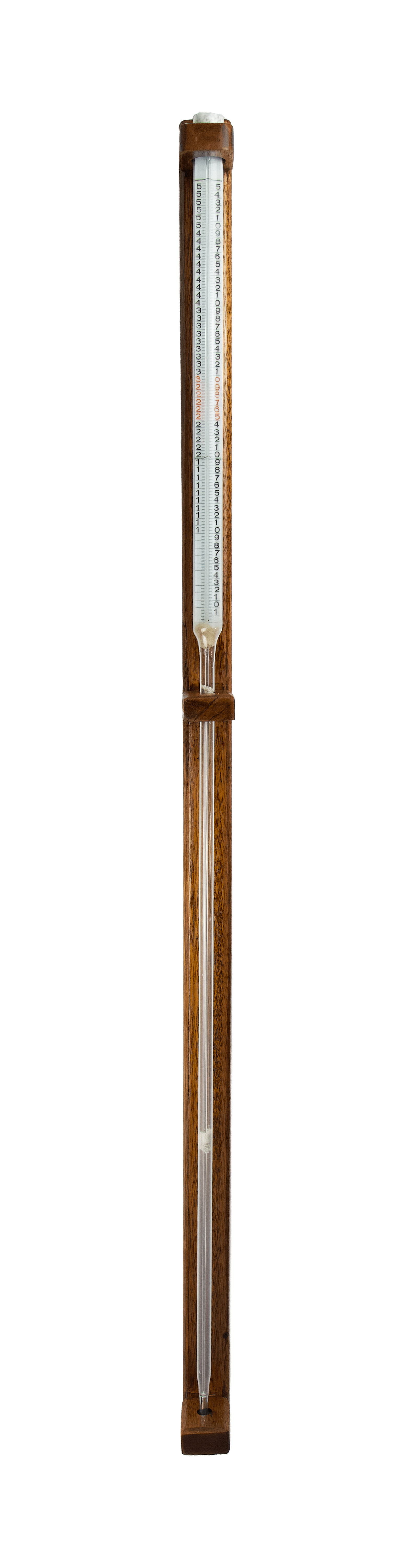

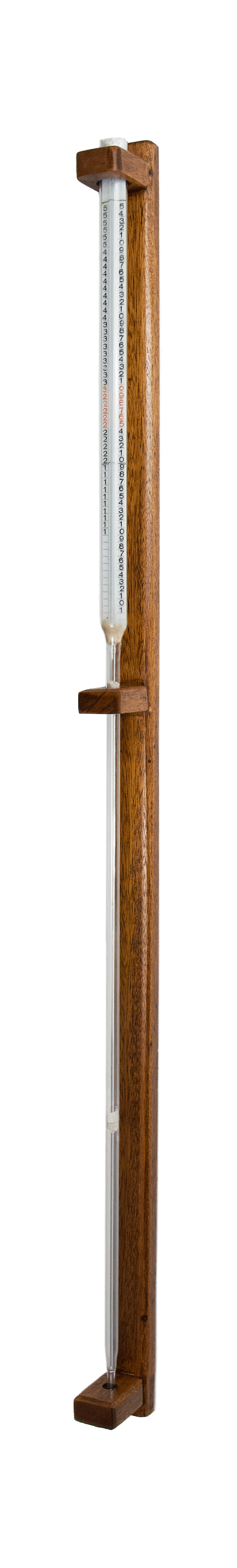

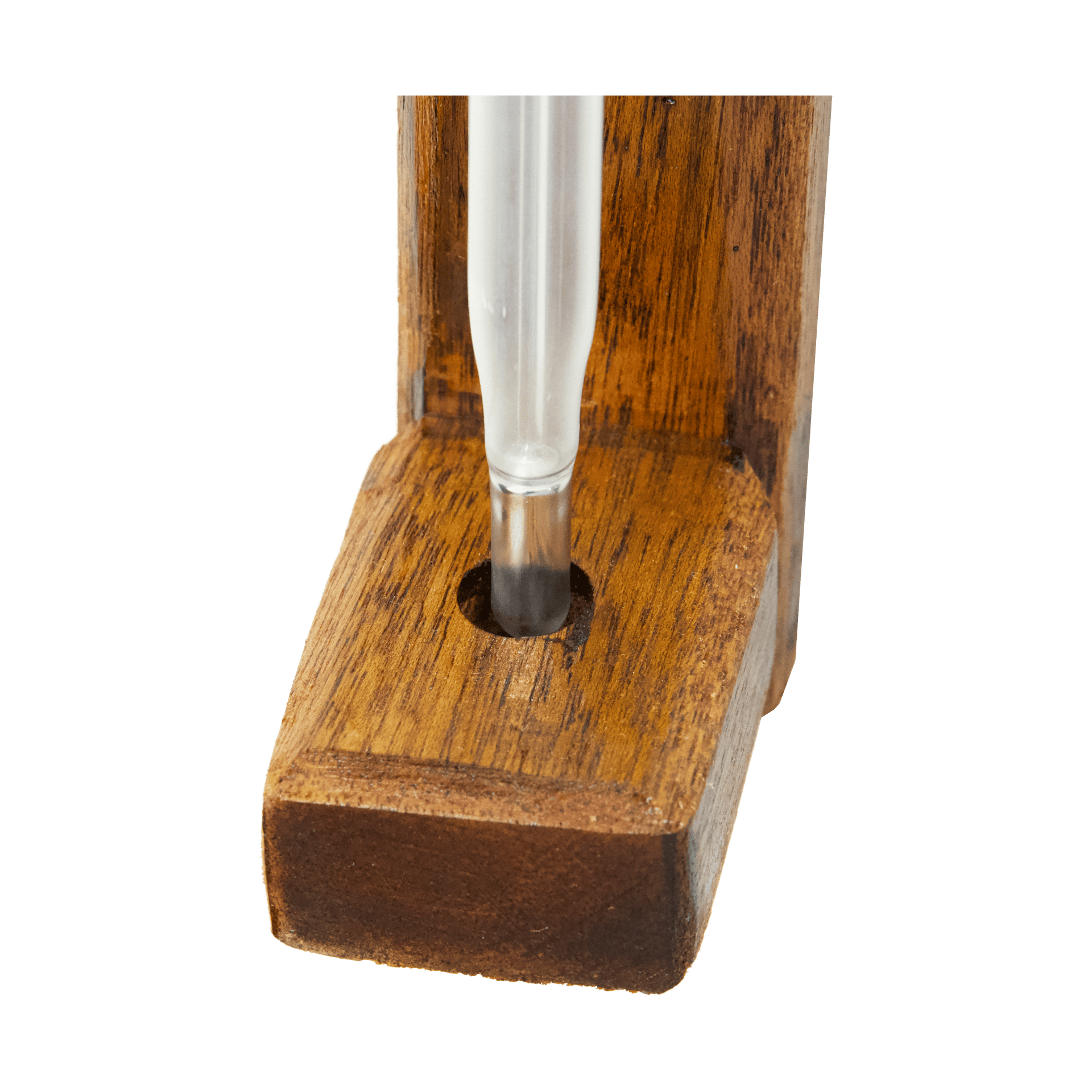

This example represents a classic long-format wall-mounted thermometer, installed within a substantial vertical frame made of solid oak. The wooden structure performs several functions simultaneously:

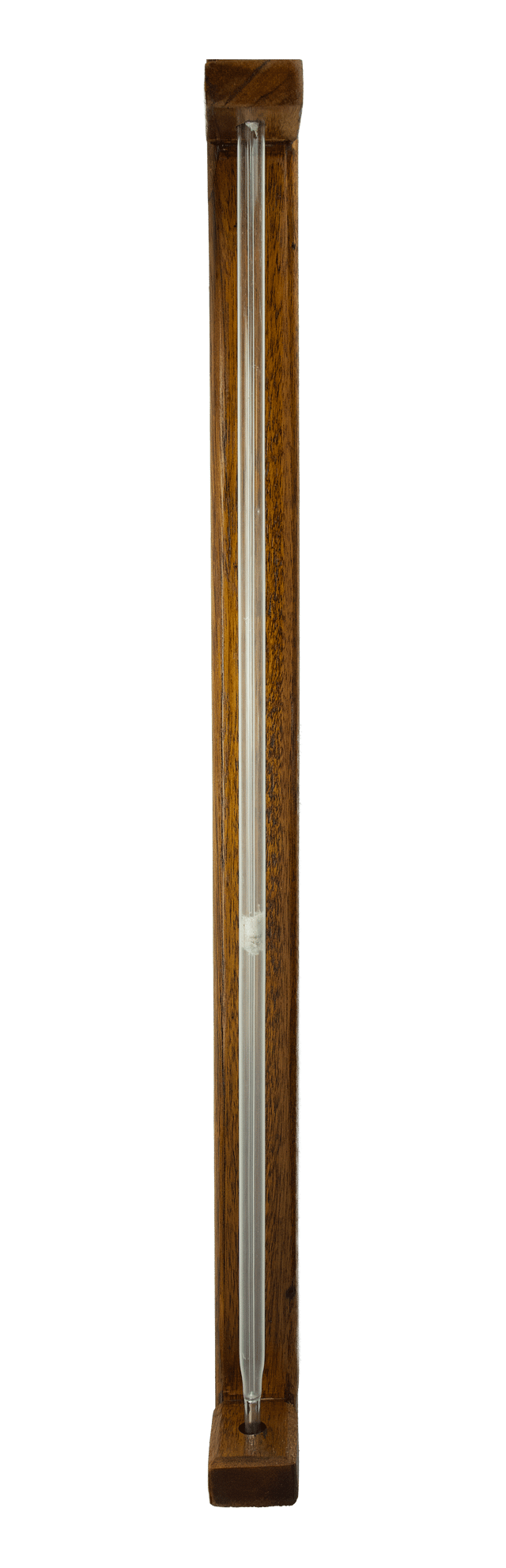

The thermometer itself consists of an elongated glass assembly with a total length of approximately 1.3 metres, a characteristic feature of gunpowder thermometers. Such dimensions are not decorative but dictated by operational requirements — low-light environments, the need for distant readability, and installation in confined or hard-to-access spaces.

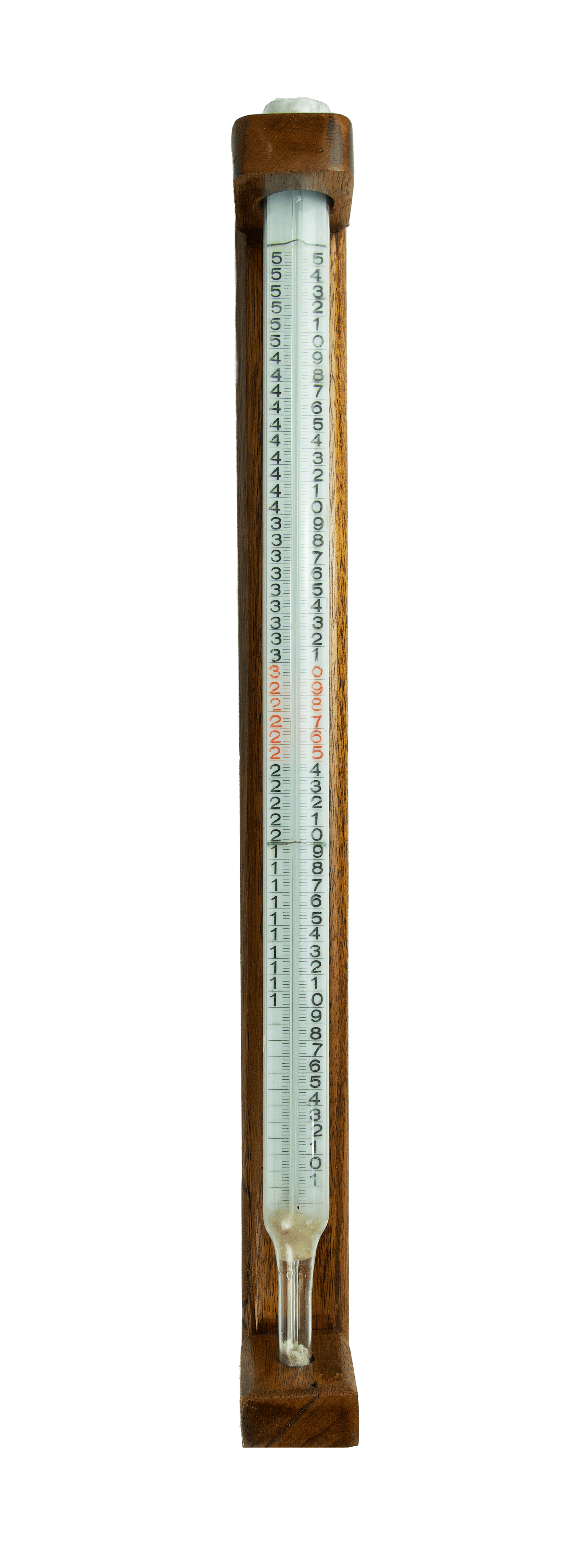

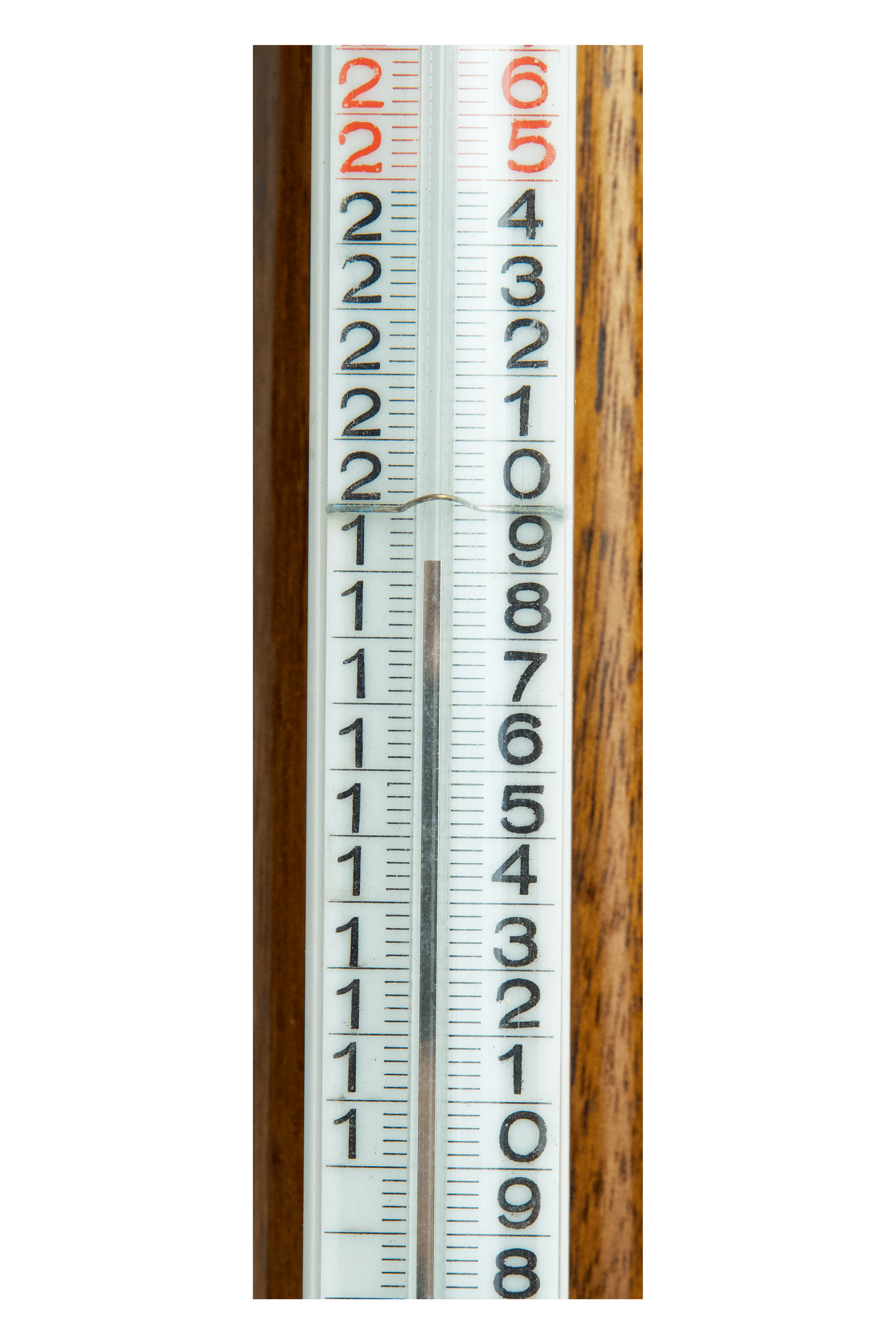

In its upper section, the tube widens to form the scale area. Here, a long scale plate made of opaline glass is mounted, bearing a temperature scale calibrated in degrees Celsius over the range from –2 to +55 °C. The scale exhibits a high degree of refinement:
Such visual organisation underscores the instrument’s functional purpose: it is designed not merely for observation, but for the rapid assessment of deviations from acceptable temperature conditions.
Of particular interest is the reverse side of the opaline scale plate, which bears a series of technical and metrological inscriptions in German, reflecting manufacturing standards and operating conditions. The maker’s logo of Pieterman–Van Baaren is present, confirming the industrial origin of the scale. The inscription “Fadentemperatur 20° C” (“thread temperature 20 °C”) refers to calibration conditions, indicating the ambient temperature at which the scale was adjusted and at which nominal accuracy is ensured. The phrase “Bis zur Skala eintauchend justiert” (“calibrated when immersed up to the scale”) specifies the immersion calibration method, an important parameter for long liquid-in-glass thermometers, as readings depend on the portion of the liquid column exposed to the measured medium. The marking “fein gekühlt” (“carefully cooled” or “finely cooled”) indicates a specific thermal treatment and stabilisation process of the thermometric liquid (mercury), involving controlled cooling cycles aimed at eliminating dissolved gases and ensuring continuity and stability of the mercury column. The designation “Normalglas” (“standard glass”) identifies the type of thermometer glass used, as distinct from special high-temperature or quartz compositions. Finally, the marking “centigrade” specifies the Celsius temperature scale, an important detail in mid-20th-century international practice. Taken together, these inscriptions form a kind of “passport” for the scale, revealing not only the manufacturer but also standards of accuracy, calibration methodology, and the technological culture of the instrument’s production.
Function and Application
The dimensions and construction of this thermometer directly indicate its intended field of use. Instruments of this type were employed in:
Their purpose was the continuous monitoring of storage temperature conditions. Temperature surveillance served several key functions:
Long thermometers were especially valued in deep or poorly lit environments, where a large, easily readable scale was essential. In industrial settings, they could be positioned so that readings could be observed from a safe distance from potentially hazardous processes.
Principle of Operation and Construction

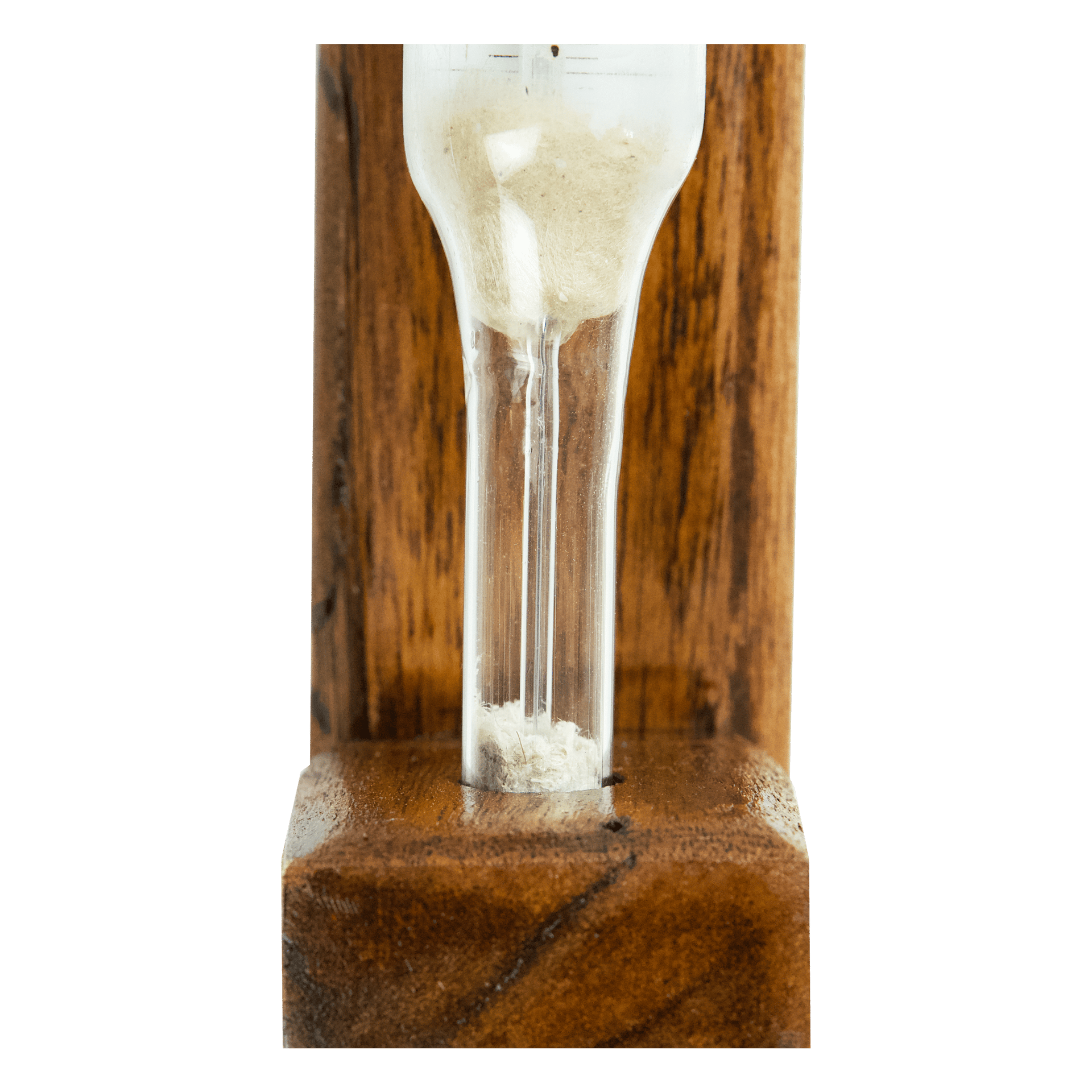

The instrument belongs to the class of liquid-in-glass thermometers. The thermometric column is enclosed within a glass system in which the main body of the liquid (mercury) is contained in a reservoir, while readings are taken along a fine capillary channel.
Its operation is based on a simple yet highly reliable physical principle: as temperature changes, the liquid expands or contracts, and this change in volume is translated into a corresponding change in the height of the column within the capillary.
Mercury was used due to its advantageous properties:
Capillary tubes of this length were produced by drawing from specialised thermometer glass, including the use of devices such as the Vello feeder, allowing precise control over:
The front wall of the capillary in the scale region is formed with a magnifying effect, functioning as a lens and visually enlarging the narrow mercury column.
The manufacturing process involved several stages:
Calibration relied on fixed temperature points, primarily:
These reference points formed the basis of historical thermometer metrology.
Conclusion
The gunpowder thermometer occupies a distinctive place in the history of military technology: it is not a dramatic device, but an instrument of routine discipline, linking the chemistry of explosives, storage architecture, and administrative control. It transforms the abstract danger of “thermal conditions” into a measurable parameter — temperature — subject to observation, recording, and regulation. For this reason, such instruments retained their importance both in the era of black powder and in the period of smokeless propellants.
It is important to emphasise that the production of this example around 1955 is not an anachronism. On the contrary, it reflects a well-established technical practice of the mid-20th century. Analog mercury thermometers remained dominant in industrial and military contexts until the 1970s–1990s, and in certain specialised applications even longer. This persistence can be explained by several factors.
First and foremost, reliability: a mercury thermometer requires no power supply, is immune to electromagnetic interference, and exhibits virtually no signal drift. In the storage of munitions, where safety is paramount, such autonomy was critical.
Secondly, metrological stability. Mercury thermometers were long regarded as reference instruments due to their linear scale, repeatability, and relative ease of calibration.
Equally important was intrinsic safety. In powder magazines and arsenals, all potential sources of sparks or electrical circuits were strictly avoided. A mercury thermometer, being entirely passive, was ideally suited to such environments.
Finally, operational simplicity must be considered: the instrument required no maintenance, adjustment, or specialised training — readings could be obtained directly by visual inspection.
Although thermocouples and other temperature sensors existed as early as the 19th and early 20th centuries, their widespread adoption began only in the 1960s–1970s, with the actual displacement of liquid-in-glass thermometers occurring in the 1980s–1990s, following the development of reliable, cost-effective, and explosion-proof electronic systems. The final transition to digital temperature monitoring belongs to the turn of the 21st century.
Thus, the present Pieterman–Van Baaren example represents not an obsolete relic, but a mature and rational form of instrument, optimally suited to the requirements of its time. It stands at the culmination of a long line of development — from early wall-mounted thermometers of the 18th and 19th centuries to late industrial examples of the mid-20th century — and clearly illustrates the enduring principle that the safety of munitions depends not only on their composition, but also on the strict and continuous control of their storage environment.
