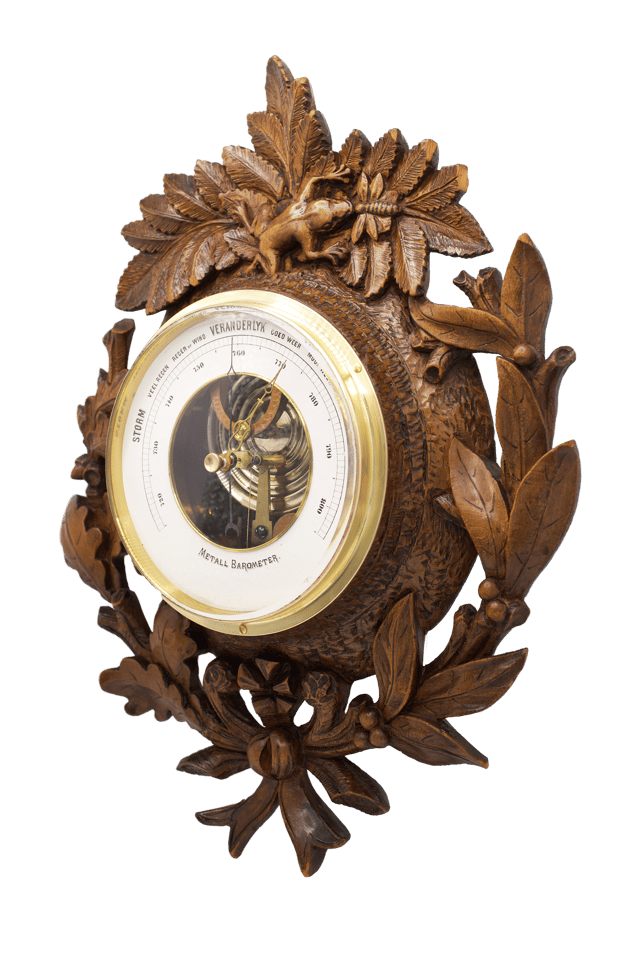

Before us is a Frog Motif Metal Barometer manufactured by the German maker R. Deutschbein, dating to approximately 1870 — an expressive example of a decorative aneroid barometer from the era of Black Forest carving, in which a mechanical scientific instrument was transformed into a полноценный element of hunting and Alpine interior design. Such barometers were intended primarily for Tyrolean, South German, and Swiss homes, hotels, and hunting chalets, especially during the widespread popularity of Jagdstil — the “hunting style” that combined a romanticized vision of forest nature with decorative and applied arts.

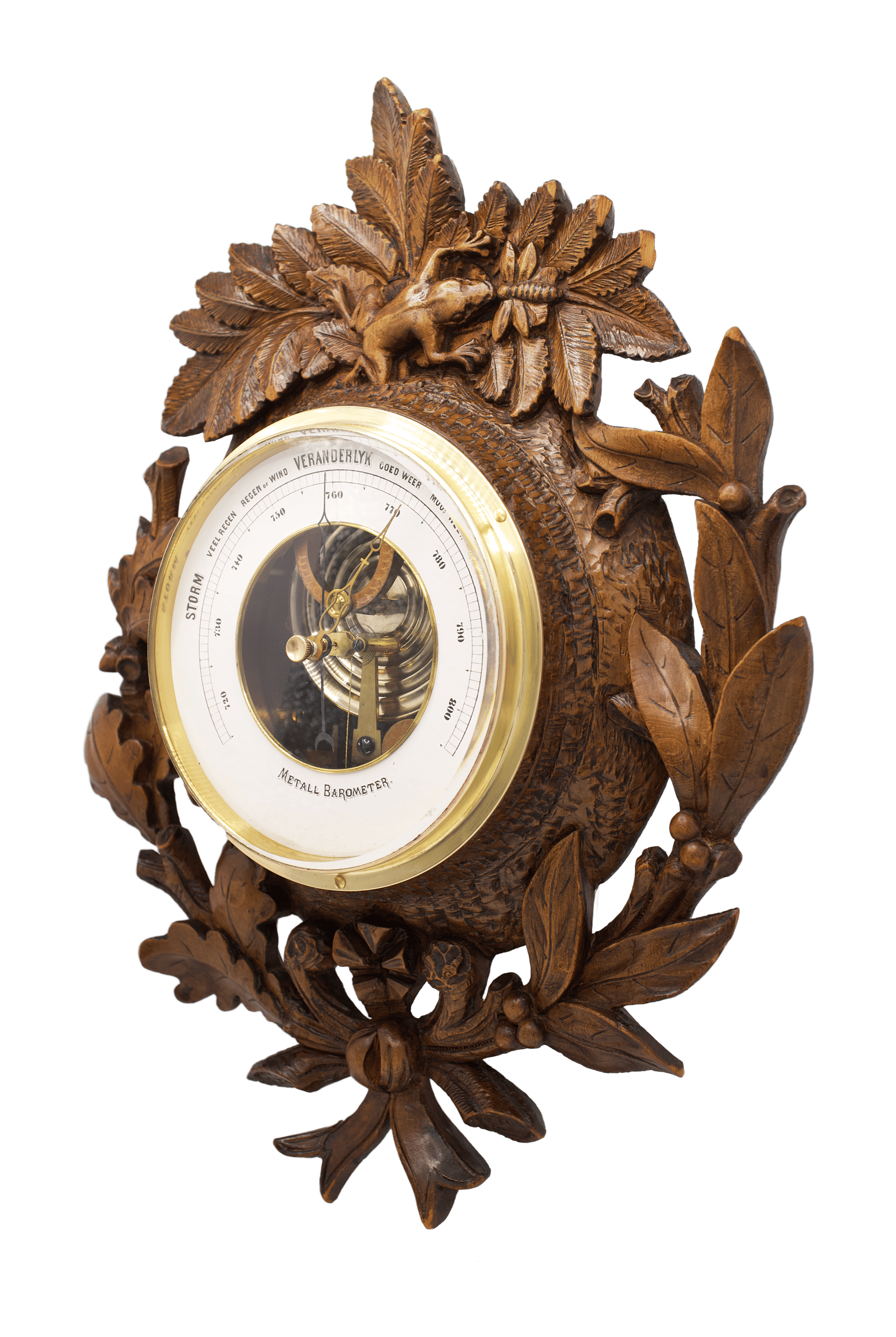

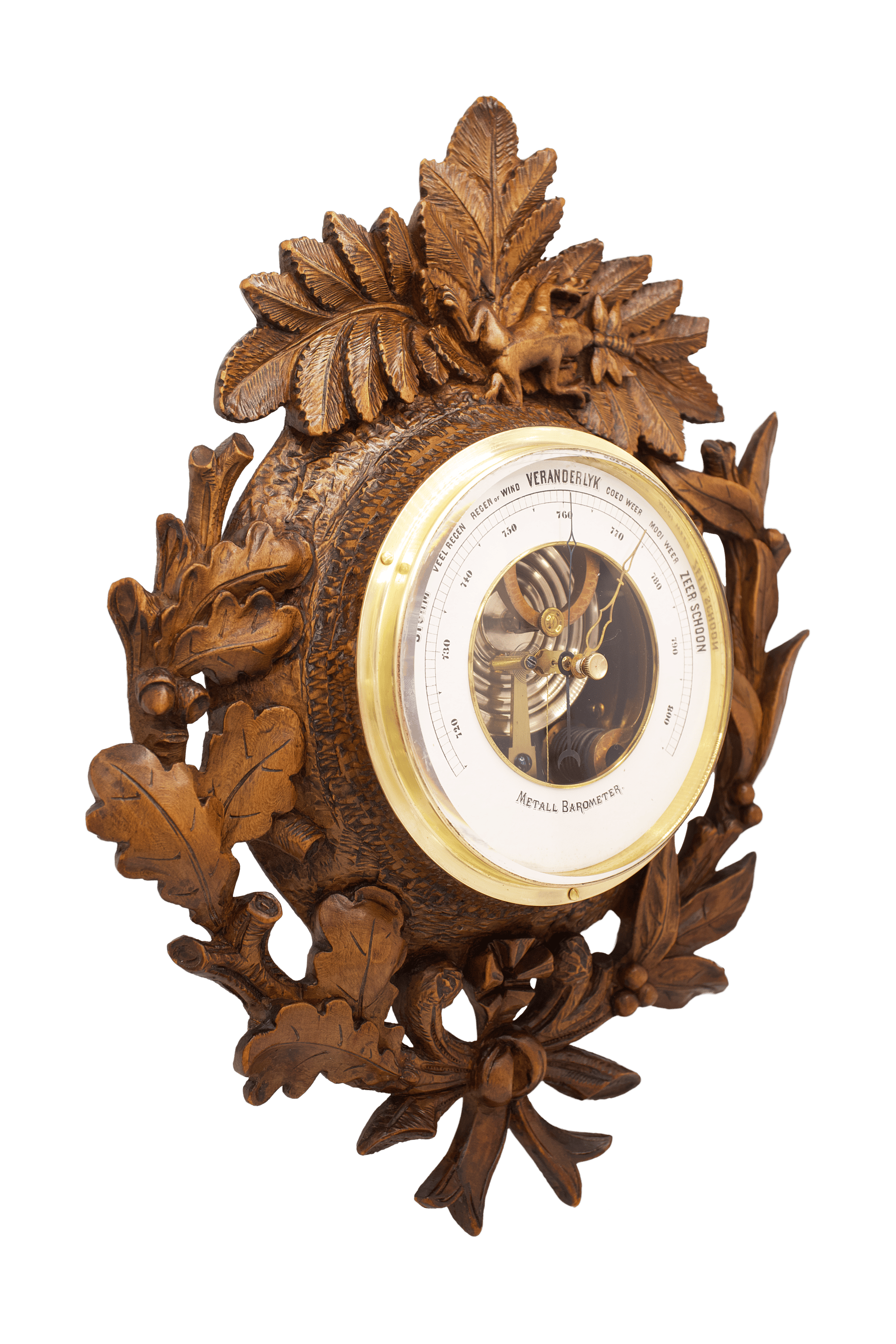

The case of the instrument is made of walnut and forms a complex multi-layered carved composition built entirely around natural motifs. The principal elements of the ornament are large oak leaves with acorns, symbolizing the forest, strength, and endurance. Between them appear other, more elongated leaves reminiscent of marsh or riverside vegetation, forming a separate naturalistic scene in the upper part of the case. The central decorative accent is a small carved frog depicted in the act of hunting an insect among the foliage.

Such a motif was not chosen accidentally. In nineteenth-century European folklore, the frog was traditionally associated with dampness, marshlands, rain, and changes in weather. Its presence on the barometer case transformed the instrument into an almost allegorical representation of humid atmosphere and natural cycles. Particularly remarkable is the fact that the carver did not limit himself to a symbolic depiction of the animal, but instead created a complete miniature scene of observation from nature, causing the case to resemble a small forest sculpture rather than a purely utilitarian instrument.

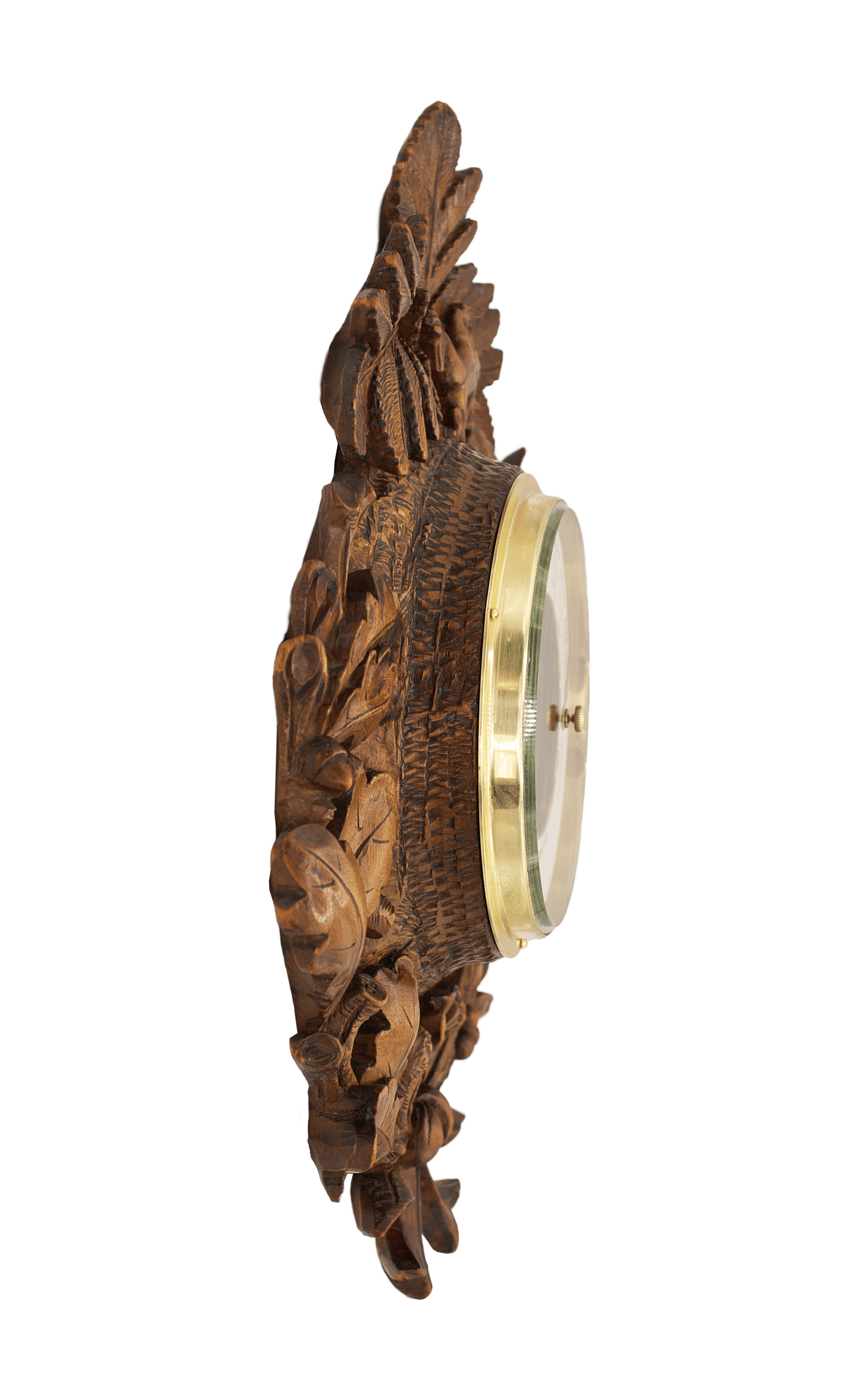

The case itself features deep relief carving with deliberately emphasized hand-worked surfaces. The background surrounding the central section is intentionally textured to imitate tree bark, reinforcing the impression of a natural woodland environment. The lower section terminates in a symmetrical composition of leaves and acorns forming an almost heraldic decorative arrangement.

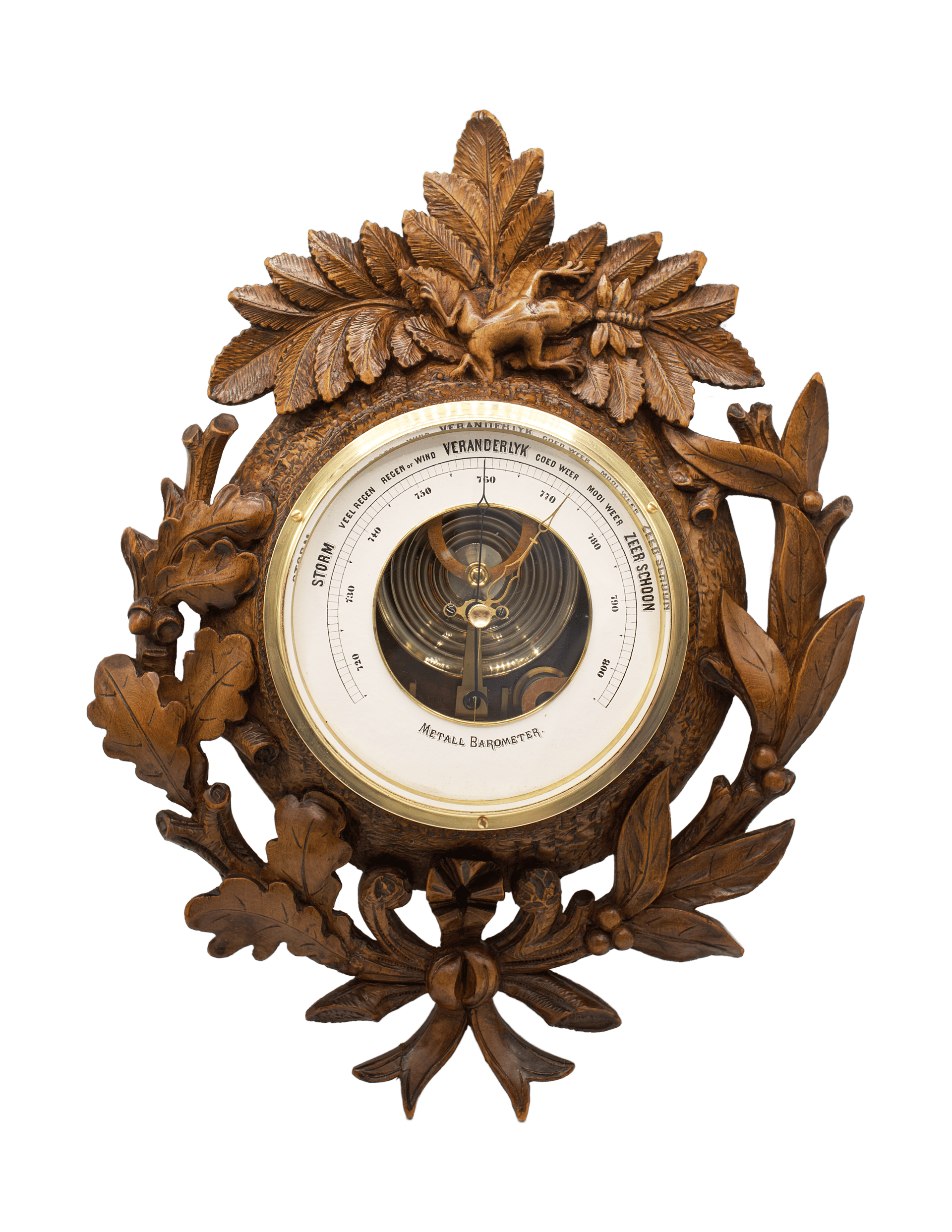

The dial is protected by a thin flat mineral glass mounted within a polished brass bezel. The dial itself is made of cardboard and belongs to the open type: the central section is left exposed, allowing the viewer to see the internal mechanism of the instrument. Such a construction was popular because it simultaneously demonstrated the technical sophistication of the instrument while turning the mechanism itself into part of the decorative composition.

The barometric scale is calibrated in millimetres of mercury within a range from 720 to 800 mm and is provided with detailed textual weather indications in Dutch. The presence of a Dutch-language scale clearly indicates that the instrument was intended for export to the Dutch market. At the lower portion of the dial appears the inscription “Metall Barometer,” emphasizing the fundamental distinction between this instrument and traditional mercury barometers.

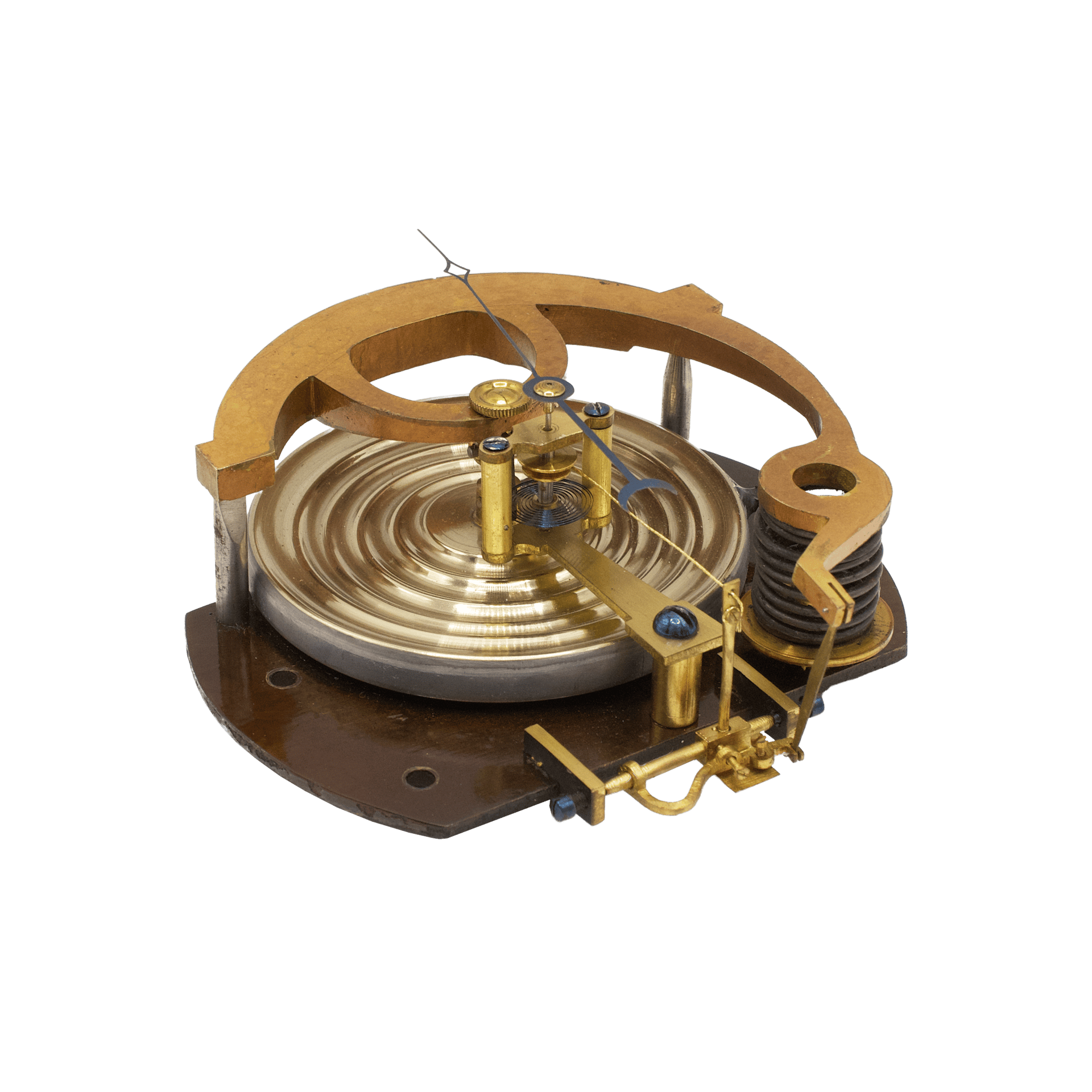

In this case, the mechanism is based upon a German silver aneroid capsule composed of two corrugated diaphragms joined together around their edges, from whose internal volume the air had been evacuated. Variations in atmospheric pressure produced microscopic deformations of this capsule, which were then transmitted to the indicating mechanism.

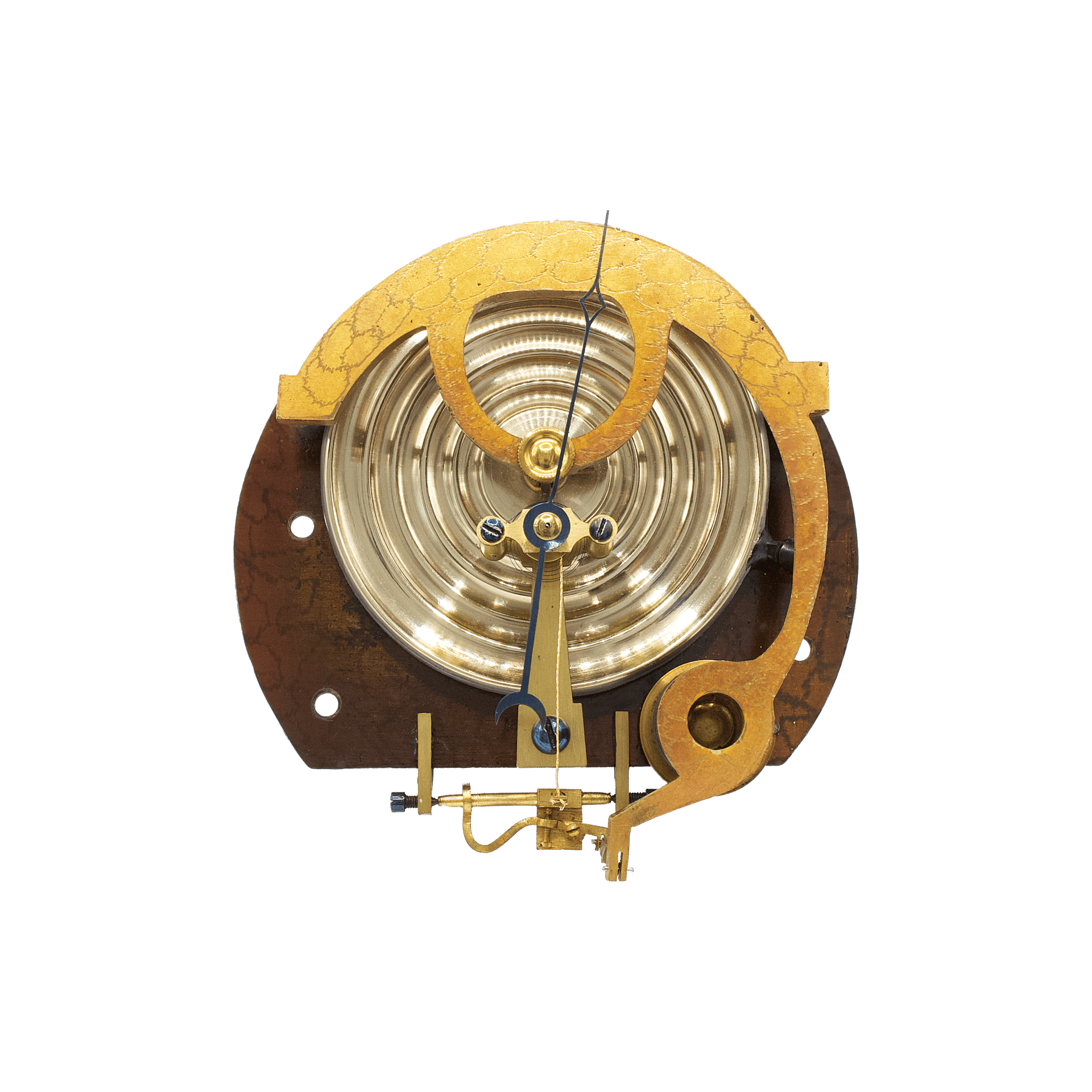

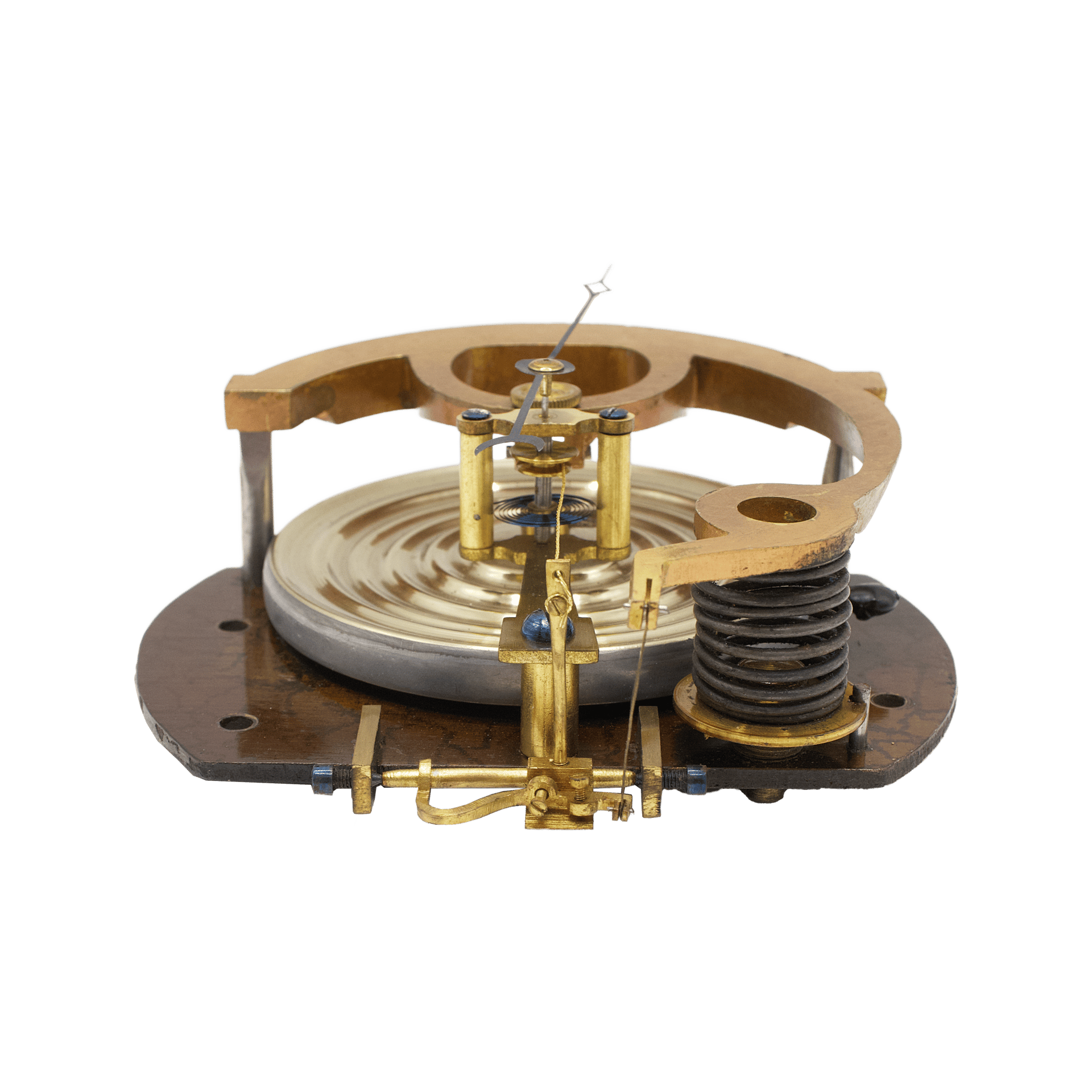

The capsule is tensioned upon an exceptionally expressive brass lever whose lower end rests upon a coil spring. The lever itself is executed in a flowing biomorphic form simultaneously reminiscent of a curved plant stem, a violin scroll, and a decorative S-shaped Rococo line. Its upper section forms a broad arc almost resembling a horseshoe or an elongated lyre, giving the mechanism an appearance that feels more jewel-like or horological than purely technical.

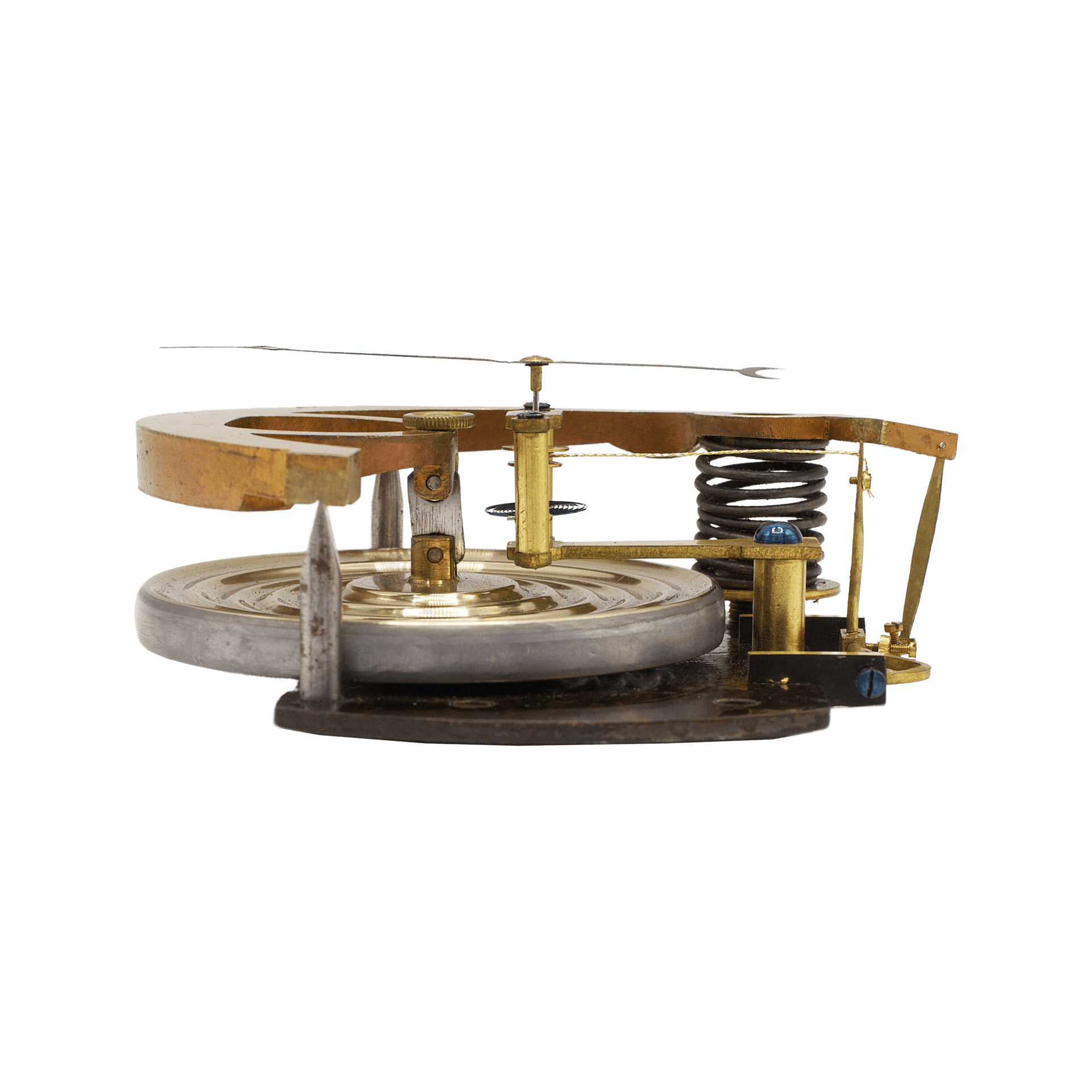

The principal arbor of the mechanism — a particularly characteristic feature of R. Deutschbein’s work — is carried outside the main frame upon two separate pillars. Motion is transmitted to the pointer arbor by means of a fine thread, another characteristic feature frequently encountered in Deutschbein mechanisms.

Overall, this barometer represents one of the most characteristic examples of the period in which German aneroid barometers simultaneously existed as scientific instruments, decorative carving, and elements of interior art. Here, the mechanical ingenuity of the nineteenth century is combined with a romanticized vision of forest nature, allowing the instrument to be perceived not merely as a device for measuring atmospheric pressure, but as a fully realized artistic object of the Jagdstil era.
