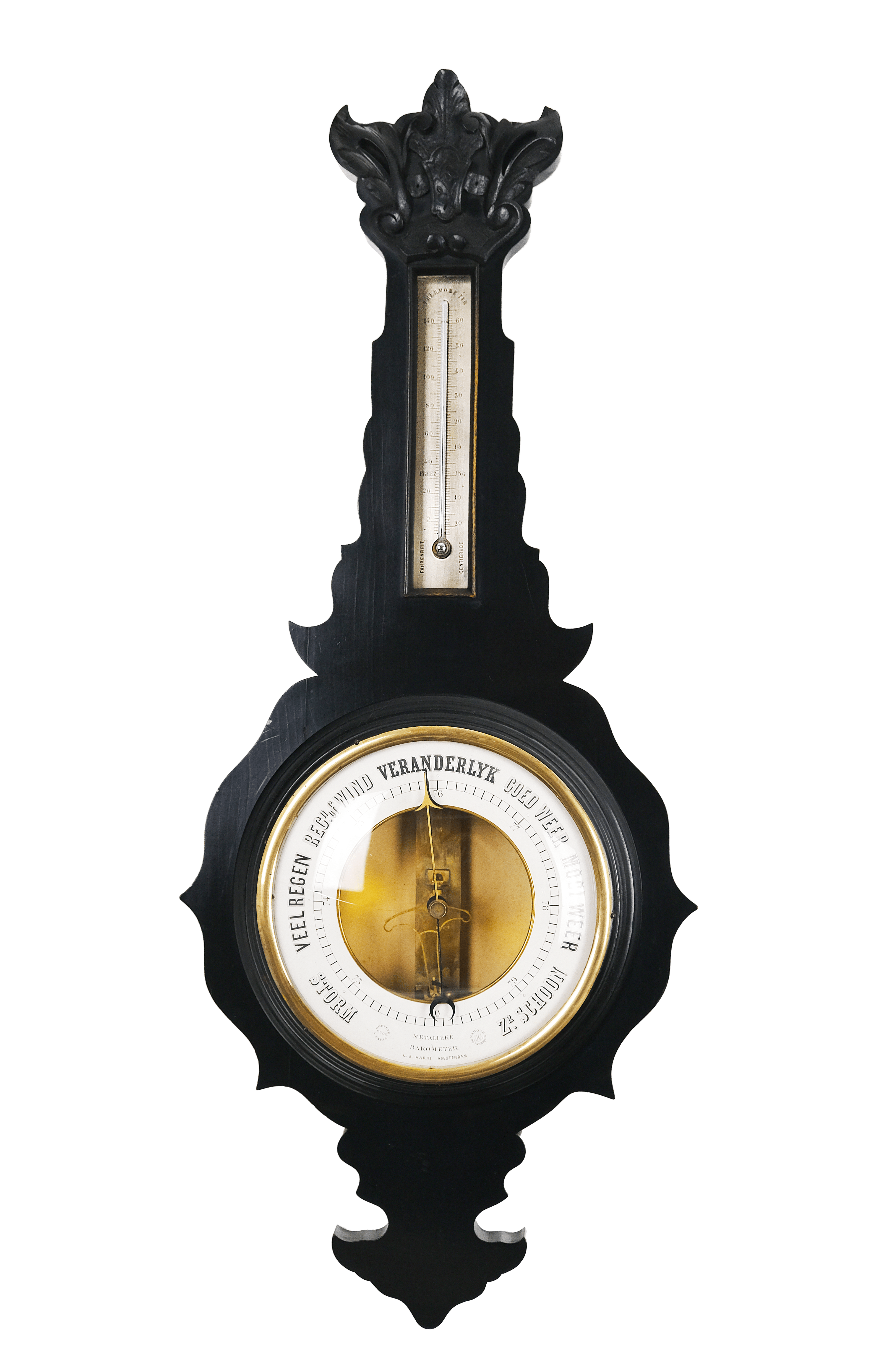

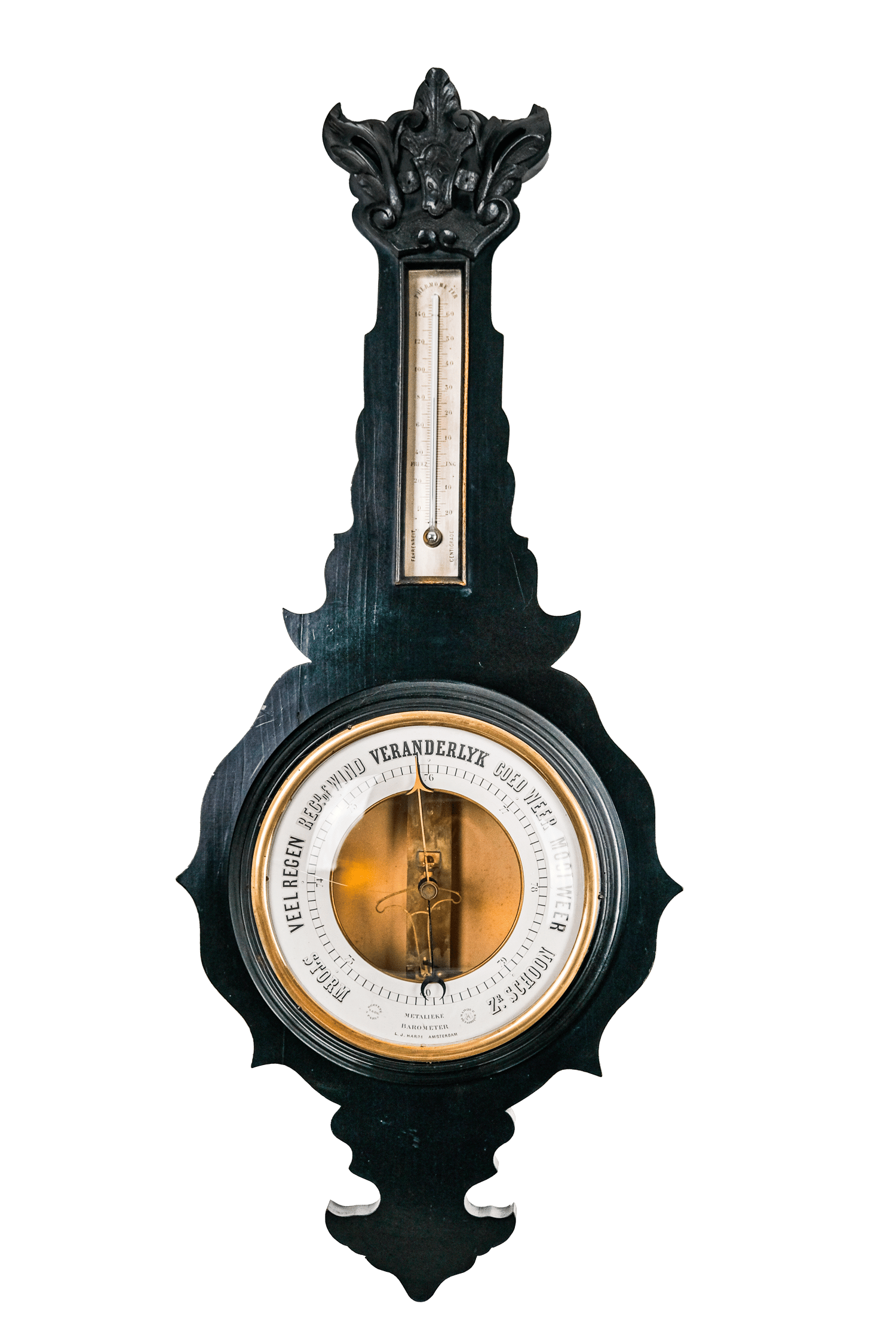

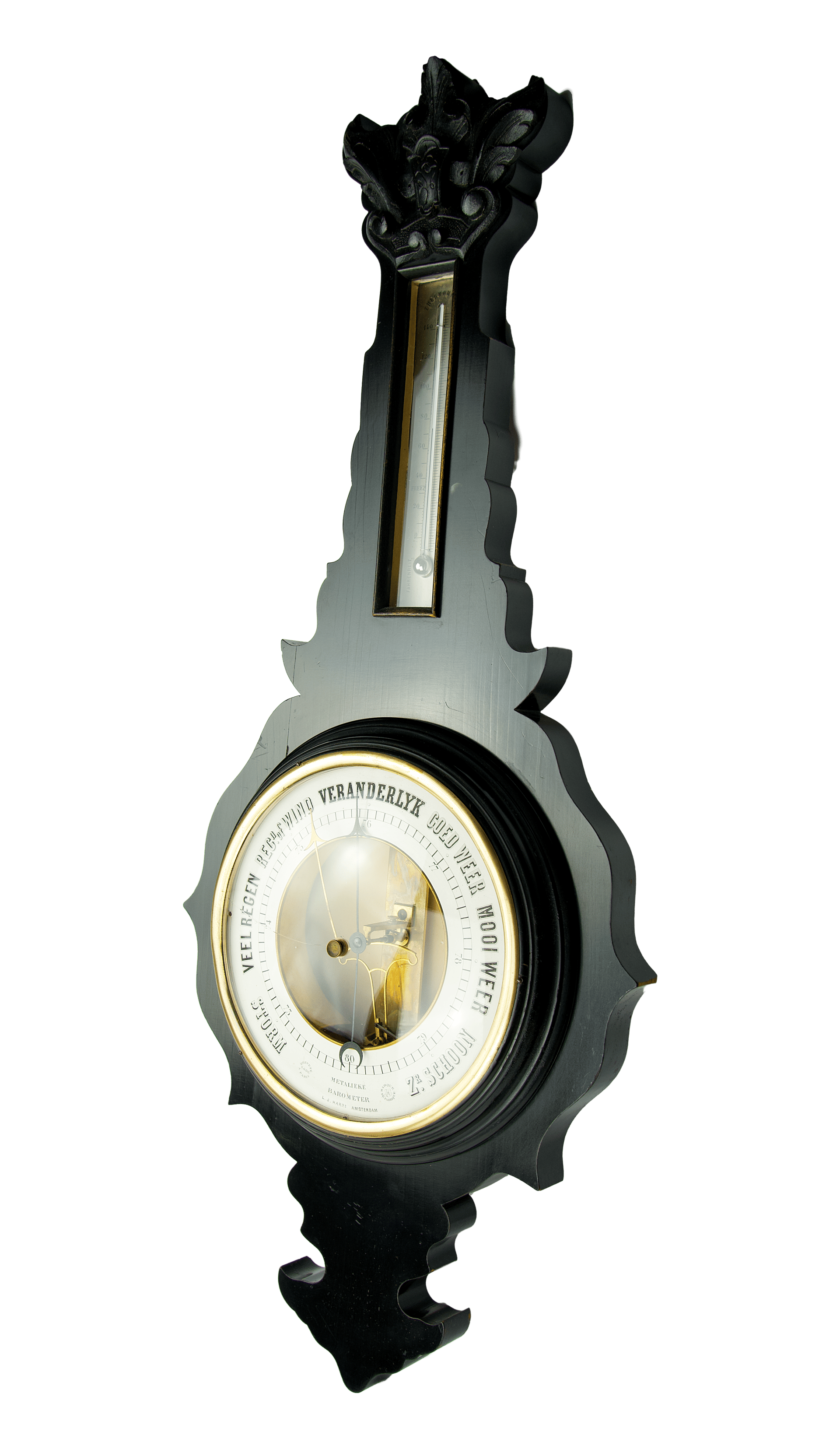

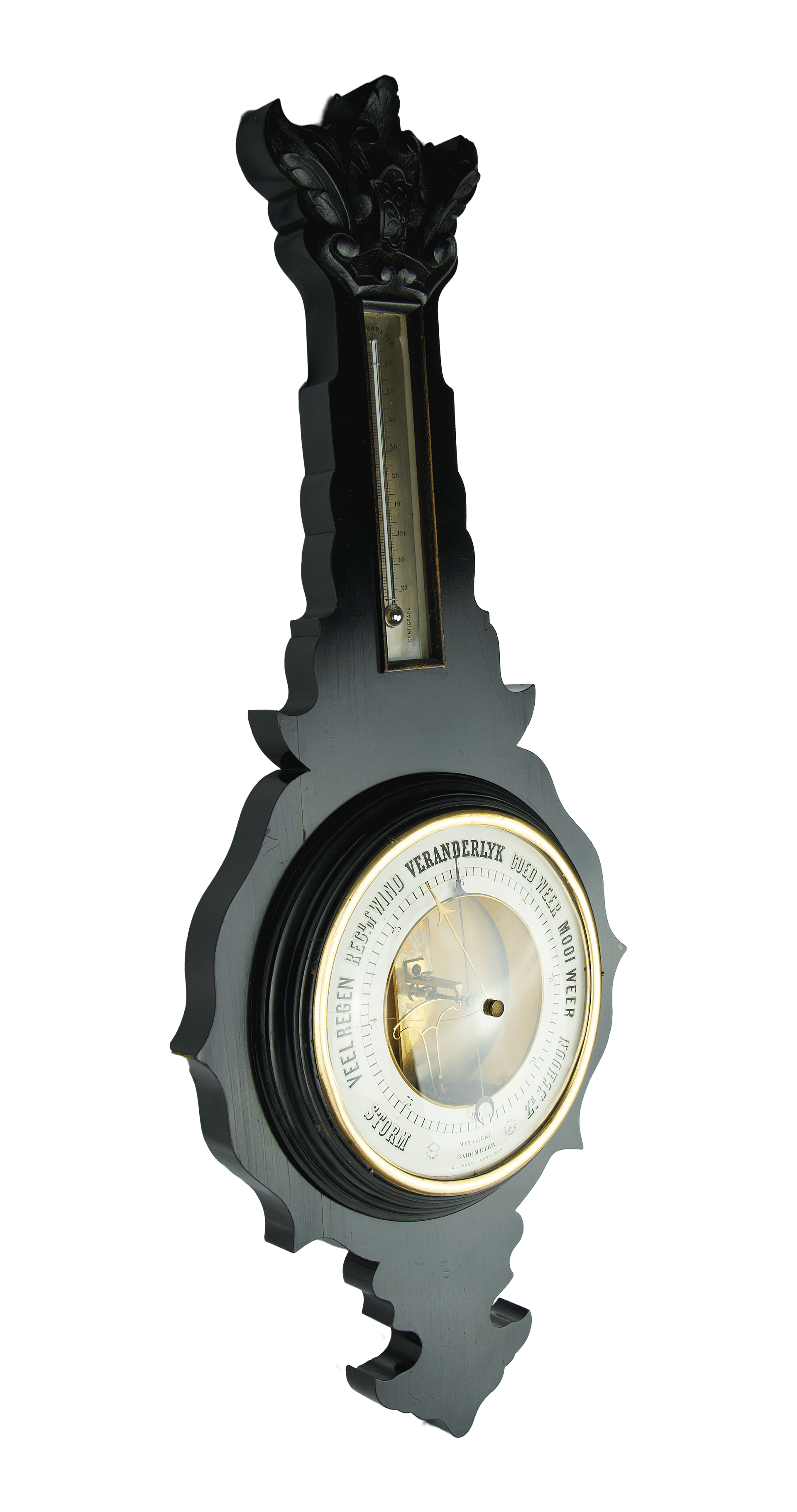

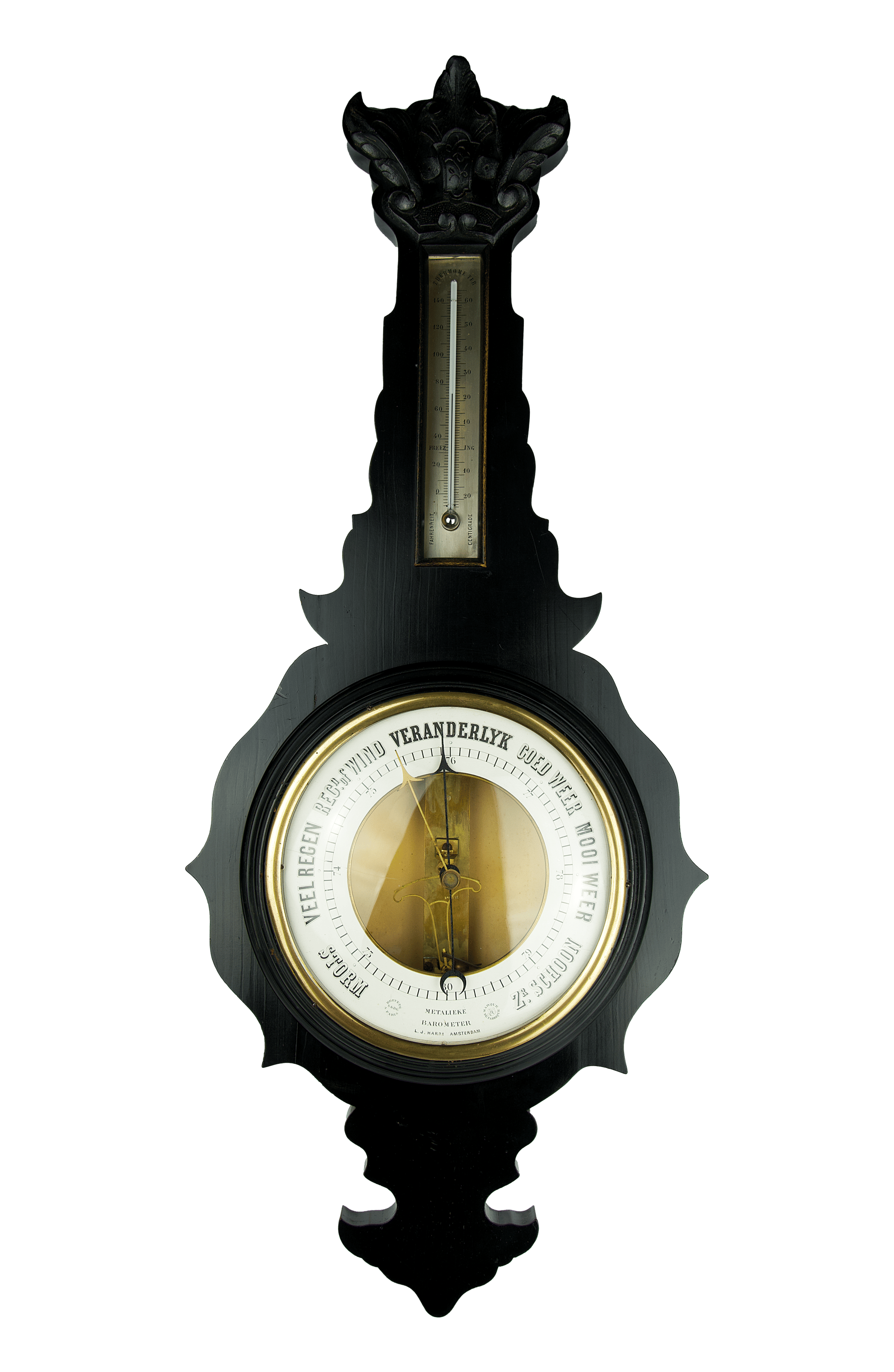

This is a Large Bourdon Barometer, made around 1880 by the French firm E. Hüe and signed by the Dutch retailer L.J. Harri of Amsterdam. The wall-mounted instrument has an elongated, shaped outline. A narrow neck housing the thermometer widens into the round dial case and ends below in a shaped pendant. A rhythm of soft swells, pointed projections and concave curves defines the silhouette, so a large instrument still looks elegant rather than heavy.
The case is cut from a panel of softwood joined from several boards. The front and edges are ebonised, stained a deep black in imitation of ebony, while the reverse has no decorative finish. The growth rings show through the black finish in faint relief, so the surface never looks lifeless. The deep black surface absorbs the light and gives a sense of restrained power and mystery, which makes the white dial and the brass bezel stand out all the more clearly. A turned, moulded ring frames the dial and steps the plane of the case down towards the brass.
late Bourdon
brass, glass, wood

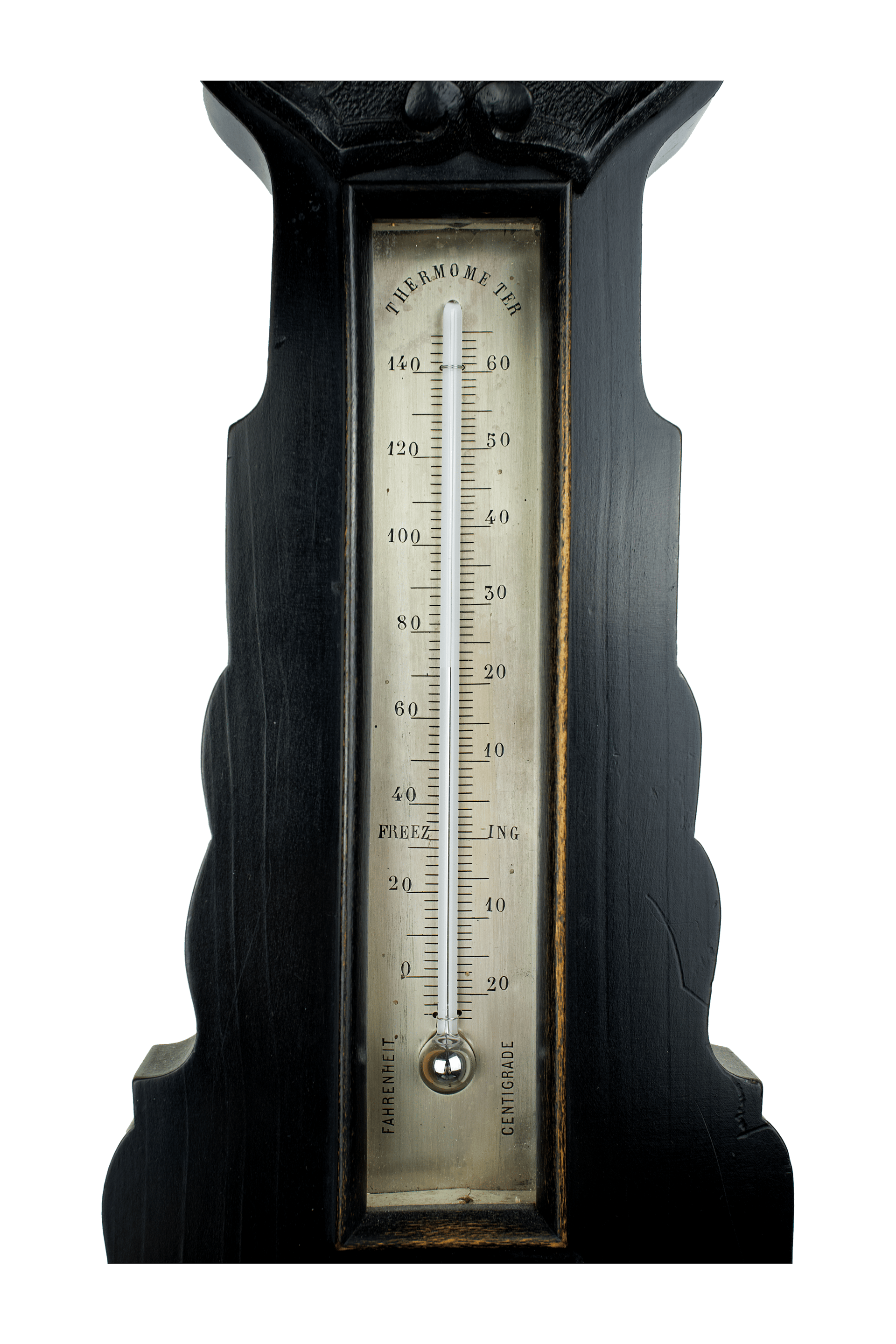

The neck of the case holds a glazed recess with a narrow surrounding frame. Inside it sits a mercury thermometer mounted on a silvered brass plate, engraved with Fahrenheit and Centigrade scales.

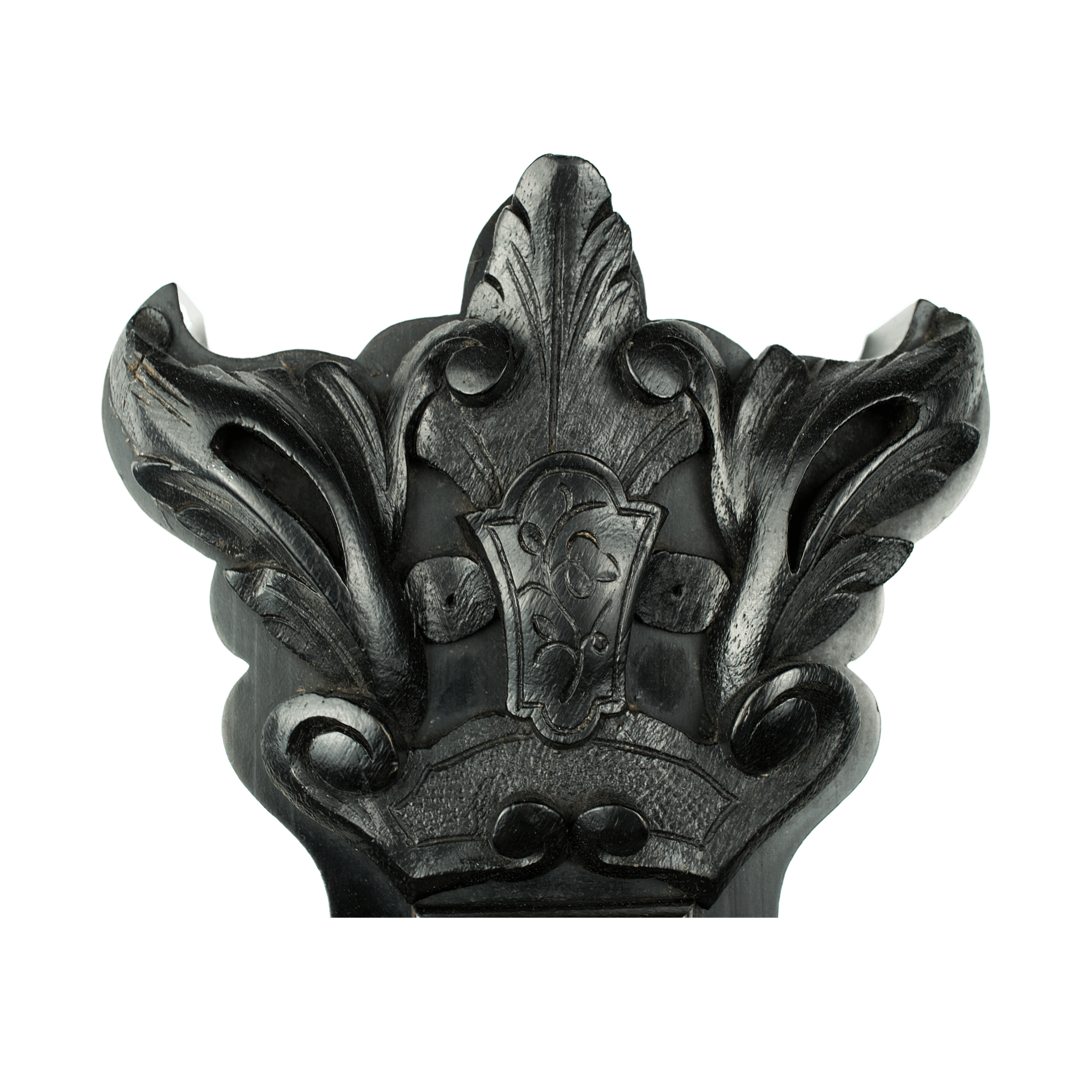

A carved acanthus crest crowns the case. At its centre is a motif styled as a heraldic shield, engraved with a scrolling floral stem. Three acanthus leaves spread from the shield: the middle one rises upright, and the two side leaves curve outwards and end in volutes. The crest rests on a band with a punched, textured ground and a pair of matching scrolls. The carving is assured and sculptural, and the deep shadows between the lobes of the leaves keep it expressive despite the solid black finish.

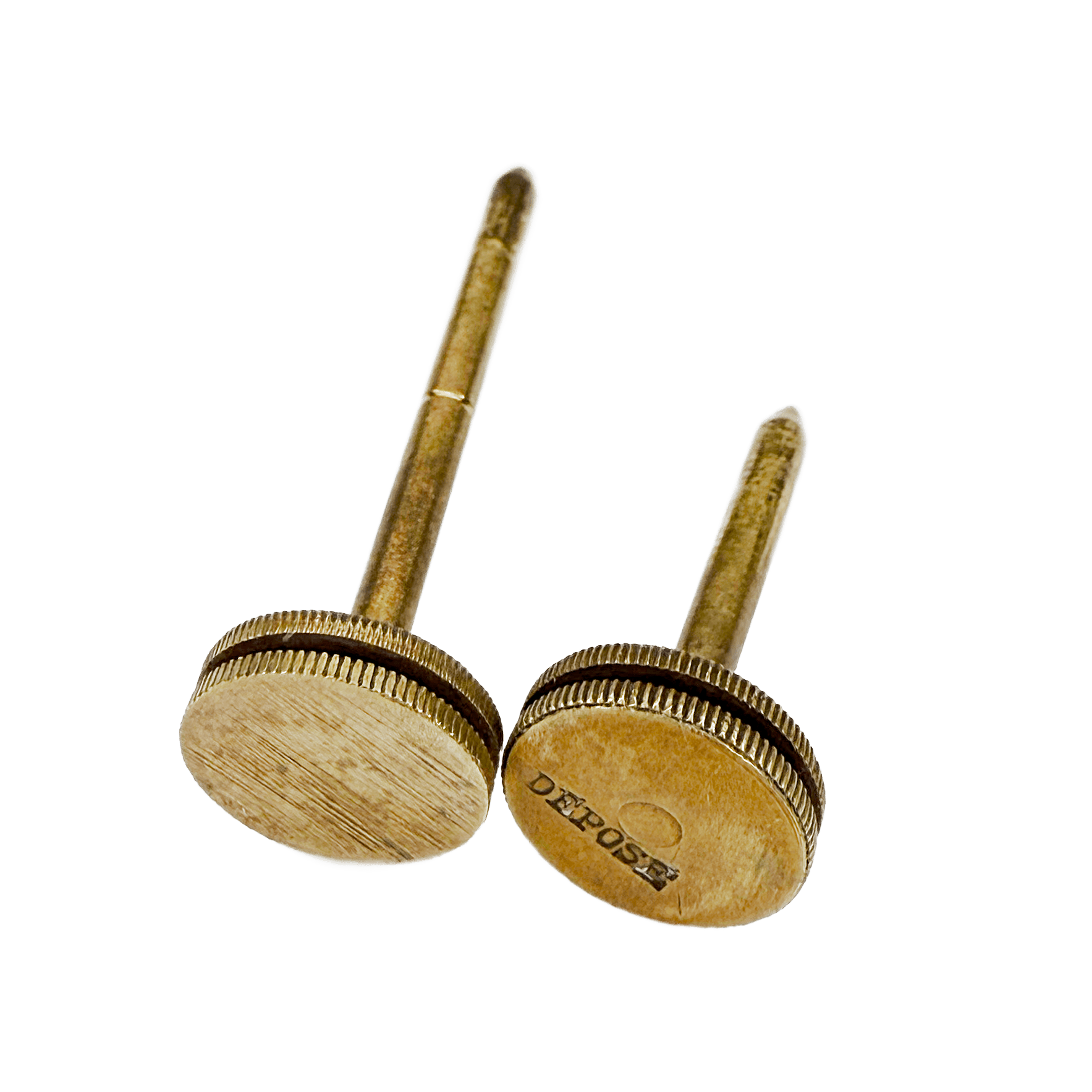

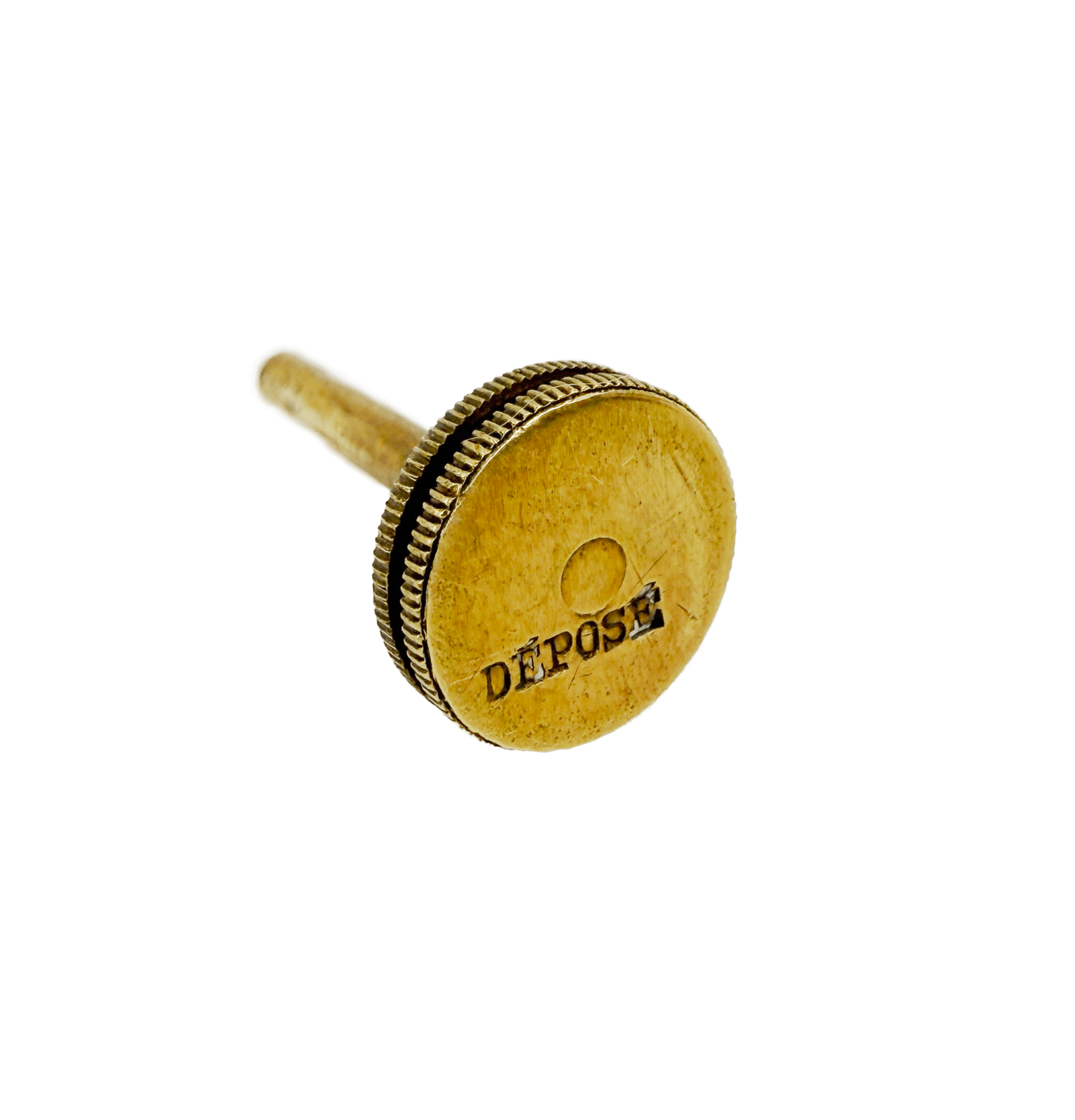

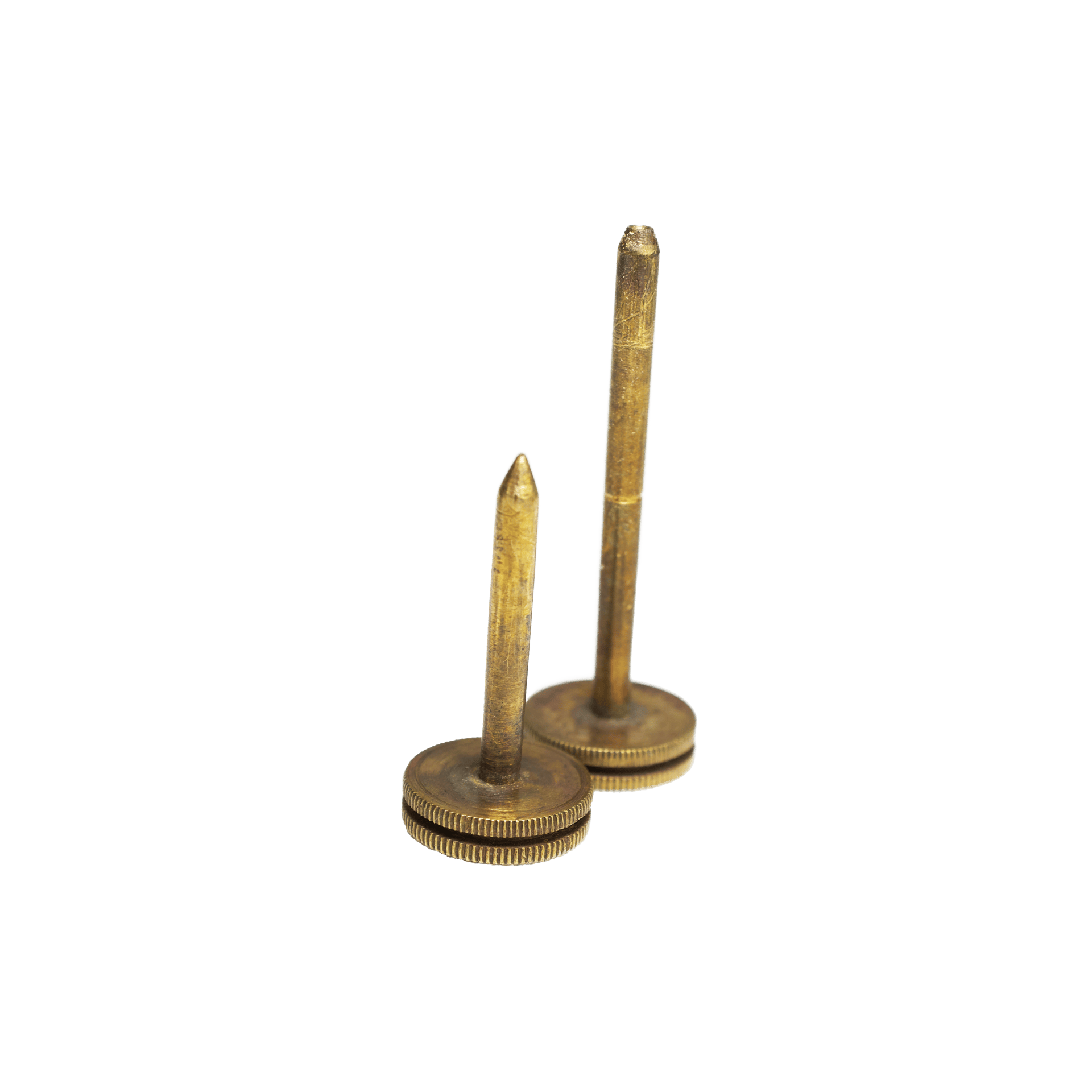

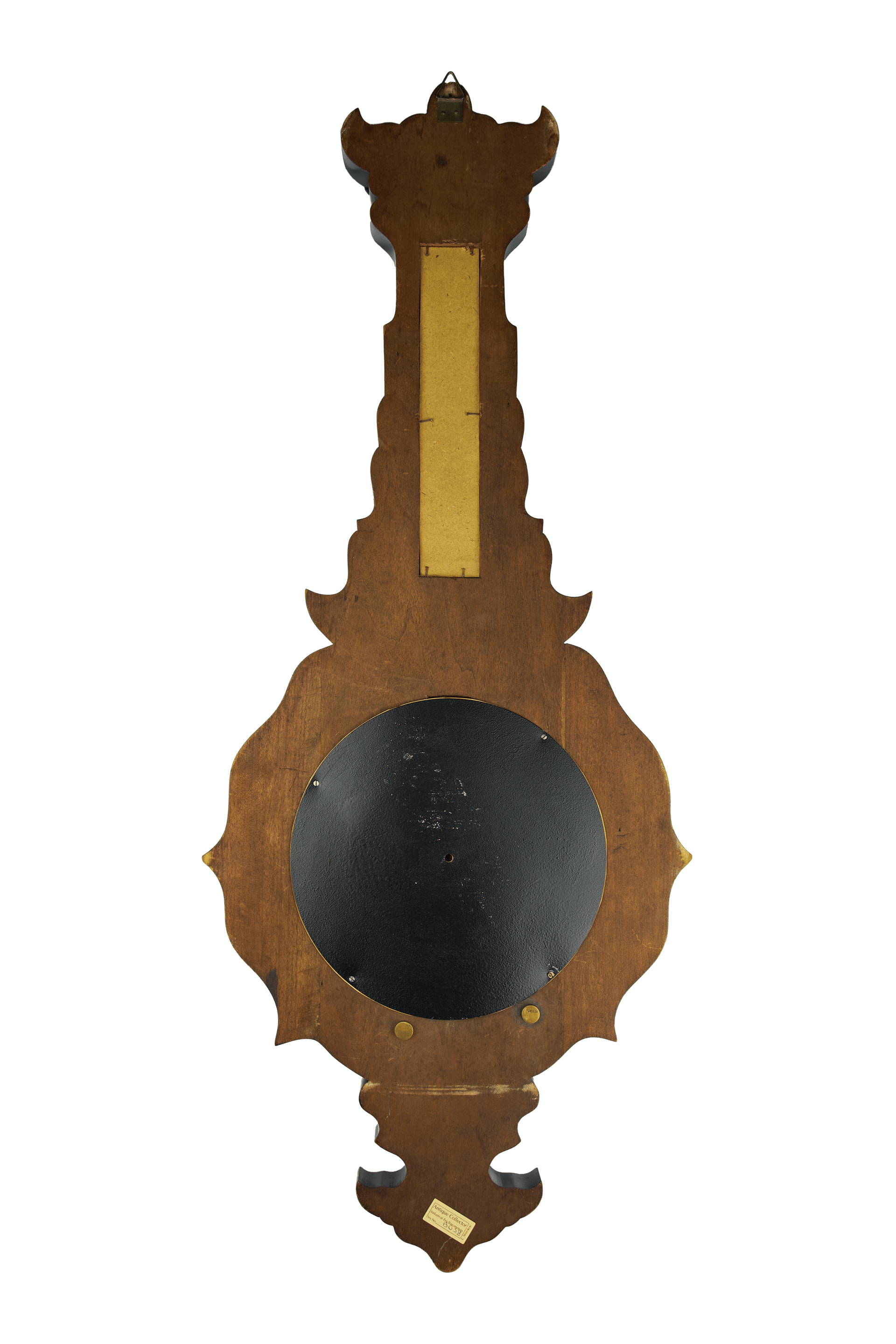

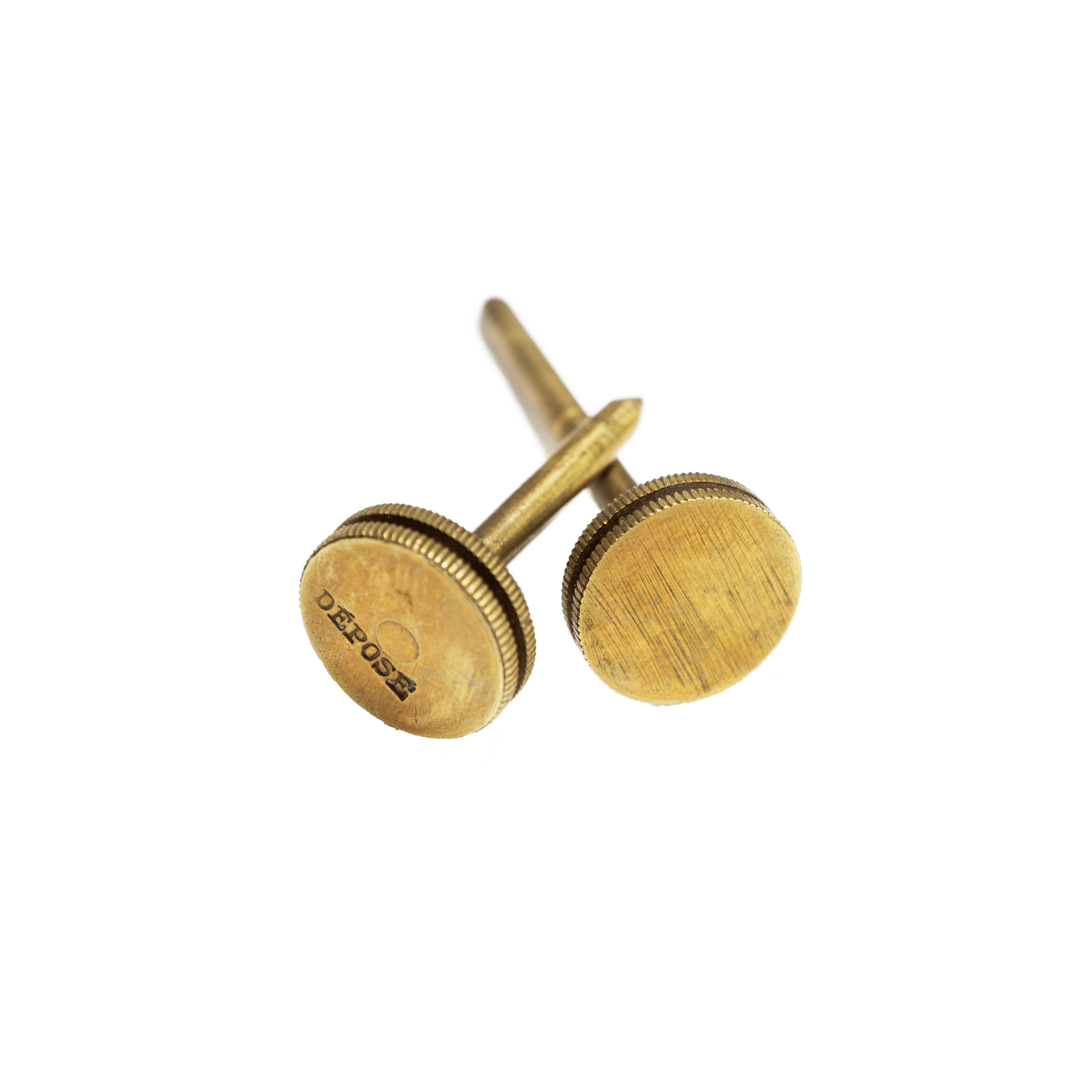

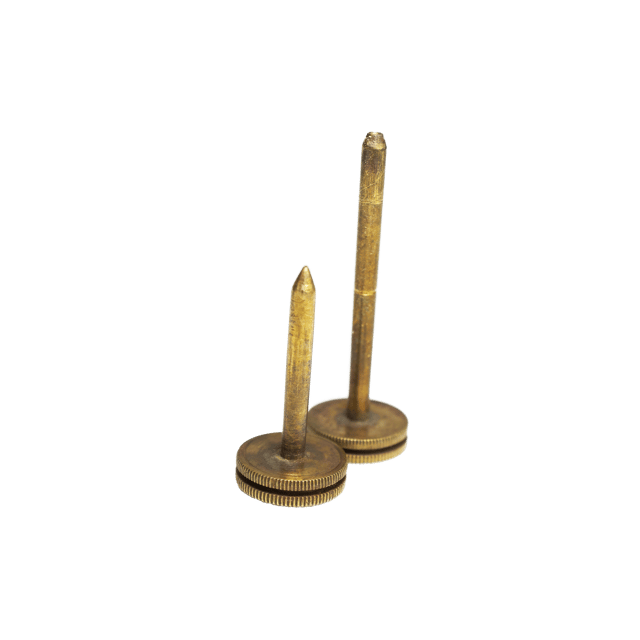

The transport-locking key for the barometer movement is housed out of sight on the back of the case. It is a small functional piece in the form of a pin with a knurled brass head engraved "DÉPOSE" ("removal"). Beside it sits a second, longer pin without any inscription, which serves as the calibration key.
Unlike aneroid barometers, Bourdon barometers have both a dedicated transport-locking mechanism and a calibration system. The transport key fits into the central hole in the back panel. It presses a spring-loaded lever that sits in the same plane, close to the pointer arbor, so that the lever's wedge engages the toothed rim of the friction-mounted drive wheel. This locks the whole gear train, and with it the Bourdon tube, so no part of the movement can shift during transport.
A different key, with a square socket, is used for calibration, including adjusting the reading for altitude above sea level. Inserted into the same central hole, it first locks the gear train in the same way and then engages the square end of the arbor. The arbor and pointer can then be turned on their own while the gear train stays locked. This works because the wheel is friction-fitted on the arbor. The arrangement replaced the awkward procedure of removing the glass and the pointer, so the instrument could be reset without being opened.

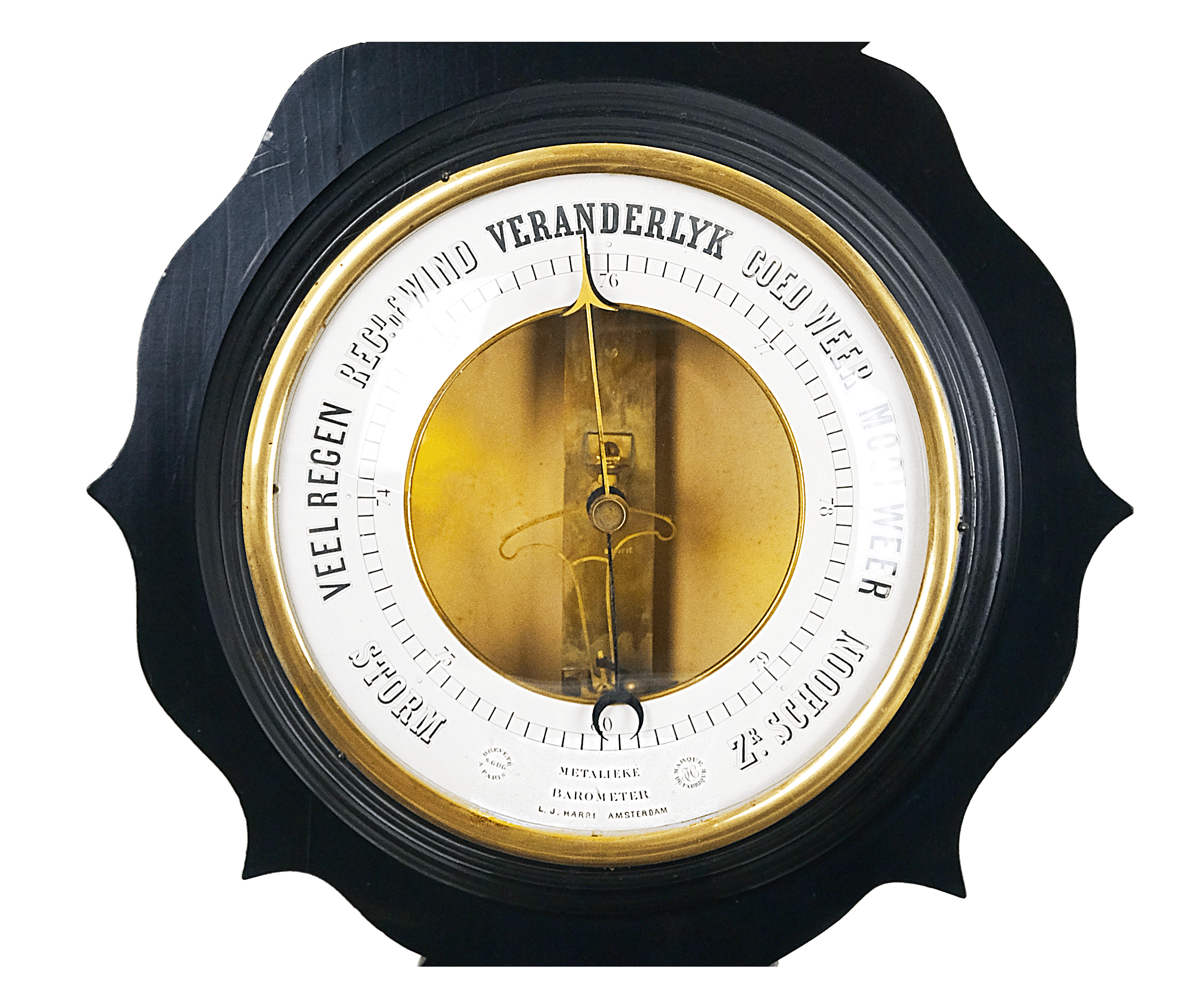

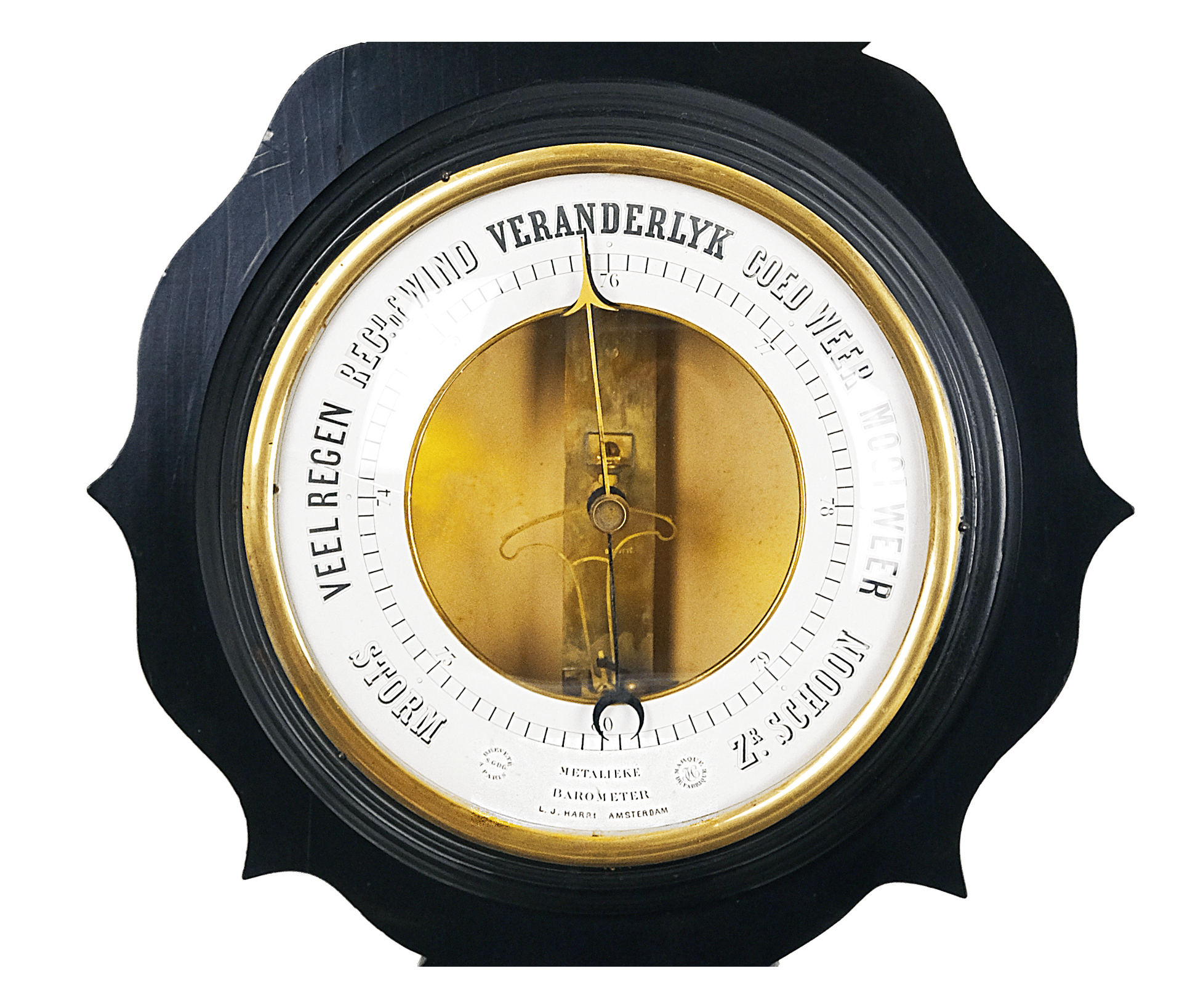

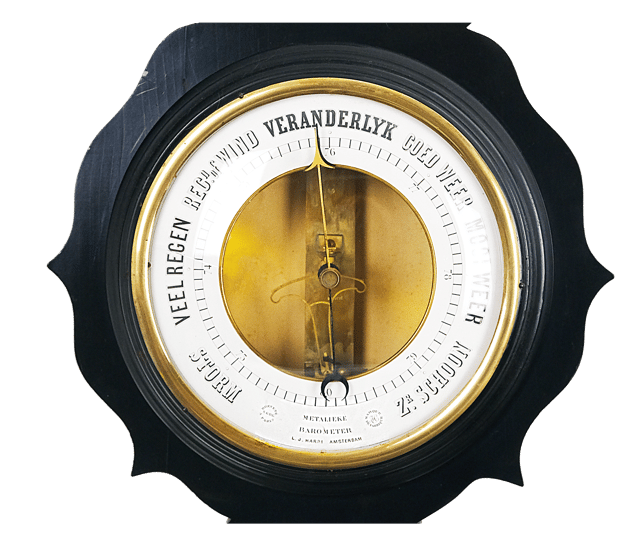

The open dial is made of card. A wide central aperture edged with brass reveals the movement: the brass mounting plate and the curved arms of the toothed sector. The concentric barometric scale is graduated in centimetres of mercury and numbered from 73 to 80 cm. Around its outer edge runs a detailed weather indication in Dutch, in the old spelling: STORM ("storm"), VEEL REGEN ("much rain"), REGEN OF WIND ("rain or wind", abbreviated), VERANDERLYK ("change"), GOED WEER ("fair"), MOOI WEER ("fine") and ZEER SCHOON ("very fine", abbreviated "Zr."). The spelling VERANDERLYK, with "y" in place of the modern "ij", is typical of 19th-century Dutch lettering.
Centred in the lower part of the dial is the inscription METALIEKE BAROMETER / L. J. HARRI AMSTERDAM. It echoes the name Eugène Bourdon himself gave the instrument: "baromètre métallique", the metallic barometer. Two circular marks flank it. On the left is "BREVETÉ S.G.D.G. À PARIS", a French patent "without government guarantee". On the right is "MARQUE DE FABRIQUE" with an inset monogram. A blued steel indicator hand with a crescent-shaped counterpoise shows the reading. A second, gilt set hand records the previous reading and is turned by a central knob. A convex glass set in a slim brass bezel protects the dial, and small iron pins hold the bezel to the case.
The sensing element is a Bourdon tube: a C-shaped brass tube with a flattened, pointed-oval cross-section, from which the air has been evacuated. Its outer surface is larger than its inner one, so atmospheric pressure acts on it with greater force. When pressure rises, the tube curls more tightly and its cross-section flattens. When pressure falls, the curve relaxes, the cross-section becomes rounder and the ends of the tube move apart. The tube hangs freely from the apex of its arc, without clamping. This lets it settle slightly off-centre relative to the axis of the transmission and makes up for the unavoidable variations in its wall thickness.
The movements of the tube ends are very small, so they reach the pointer through a two-stage multiplying train. Two links attached to the ends of the tube rotate a toothed sector, whose lever ratio gives the first stage of magnification. The second stage comes from the toothed arc of the sector meshing with a pinion on the pointer arbor: a swing of the sector of only about 20° turns the pointer almost a full revolution. A cylindrical counterweight below the pivot balances the sector, which removes the error when the instrument is tilted from vertical. A small ball weight beside the pivot keeps constant pressure on the joints and gearing, so there is no backlash and the instrument responds even to small reversals of pressure. The links are attached to sliding holders that move along the two arms of the sector. This adjustment allowed the movement to be matched precisely to a given scale, and the Hüe firm used it until the end of production.

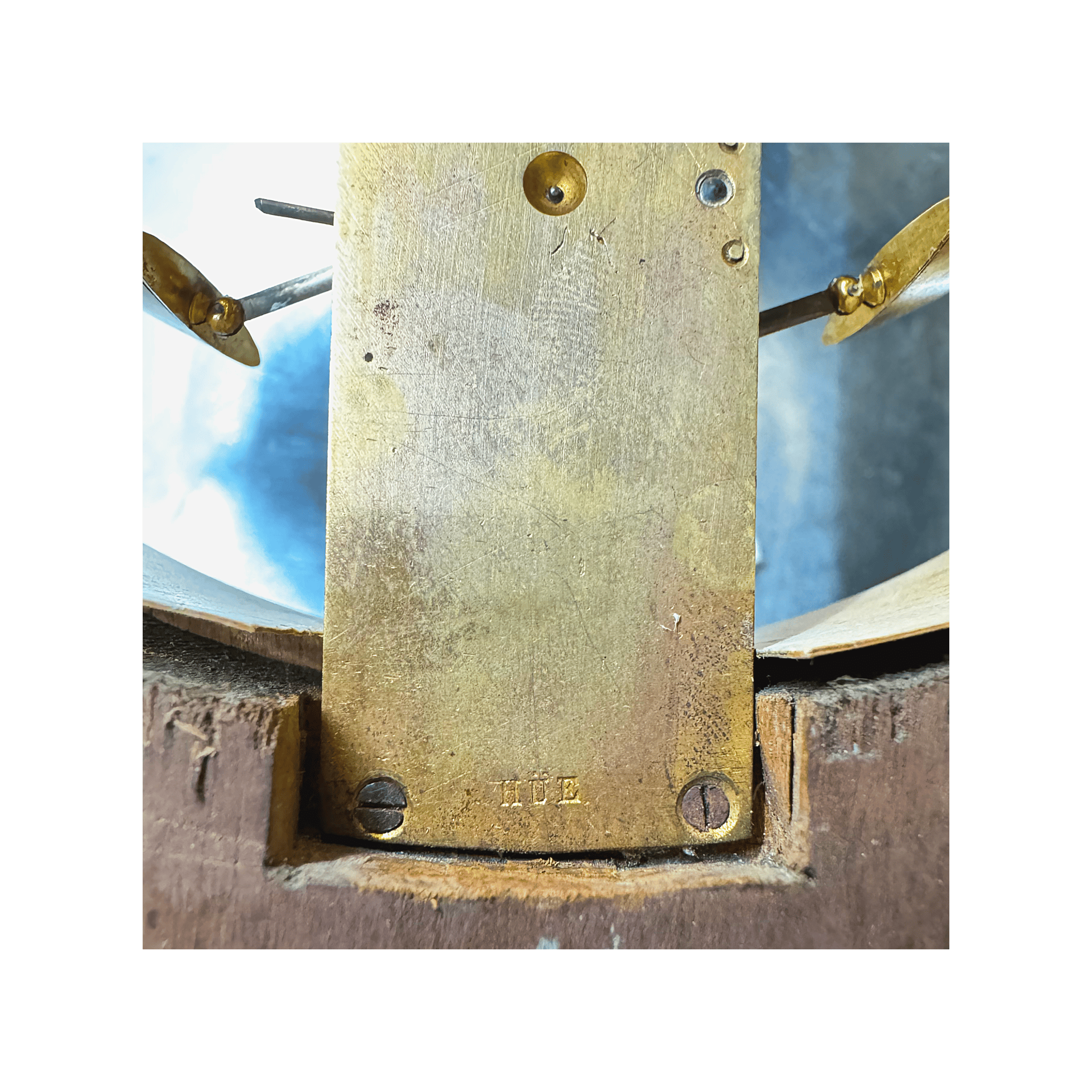

The movement is built on a vertical brass plate set into a recess in the case. The lower part of the plate is stamped HÜE. Hüe worked for Richard, the licensed maker of Bourdon barometers, from about 1876. He began producing instruments under his own name around the 1880s and continued until production ended in 1914–1916. Unlike Richard's tubes, Hüe's are reported to have no internal steel compensating strip. Temperature compensation in his instruments was apparently achieved by residual gas pressure inside the tube, and the pointers of these barometers are noticeably more responsive.
This barometer brings together the French scientific-instrument tradition and Dutch domestic taste of the last third of the 19th century. A Bourdon-system movement from the Paris workshop of Hüe is set in a restrained ebonised case with a carved acanthus crest and fitted with a Dutch-language dial bearing the name of an Amsterdam retailer. The surviving locking and calibration keys, the open dial that shows the movement at work, and the maker's stamp on the plate make it a complete record of the short but inventive era of tube-type metallic barometers, which gave way entirely to the aneroid early in the 20th century.
