This vintage Analog Depth Gauge is a classic example of Italian instrument-making from the golden age of recreational and professional scuba diving. This is a compact wrist-worn mechanical depth gauge produced by the Italian company Mega Sport Srl around 1977. The model featuring the central logo on the dial became one of the most recognizable representatives of the “golden era” of analog diver instruments. In those years, when digital electronics were only just emerging, devices like this enabled divers to accurately determine depth relying solely on the laws of physics and pure mechanics. Hydrostatic pressure of water (atmospheric pressure plus the pressure of the water column) acts on the sensitive element, and the instrument converts a microscopic deformation into a clear needle reading — a far from trivial task that required precise calibration and reliable materials.

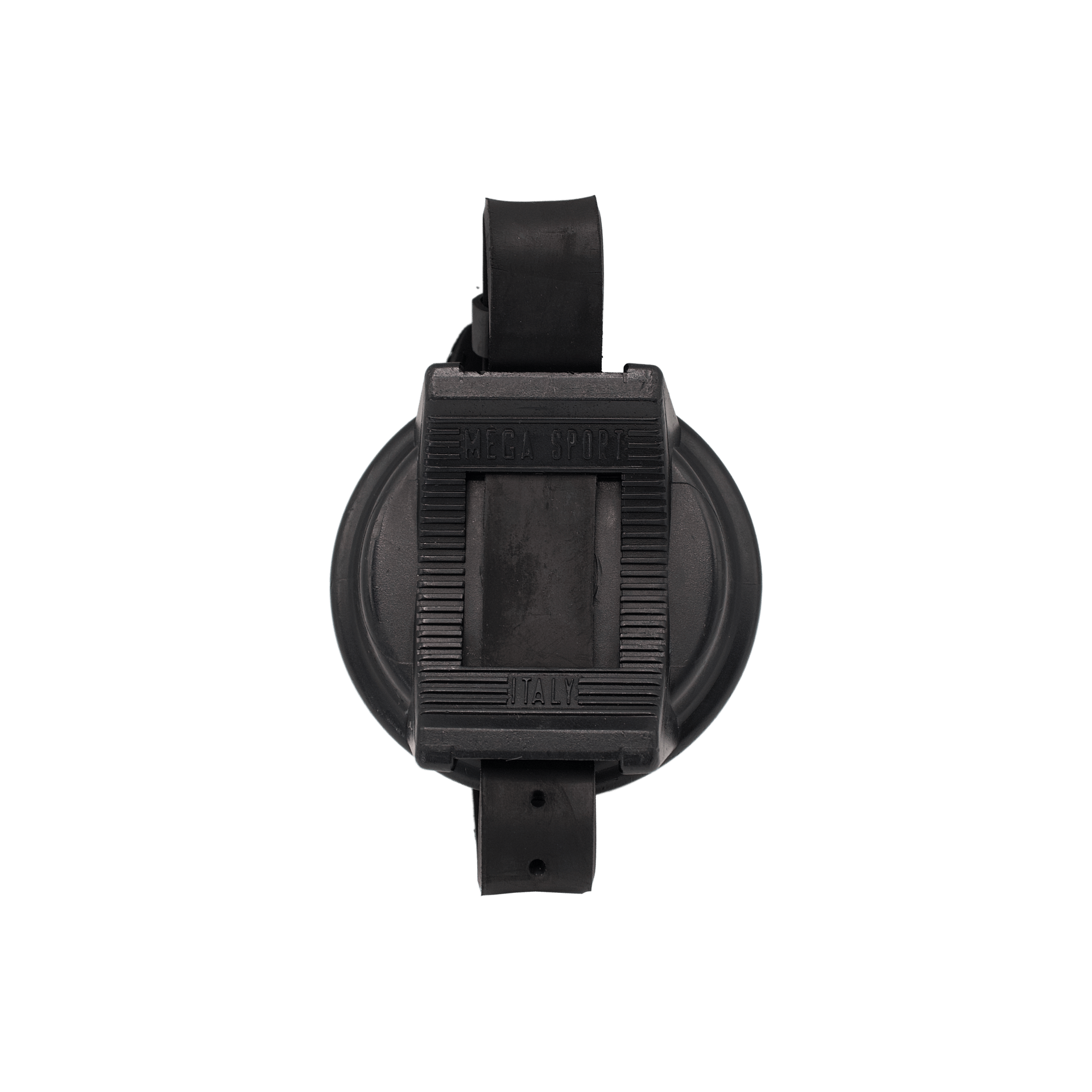

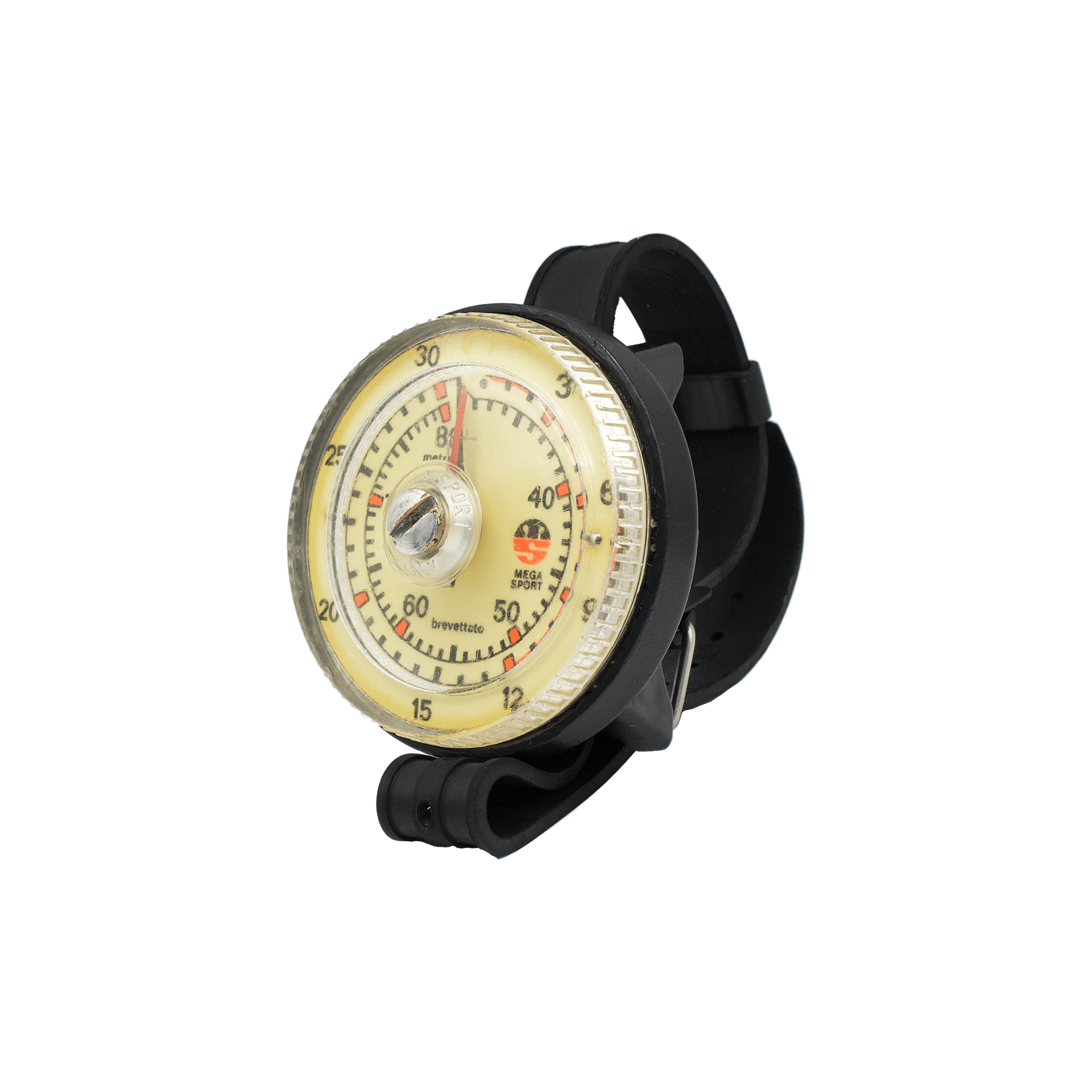

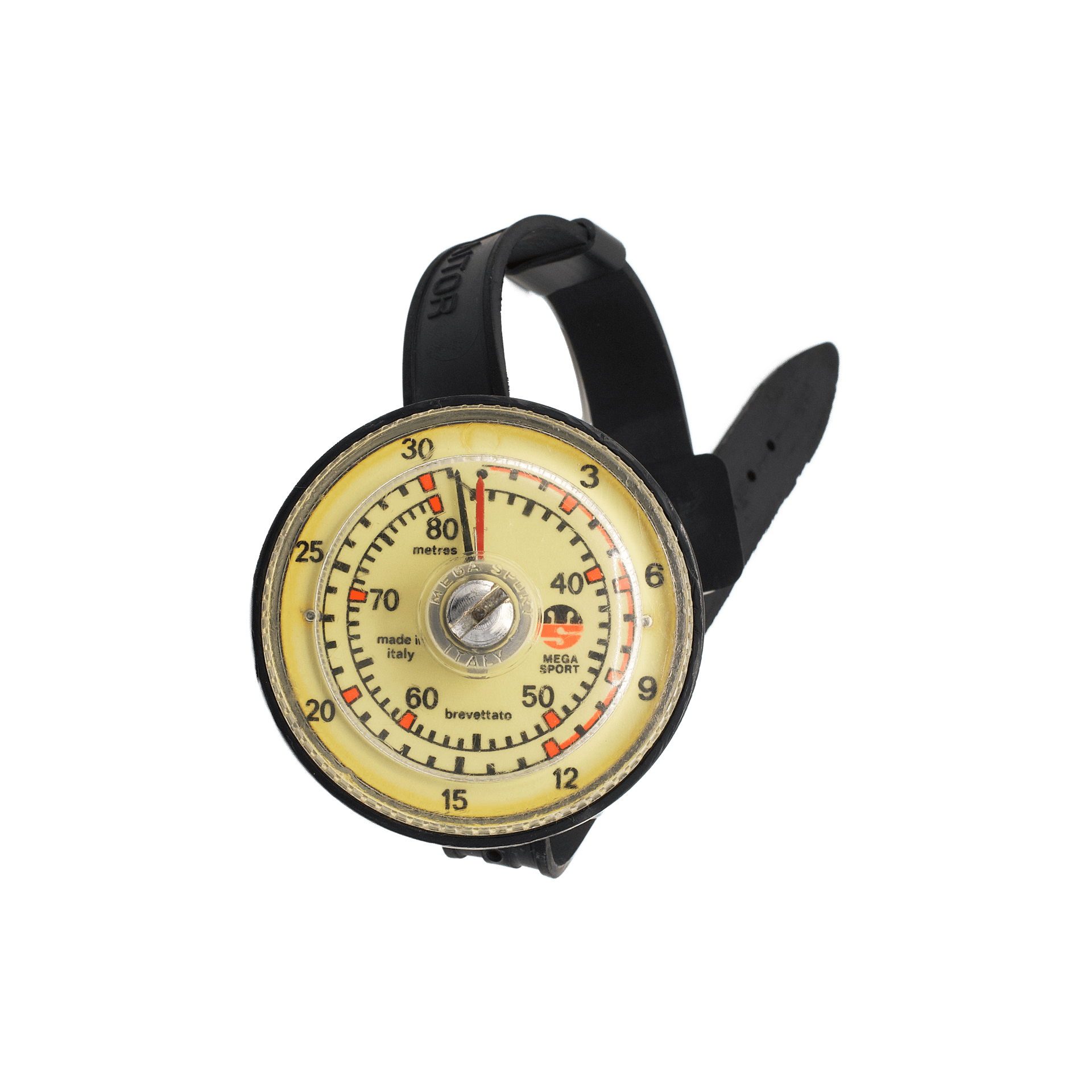

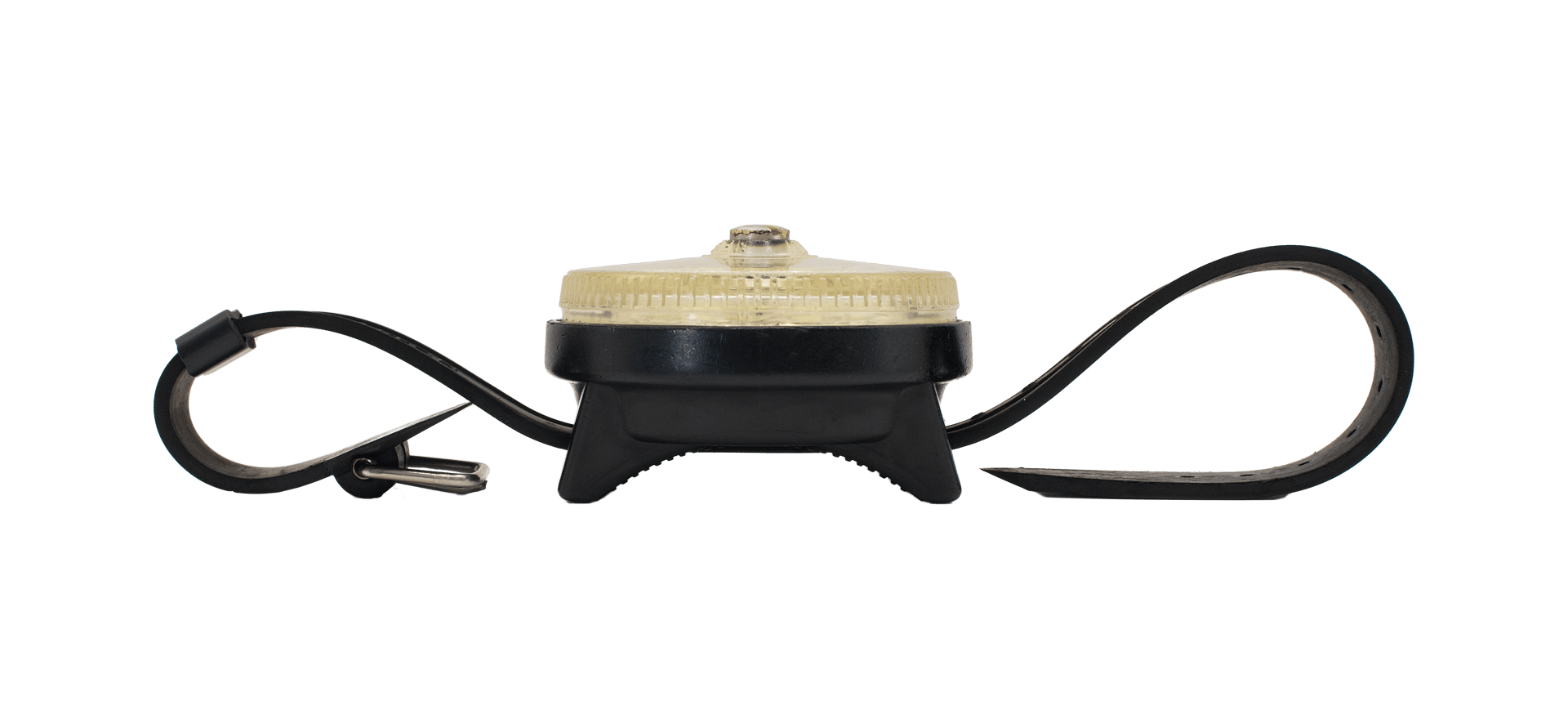

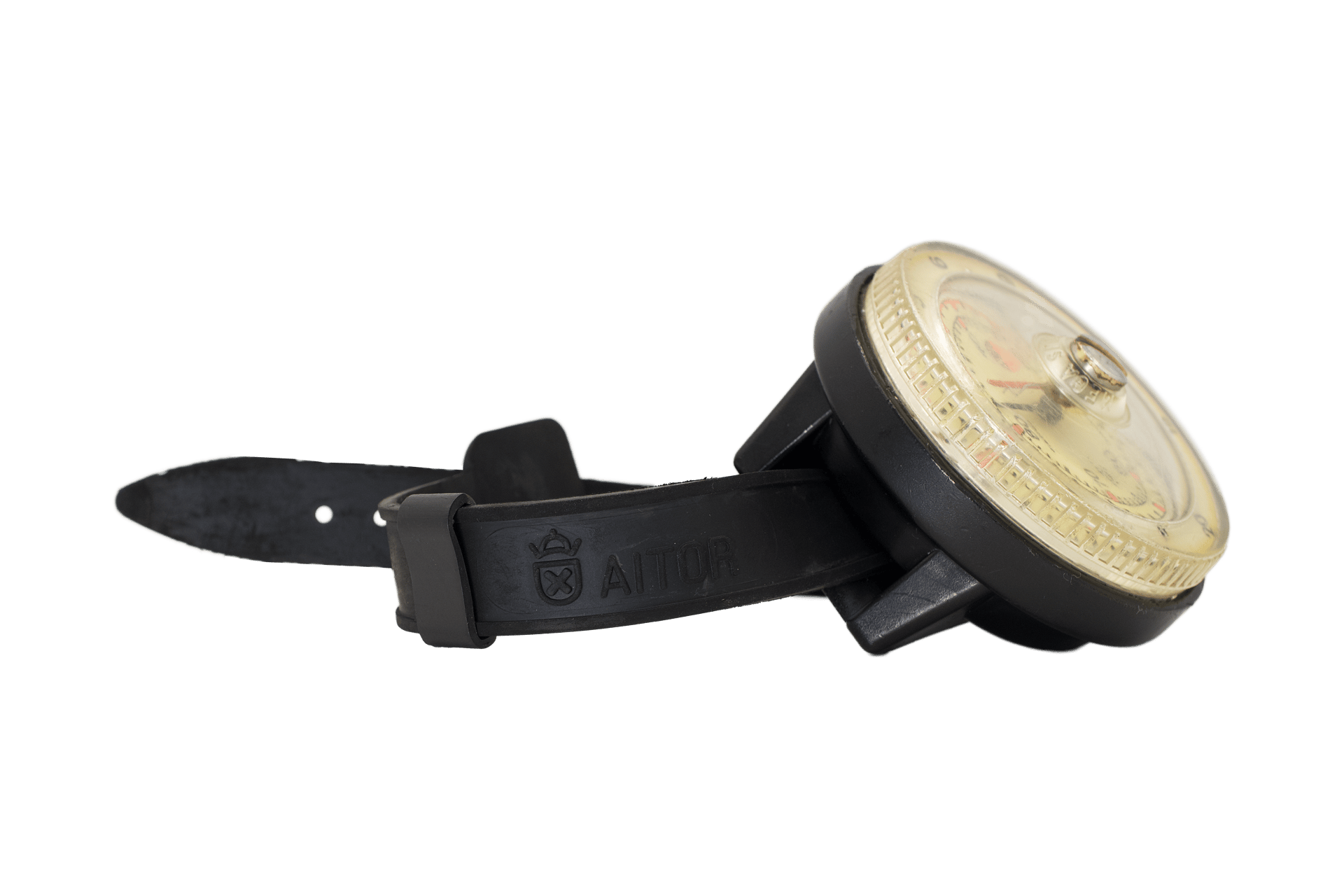

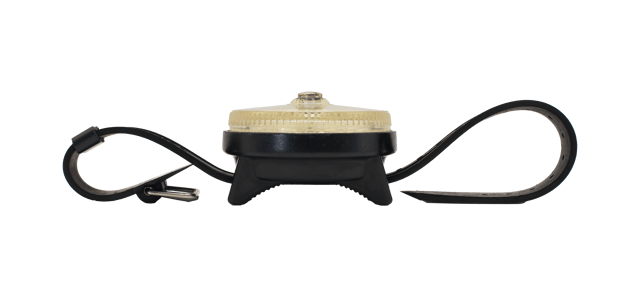

The instrument’s case is executed in the characteristic 1970s “funk style”: massive, round, approximately 70 mm in diameter, with a black plastic (polycarbonate) bezel and a ribbed Plexiglas crystal that not only protects the dial from scratches and pressure but also creates a sense of volume. The strap is the original black rubber (neoprene) bracelet with a metal clasp and buckle, on which the logo of the Spanish OEM manufacturer Aitor is clearly embossed: a shield with a crown and a stylized “X” inside, accompanied by the inscription “AITOR”. In the 1970s Aitor specialized in supplying rubber and metal components for European diving brands (including Mega Sport, Cressi, and Mares). Such straps were prized for their elasticity, resistance to seawater, and durability — many 1977 examples still retain their original suppleness.

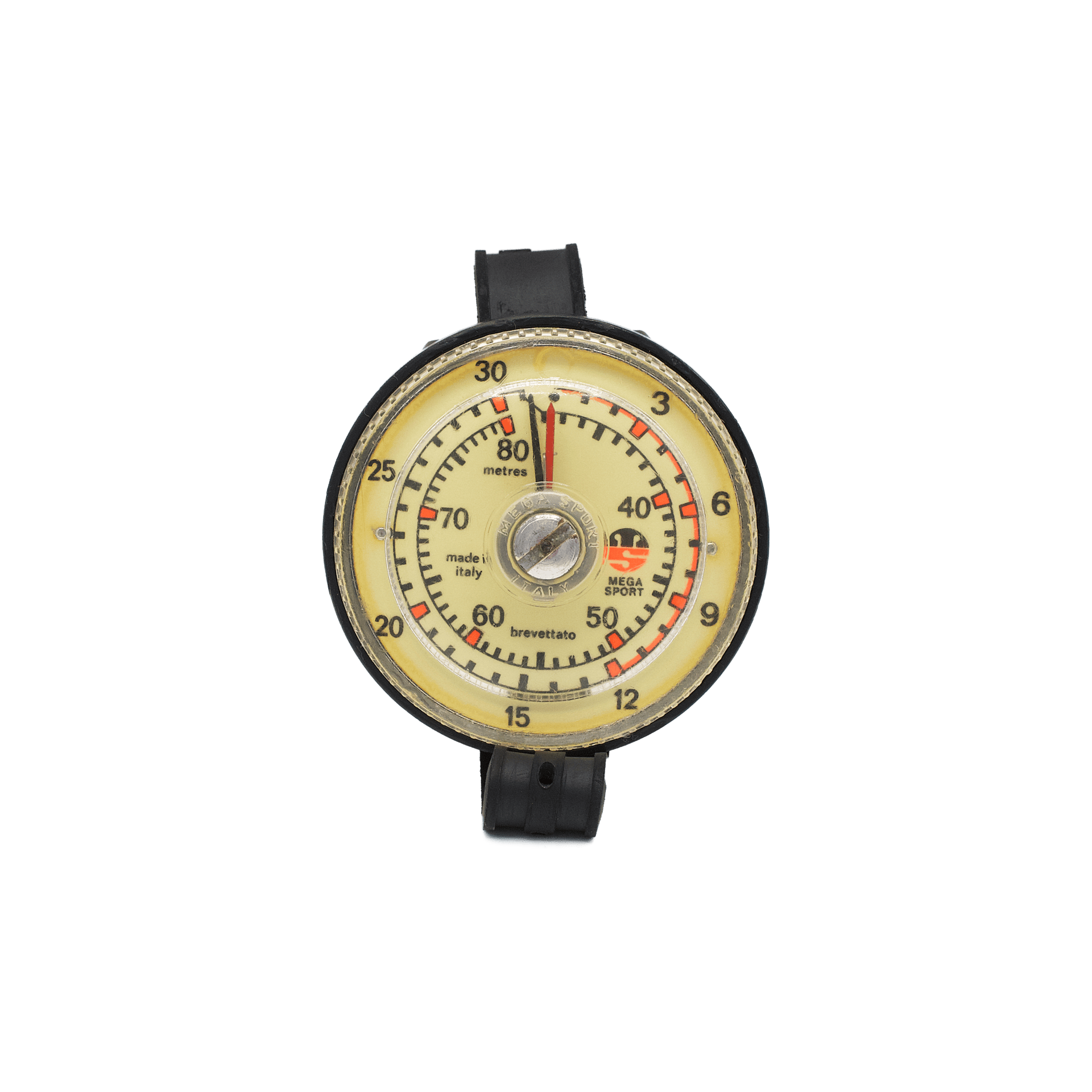

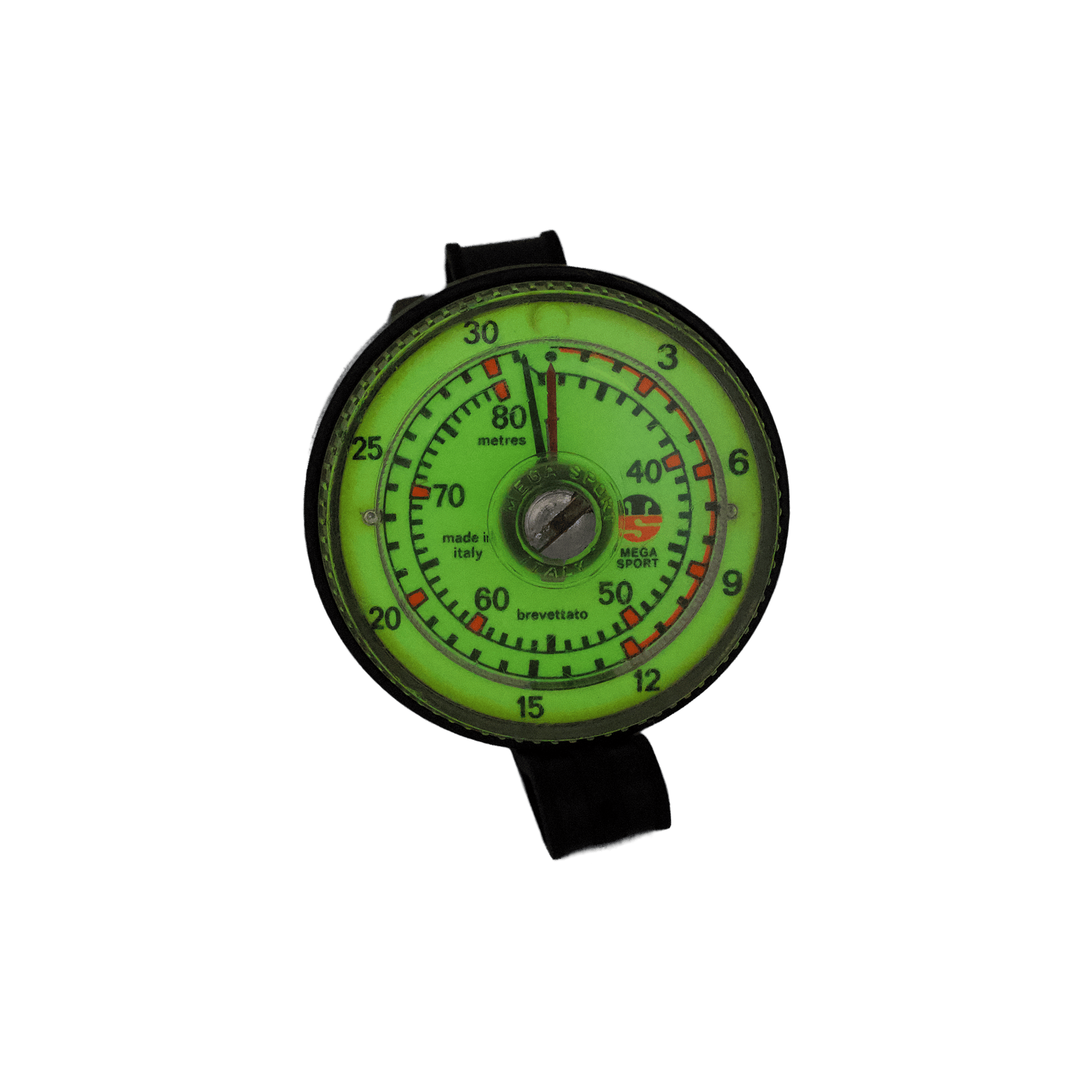

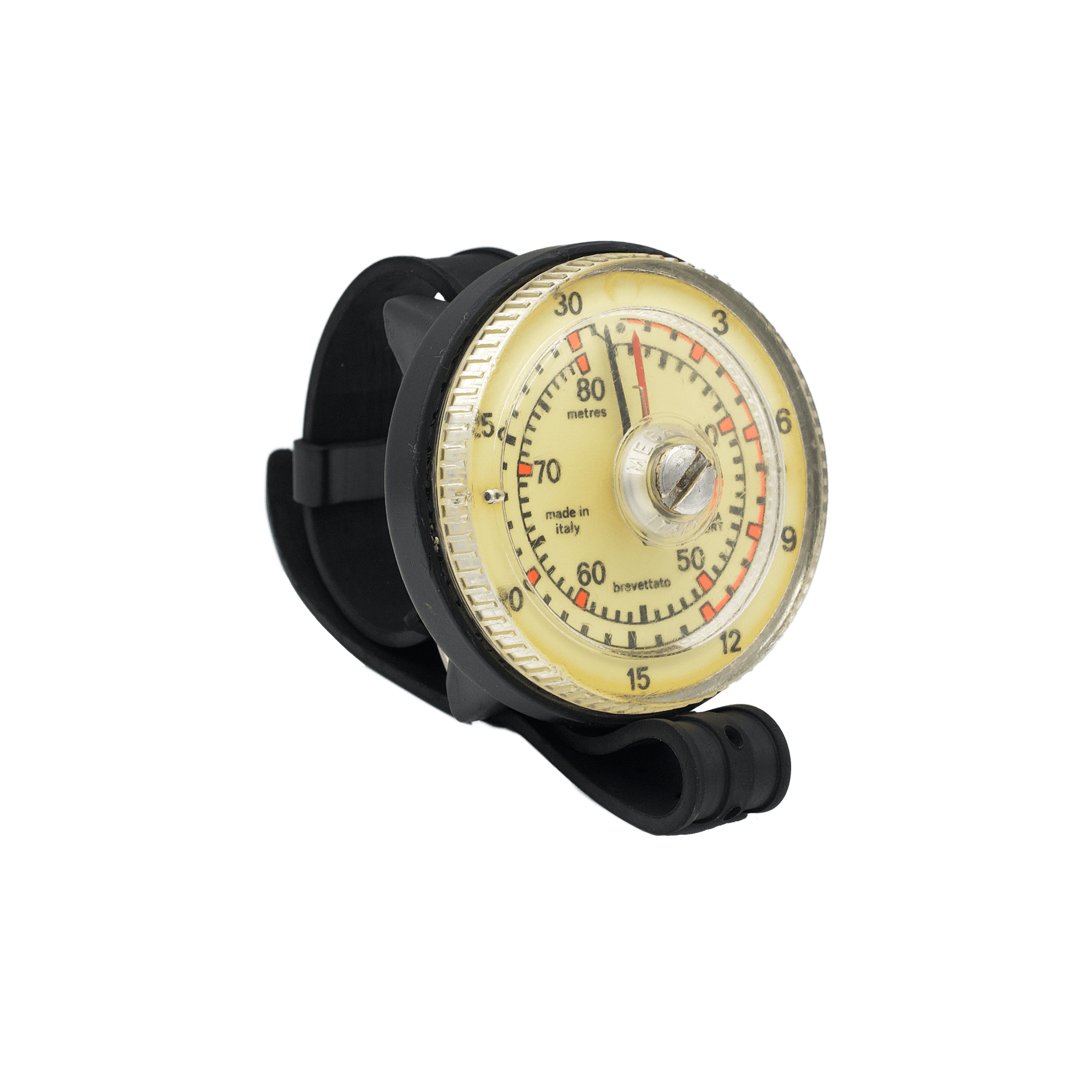

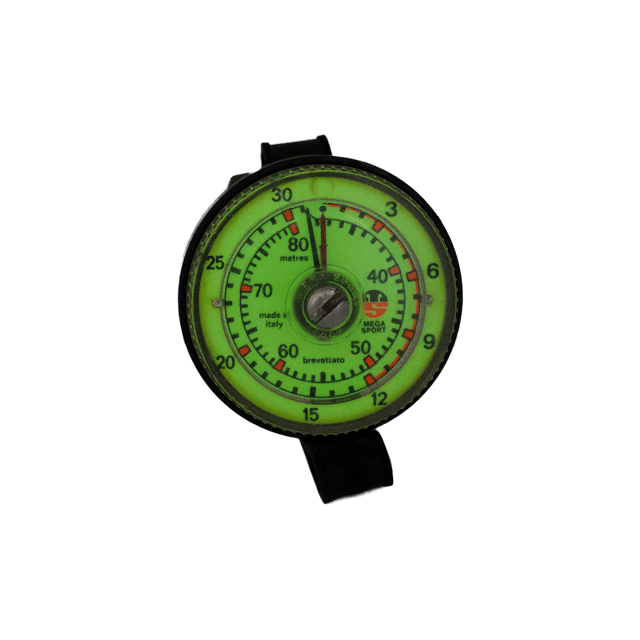

The dial is luminescent, creamy-yellow in tone (slightly aged and yellowed over time), with a parabolic depth scale from 0 to 80 meters. The parabolic (pseudo-logarithmic) marking is not a linear scale but a specially calculated curve that is compressed at greater depths and expanded at shallow ones (0–15 m). This design was chosen deliberately: at shallow depths, where pressure changes are most critical for decompression and where the majority of dives occur, the needle moves in the most informative and noticeable way. The scale is executed in two concentric circles: the outer one with large numerals and divisions (red danger markers at 0–12 m), the inner one with finer markings for precision. The inscriptions on the dial are concise and functional: “MEGA SPORT” (with the colored logo — a black-and-red stylized shield), “made in Italy”, “brevetato” (patented — a reference to the protected Italian design), and the measurement system “metres”.

The main indicating hand is black. There is also an additional massive red hand serving as the zero marker. Zero reset or precise zero calibration is performed via the large nickel-plated central screw.

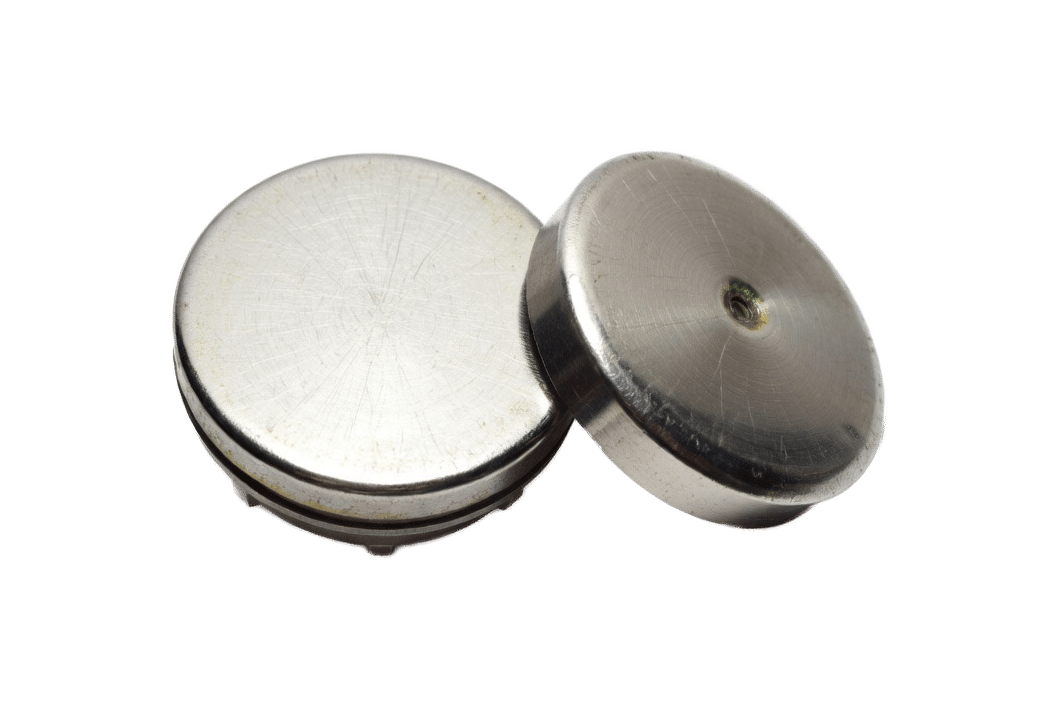

The heart of the instrument is a dry-type diaphragm/membrane mechanism. Unlike later Mega Sport models, where the diaphragm was made of beryllium copper (beryl-copper), this 1977 example uses stainless steel. The diaphragm is a thin (0.1–0.5 mm) flat disc rigidly clamped around its periphery between the case and the back cover. The inner chamber is completely dry, filled with air at atmospheric pressure (hermetically sealed). When submerged, external hydrostatic pressure increases (approximately 0.1 bar per meter of depth), and the diaphragm elastically deflects inward by fractions of a millimeter (typically a maximum of 0.5–2 mm).

To prevent plastic deformation or rupture, the design incorporates a concave stop surface against which the diaphragm presses with its entire area in case of overload — a solution described in detail in the closely related American patent US8171799B2 (application US20100319459A1, 2010, inventor Nicolas Rebeaud, assignee The Swatch Group Research and Development Ltd). Although the patent is later, it precisely describes the operation of similar diaphragm depth gauges: “pressure sensor with a diaphragm” achieving high accuracy through elastic deformation and mechanical transmission.

The transmission mechanism is simple and reliable: a spindle-pusher (spacer) is attached to the center of the diaphragm and bears against a probe or lever. The latter rotates the central arbor (shaft), which is connected via a toothed sector and pinion to the hand. The microscopic deflection of the diaphragm is converted into a 270–360° rotation of the hand. This is a classic mechanical transmission that requires no liquid inside the instrument.

For comparison: the Mega Sport diaphragm mechanism had a clear advantage over the two other classic types of analog depth gauges. The Bourdon tube is a brass tube curved into a spiral or arc that tends to straighten under pressure; motion is transmitted through a system of levers. It is robust at greater depths but less sensitive at shallow ones and prone to clogging (in open designs). The aneroid capsule (as in barometers) is a corrugated metal box with vacuum inside that compresses or expands — in diving it was less common due to lower accuracy underwater. The diaphragm type (as in this instrument) excelled in sensitivity at 0–15 m, compactness, and impact resistance, although the scale was nonlinear.

Modern analogs often replace the dry air chamber with an oil-filled or water-filled one (oil-filled gauges). The liquid dampens vibrations, protects the mechanism from corrosion, and smooths temperature fluctuations, but adds inertia to the hand. Mega Sport also experimented with such solutions in the 1980s–2010s, but the 1977 model under consideration is a pure “dry” classic. The operation of the depth gauge is based on Boyle-Mariotte’s law: at constant temperature, the product of pressure and volume of a gas is constant (P₁V₁ = P₂V₂). Although in a dry diaphragm depth gauge the air in the chamber does not change volume substantially, the law explains the very principle of hydrostatic pressure: as depth increases, external pressure rises, the diaphragm deflects, and the internal air “cushion” resists it.

The specific measurement process is as follows: when the depth gauge is submerged to a certain depth, the diaphragm elastically bends under the pressure differential between the external water and the internal air chamber. The pressure sensor (diaphragm) detects this deflection. The mechanical transmission, arranged so as to produce an almost linear movement of the hand in relation to the change in pressure, transmits the force through the spindle and levers to the central arbor. The hand, by means of the gear train, rotates proportionally to the diaphragm deflection and thus to the depth. On ascent, pressure decreases — the diaphragm returns to its original position thanks to its own elasticity.

Today such instruments are no longer just functional tools but true artifacts of an era. The analog charm of Italian 1970s depth gauges is a tangible link to the golden age of diving, when accuracy depended on mechanics rather than batteries. Mega Sport “Logo” models and similar ones are actively found at auctions, where they are valued for their authenticity, reliability, and “vintage appeal”. The Mega Sport depth gauge is a rare and highly sought-after specimen that continues to function almost half a century later, reminding us how elegantly engineers of the past solved tasks that today seem trivial.
